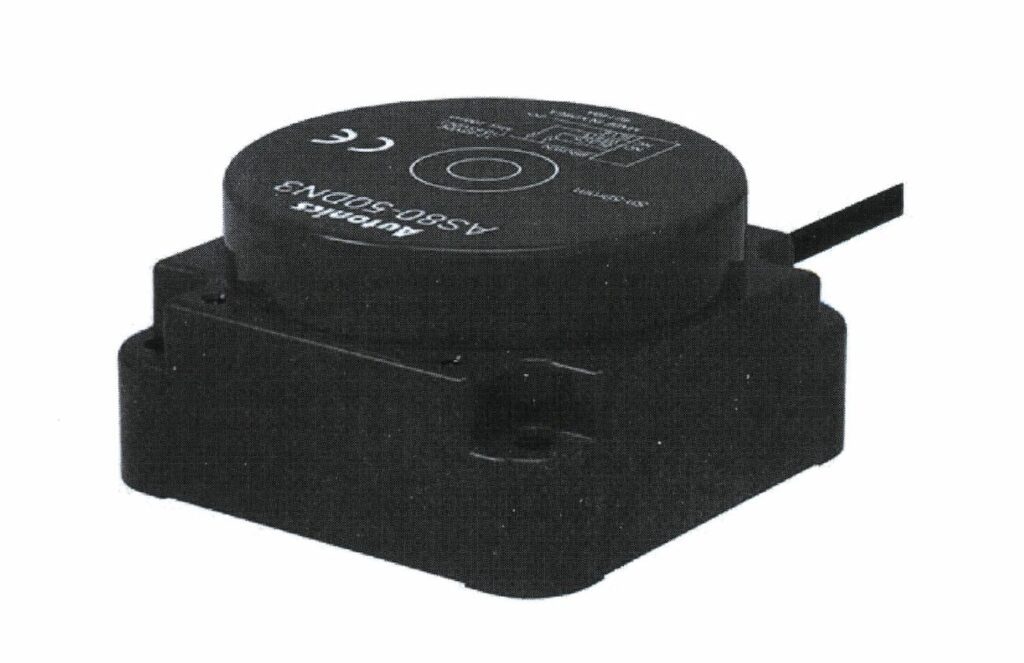

Autonics AS Series Square Inductive Long-distance Proximity Sensor Switch (DC-4-Wire-Type)
Deal Score0
2025/7/4 Update
Autonics AS Series Square Inductive Long-distance Proximity Sensor Switch (DC-4-Wire-Type)
— Wide power supply voltage range: 12-48 VDC (Operating voltage range: 10-65 VDC), Built-in power and operation indicators, Normally Open + Normally Closed simultaneous output
— Wide power supply voltage range: 12-48 VDC (Operating voltage range: 10-65 VDC), Built-in power and operation indicators, Normally Open + Normally Closed simultaneous output
Autonics AS Series Square Inductive Long-distance Proximity Sensor Switch (DC-4-Wire-Type)
RFQ Now For 10% Off!
Technical Features
Products Specifications
Mounting method: Standard type / Top sensing type
| Property | Specification |
|---|---|
| Mounting method | Top sensing type |
| Model | AS80-50D■ |
| Sensing face length | 80 mm |
| Sensing distance | 50 mm |
| Setting distance | 0 ~ 35 mm |
| Hysteresis | ≤ 15% of sensing distance |
| Standard target: Iron | 150 × 150 × 1 mm |
| Response frequency 01) | 30 Hz |
| Temperature influence | Within ±10% of sensing distance at 20°C ambient temperature |
| Indicator | Power indicator (Green), Operation indicator (Yellow) |
| Certification |  |
| Body weight | ≈ 470 g |
- The response frequency is an average value. The measurement conditions are: using the standard sensing target, the distance to the target is twice the size of the standard sensing target, and the setting distance is 1/2 of the sensing distance.
| Power supply voltage | 12-48 VDC (ripple P-P: ≤ 10%), Usable voltage range: 10-65 VDC |
| Current consumption | ≤ 20 mA |
| Control output | ≤ 200 mA |
| Residual voltage | ≤ 2 V |
| Protection circuit | Surge protection circuit, output short-circuit overcurrent protection circuit, reverse polarity protection circuit |
| Insulation resistance | ≥ 50 MΩ (500 VDC megger) |
| Insulation type | Double insulation or reinforced insulation (Symbol: ☐) |
| Dielectric strength | 1,500 VAC ~ 50/60 Hz 1 minute |
| Vibration | 10 ~ 55 Hz (period 1 minute) amplitude 1mm X,Y,Z directions for 2 hours each |
| Shock | 500 m/s² (≈ 50 G) X, Y, Z directions 3 times each |
| Ambient temperature | -25 ~ 70°C, storage: -30 ~ 80°C (no freezing, no condensation) |
| Ambient humidity | 35 ~ 95 %RH, storage: 35 ~ 95 %RH (no freezing, no condensation) |
| Protection degree | IP67 (IEC standard) |
| Connection type | Cable outgoing type |
| Cable specification | Ø 5 mm, 4-core, 2 m |
| Conductor specification | AWG 22 (0.08 mm, 60-core), insulation outer diameter: Ø 1.25 mm |
| Material | Case: PC+ABS, Standard cable (black): Polyvinyl chloride (PVC) |

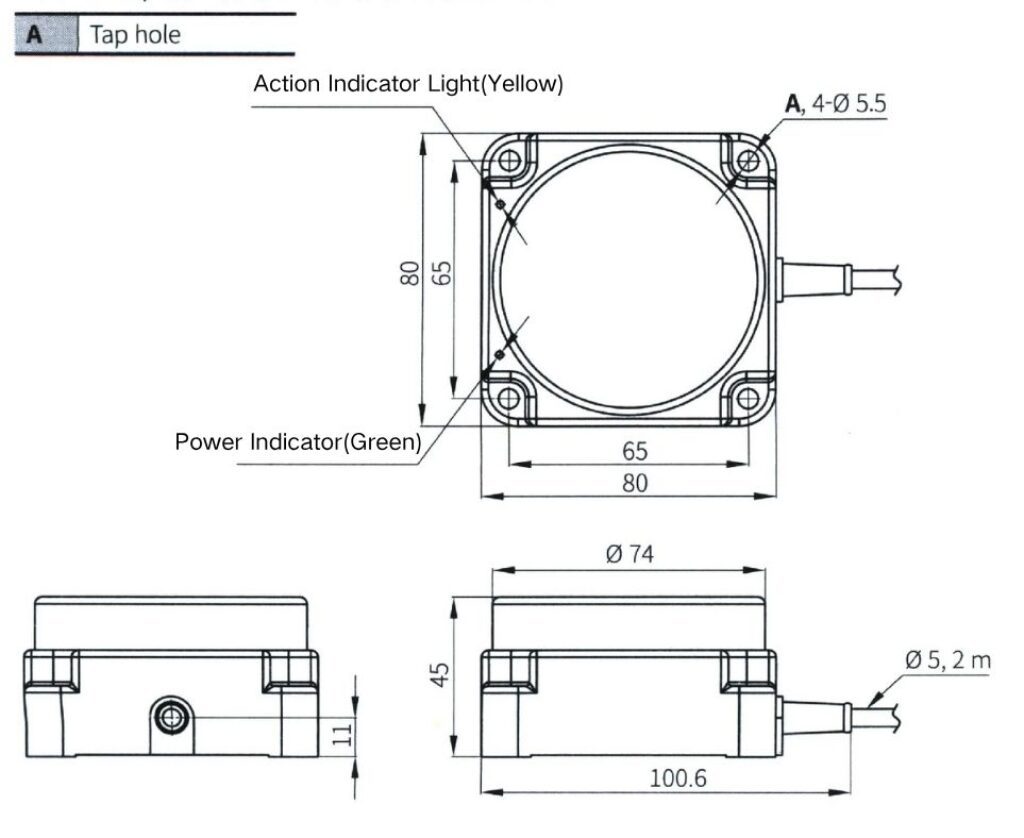

Outline Dimension Drawing
Setting Distance Calculation Formula
The shape, size, and material of the sensing object all affect the sensing distance. For stable detection, please install within 70% of the sensing dzistance.
Influence of Mutual Interference and Surrounding Metal
■ Mutual Interference
As shown in the figure below, when two or more proximity switches are installed face-to-face or side-by-side, malfunctions may occur due to frequency interference. The installation spacing must meet the requirements below.
A = 320mm, B = 320mm
■ Influence of Surrounding Metal
If metal is present around the proximity switch, it may cause malfunctions such as poor resetting. To prevent malfunctions, the installation spacing must meet the requirements below.
d = 150mm, m = 80mm
(Unit: mm)
