Autonics PS Series Square Inductive Proximity Sensor Switch (AC-2-Wire-Type)
— Offer multiple installation types, detection diameters, and distances. They ensure stable operation, with certifications, and come in various wire types and connection specifications.

Autonics PS Series Square Inductive Proximity Sensor Switch (AC-2-Wire-Type)

RFQ Now For 10% Off!

Technical Features

Red indicator light for easy confirmation of operation status

IP67 protection rating (IEC standard)

Products Specifications

Mounting method: Standard type

Model	PSN25-5A■	PSN30-10A■	PSN30-15A■	PSN40-20A■
Sensing face length	25 mm	30 mm	30 mm	40 mm
Sensing distance	5 mm	10 mm	15 mm	20 mm
Setting distance	0 ~ 3.5 mm	0 ~ 7 mm	0 ~ 10.5 mm	0 ~ 14 mm
Hysteresis	≤ 10% of sensing distance
Standard target: Iron	25 × 25 × 1 mm	30 × 30 × 1 mm	45 × 45 × 1 mm	60 × 60 × 1 mm
Response frequency ⁰¹⁾	20 Hz
Temperature influence	Within ±10% of sensing distance at 20°C ambient temperature
Indicator	Operation indicator (Red)
Certification
Product weight (including packaging)	≈ 66 g (≈ 98 g)	≈ 92 g (≈ 161 g)	≈ 92 g (≈ 161 g)	≈ 130 g (≈ 219 g)

The response frequency is an average value. The measurement conditions are: using the standard sensing target, the distance to the target is twice the size of the standard sensing target, and the setting distance is 1/2 of the sensing distance.

Property	Specification
Power supply voltage	100-240 VAC ~ 50/60 Hz, Operating voltage range: 85-264 VAC~
Leakage current	≤ 2.5 mA
Control output	5 ~ 200 mA
Residual voltage	≤ 10 V
Protection circuit	Surge protection circuit
Insulation resistance	≥ 50 MΩ (500 VDC megger)
Dielectric strength	Between all terminals and housing: 1,500 VAC ~ 50/60 Hz for 1 minute
Vibration resistance	10 ~ 55 Hz (1-minute period) amplitude 1mm, 2 hours in each X, Y, Z direction
Shock resistance	500 m/s² (≈ 50 G), 3 times in each X, Y, Z direction
Operating ambient temperature	-25 ~ 70 °C, During storage: -30 ~ 80 °C (no freezing, no condensation)
Operating ambient humidity	35 ~ 95 %RH, During storage: 35 ~ 95 %RH (no freezing, no condensation)
Protection class	IP67 (IEC standard)
Connection method	Cable type
Cable specification	Ø 4 mm, 2-core, 2 m
Core wire specification	AWG 22 (0.08 mm, 60 cores), insulation outer diameter: Ø 1.25 mm
Material	Housing: Heat-resistant ABS, General type cable (black): Polyvinyl chloride (PVC)

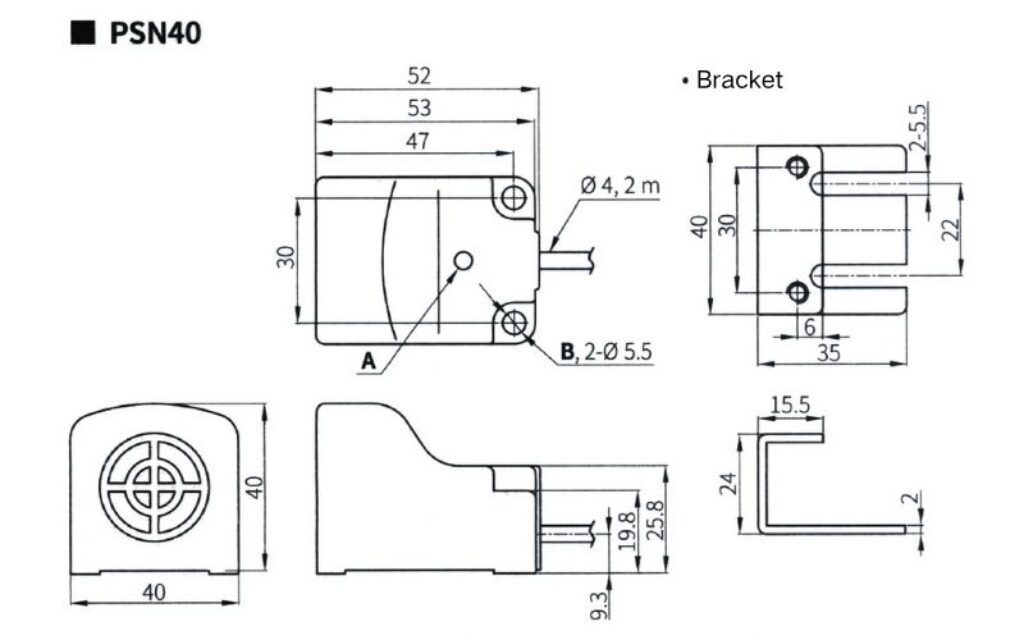

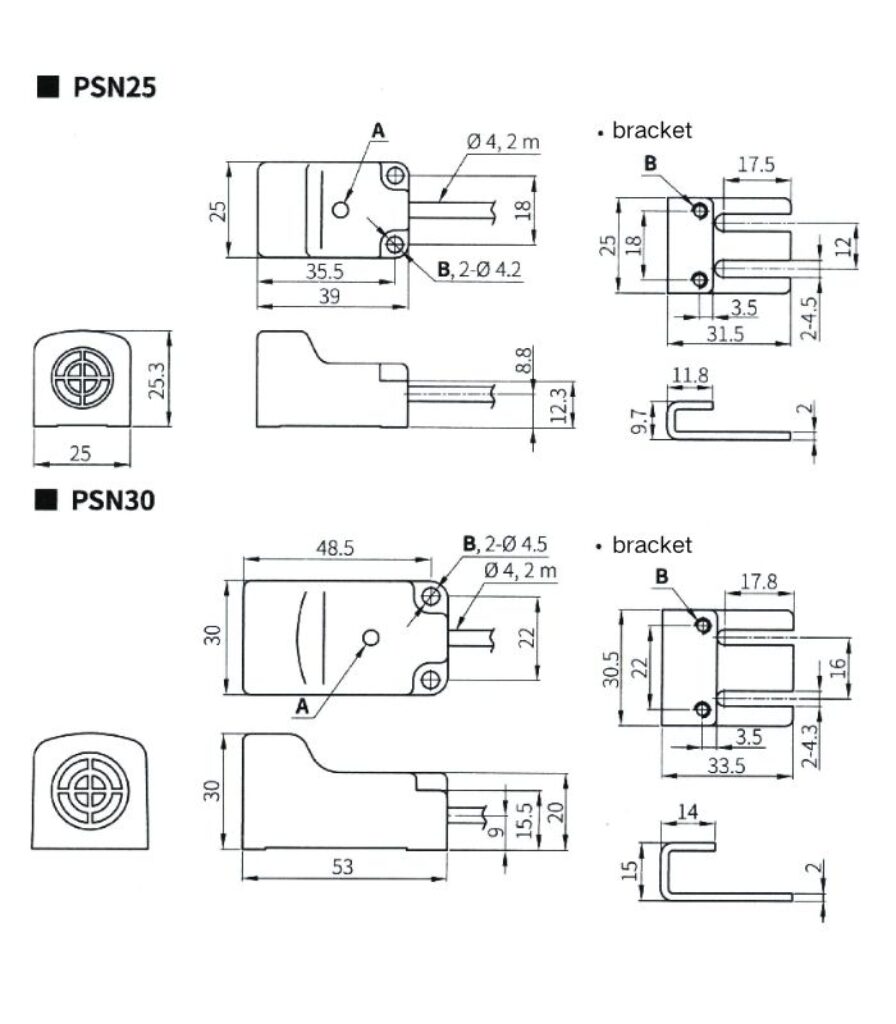

Outline Dimension Drawing

Influence of Mutual Interference and Surrounding Metal

■ Mutual Interference

As shown in the figure below, when two or more proximity switches are installed face-to-face or side-by-side, malfunctions may occur due to frequency interference. The installation spacing must meet the requirements of the table below.

■ Influence of Surrounding Metal

If metal is present around the proximity switch, it may cause malfunctions such as poor resetting. To prevent malfunctions, the installation spacing must meet the requirements of the table below.

(Unit: mm)

Model — Item	PSN25	PSN30-10	PSN30-15	PSN40
A	30	60	90	120
B	40	50	65	70
c	4	5	5	5
d	15	30	45	60
m	20	25	35	35

Safety Precautions/Precautions for Use/Installation Precautions

Safety Precautions

‘Safety Precautions’ are for the correct use of this product to prevent dangerous accidents. Please observe the following.
Unexpected accidents or dangers may occur under special conditions.

Warning: Failure to follow these instructions may result in serious injury or death.

For machines that have a large impact on people and property (e.g., nuclear power control, medical equipment, ships, vehicles, railways, aviation, disaster/theft prevention devices, etc.), be sure to install dual safety protection devices.
- Otherwise, it may cause personal injury, property damage, or fire.
Do not use in environments with flammable or explosive gases, humidity, direct sunlight, radiant heat, vibration, impact, or salinity.
- Otherwise, there is a risk of explosion or fire.
Do not modify the product.
- Otherwise, there is a risk of fire or electric shock.
Do not perform wiring or maintenance work while the power is on.
- Otherwise, there is a risk of fire or electric shock.
When wiring, please confirm the wiring diagram before connecting.
- Otherwise, there is a risk of fire or electric shock.

Caution: Failure to follow these instructions may result in minor injury or product damage.

Please use within the rated specifications.
- Otherwise, there is a risk of fire or product failure.
When cleaning, do not use water or organic solvents. Use a dry cloth to wipe.
- Otherwise, there is a risk of fire or electric shock.
When there is no load, do not connect the power.
- Otherwise, there is a risk of fire or product failure.

Usage Precautions

Please observe the contents of these precautions during use. Failure to do so may result in unforeseen accidents.
The 12-24 VDC power supply voltage must be supplied by an insulated and voltage/current limited power source or a Class 2, SELV power supply device.
Please use this product 0.5 seconds after powering on.
To prevent surges and inductive interference, please route wiring separately from high-voltage and power lines, and keep the cable length as short as possible. Do not use near machines (radio transceivers, etc.) that generate strong magnetic fields and high-frequency interference.
If installed near equipment that generates strong surges (motors, welders, etc.), please use a diode or varistor to eliminate the surge.
If the product surface is scratched with a hard object, the PTFE coating will be stripped off.
This product can be used under the following environmental conditions.
- Indoors (UL Type 1 Enclosure)
- Altitude of 2,000m or less
- Pollution Degree 3
- Installation Category II

Installation Precautions

Please install correctly according to the operating environment, location, and rated specifications.
Do not apply impact with hard objects or forcefully bend the cable outlet, as this may damage the waterproof function.
For Ø 3.5 mm cable, do not apply more than 25N of force. For Ø 4 mm cable, do not apply more than 30N of force. For Ø 5 mm cable, do not apply more than 50N of tensile force. A broken cable may cause a fire.
When extending the cable, please use AWG22 or thicker cable, and the maximum length must not exceed 200 m.
