IFM ASI AC2315-2317 Series Valve Position Sensor

Sensor, Position Sensor, Valve Position SensorIFM

Deal Score0

2025/7/4 Update

Industrial Automation | DC
— This solution can remotely indicate the valve status and can be connected to higher-level bus systems via DeviceNet, Profibus, and Ethernet. A single AS-i master station can connect up to 62 quarter-turn valve feedback devices and 62 solenoid valves.

IFM ASI AC2315-2317 Series Valve Position Sensor

Technical Features

AS-i (Actuator Sensor Interface) connects the entire valve system to the network.

Non-contact detection of the open and closed positions of quarter-turn valves.

An AS-i network can connect up to 62 quarter-turn valves and 62 solenoid valves.

Can be connected to DeviceNet, Profibus, and Ethernet.

Uses a 2-wire cable to replace parallel wiring, simultaneously transmitting data and power.

Products + Accessories Selection:

Type	Dimensions (mm)	Sensing Range (mm)	Material	Power Supply (V DC)	Protection Class	Switching Freq. (Hz)	Max. Load Current (mA)	Order No.
AS-i connection・M12 connector・2 inputs
	55 x 60 x 35	4 nf	PBT (Pocan)	26.5…31.6	IP67	–	–	AC2315
AS-i connection・M12 connector・2 inputs / 1 output・Output function transistor PNP
	55 x 60 x 35	4 nf	PBT (Pocan)	26.5…31.6	IP67	–	100	AC2316
AS-i connection・M12 connector・2 inputs / 2 outputs・Output function transistor PNP
	55 x 60 x 35	4 nf	PBT (Pocan)	26.5…31.6	IP67	–	100	AC2317

Select the valve cover kit

Select the valve cover kit according to your ISO Namur actuator. The X and Y dimensions are the positions of the actuator mounting holes. The Z dimension is the height of the actuator shaft.

Conventional Sensor The cable and the mounting screw are on opposite sides of the housing. If the cable is pulled the sensor may become dislodged 4

Dimensions XxYxZ (mm)	Valve Cover Type	Valve Cover Mounting Screw Thread	Sensor Mounting Screw Thread	Order No.
80 x 30 x 20	Basic model	M6	10-24, 10-32, M5	E11257
80 x 30 x 20	Adjustable model	M6	10-24, 10-32, M5	E11256
130 x 30 x 30	Basic model	M6	10-24, M5	E17328
130 x 30 x 50	Basic model	M6	10-24, M5	E17329

DIN Connector Cable

Description	Order No.
DIN A (18 mm) to M12 Micro DC connector cable, 0.3 m	E11416
DIN B (10 mm) to M12 Micro DC connector cable, 0.3 m	E11421
DIN C (8 mm) to M12 Micro DC connector cable, 0.3 m	E11426

What’s More…

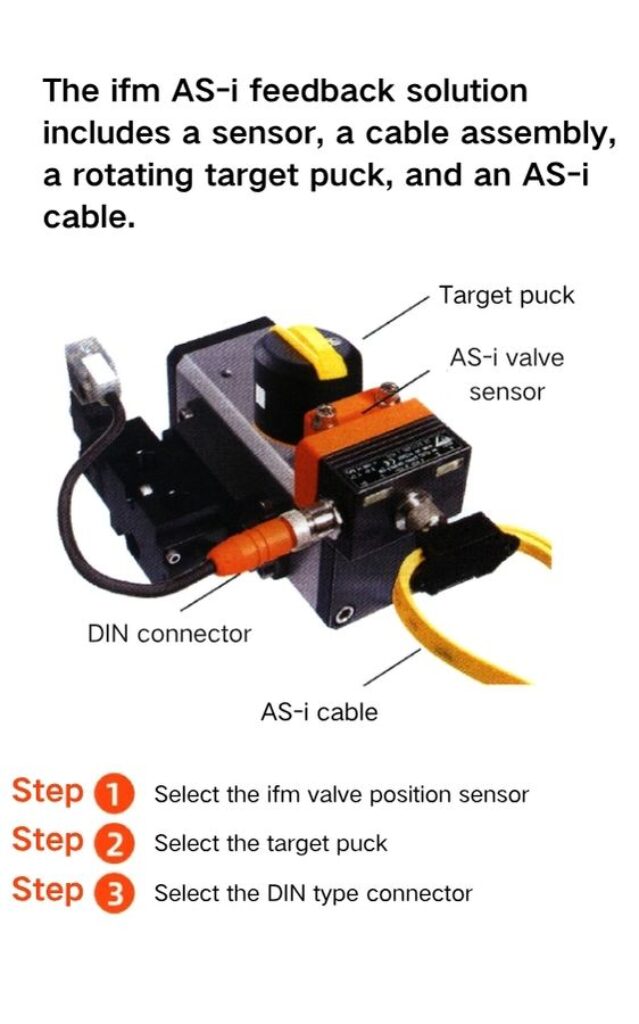

The ifm AS i feedback solution includes a sensor a cable assembly a rotating target puck and an AS i cable

Benefits Introduce In Detail

Integrated AS-i network connection for pneumatic valves

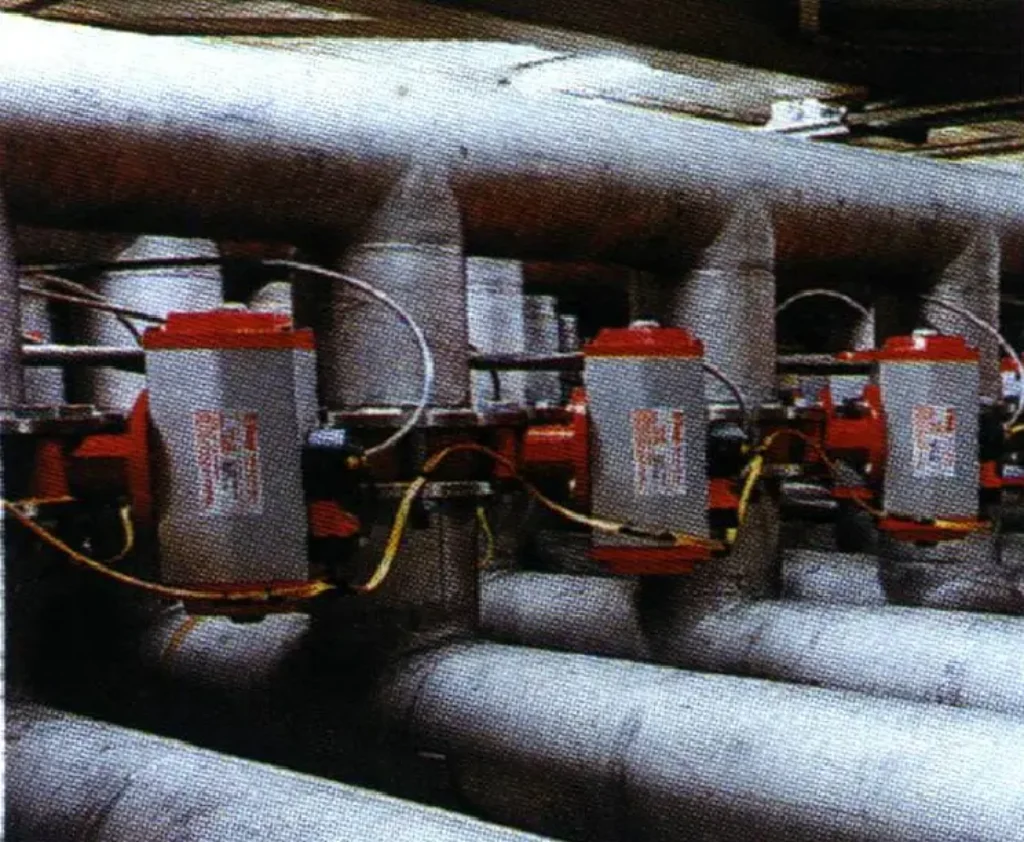

Tank farms and valve-manifold applications require a large number of feedback devices. These devices and the monitoring of valve positions are connected to a PLC. With the increasing use of valves and the extreme compression of usable space in industrial plants, wiring has become increasingly time-consuming, and troubleshooting has become more and more difficult. To reduce wiring, a simple solution is to implement an AS-i network system.

AS-i uses only one 2-wire cable to network the entire valve system, thereby completely eliminating bundles of wires. The valve position sensors with AS-i connection can provide an integrated connection for the solenoid valves. A single 2-wire AS-i cable is used to connect to the control device.

This solution can remotely indicate the valve status and can be connected to higher-level bus systems via DeviceNet, Profibus, and Ethernet. A single AS-i master station can connect up to 62 quarter-turn valve feedback devices and 62 solenoid valves.

Connection to higher-level bus systems

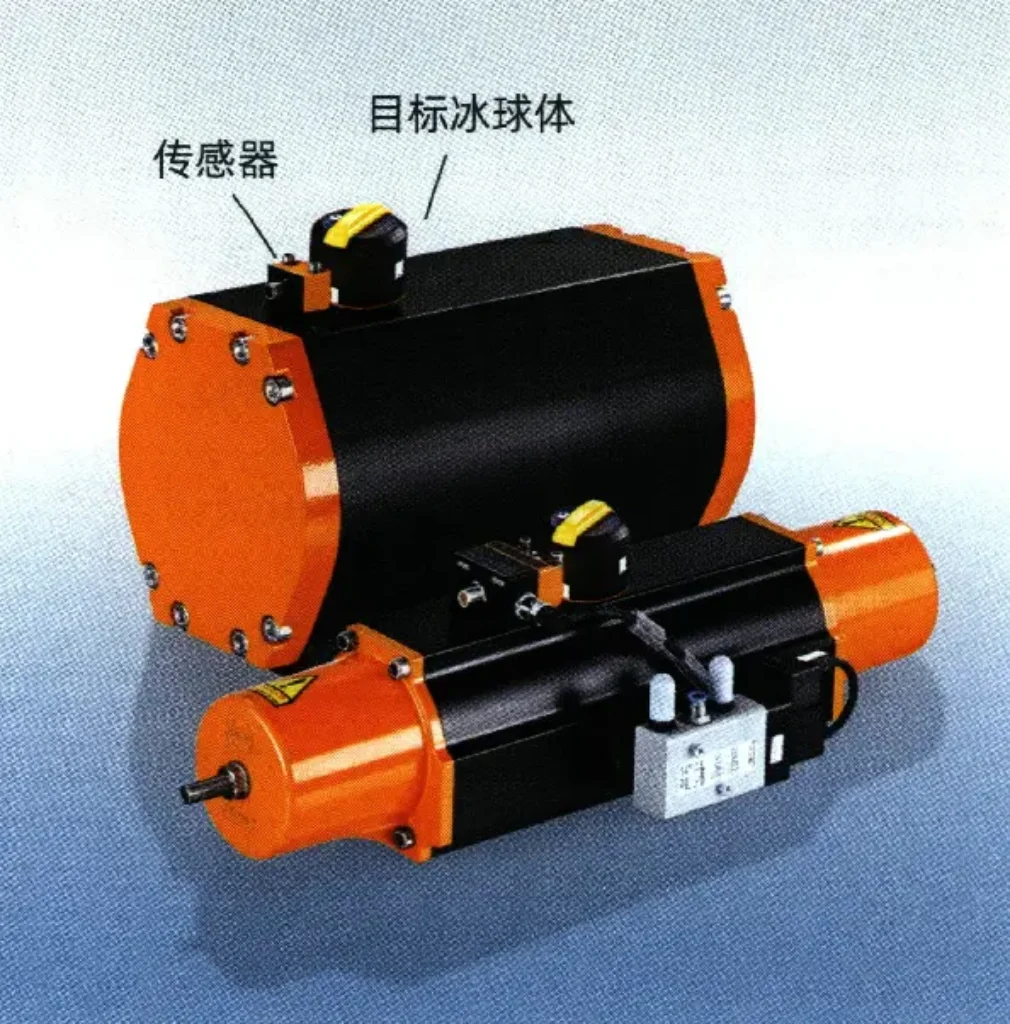

Non-contact detection of valve position
The sensor and target puck feature a compact design, with dimensions only 1/4 the size of a switch box
Uses the output for solenoid valves
Can be mounted on all ISO standard actuators

For more details and products about AS-i networking, please contact us.
