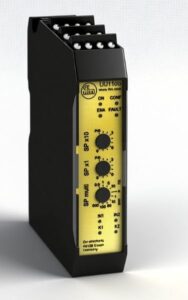

IFM DA1000/DU1000/DD1100 Series Safety Speed Monitor

Deal Score0

2025/7/4 Update

Safety Speed Monitor
— New! ifm offers speed monitors specially developed for safety applications, including models suitable for standstill and overspeed applications. Both models are suitable for rotary and linear motion and can evaluate pulses received from standard PNP sensors.

IFM 1000/DU1000/DD1100 Series Safety Speed Monitor

Technical Features

Provides safe standstill / underspeed and overspeed models

Uses 2 standard sensors as pickup devices

2-channel safety outputs (contacts)

Meets Category 4 PL e and SIL 3 requirements

Compact design, occupies minimal space in the control cabinet

Products + Accessories Selection:

Type	Dimensions	Adjustable frequency range	Safety output	Non-safety output	Order No.
Safety speed monitor – Standstill
	105 x 25 x 100 mm	–	2 x N.O. contacts	1-channel fault output (PNP)	DA102S
Safety speed monitor – Underspeed
	114.5 x 22.5 x 108 mm	0.5…990 Hz	2 x N.O. contacts	1-channel fault output (PNP) 1-channel diagnostic output (PNP)	DU1105
Safety speed monitor – Overspeed
	114.5 x 22.5 x 108 mm	0.5…990 Hz	2 x N.O. contacts	1-channel fault output (PNP) 1-channel diagnostic output (PNP)	DD1105
	114.5 x 22.5 x 108 mm	0.1…99.9 Hz	2 x N.O. contacts	1-channel fault output (PNP) 1-channel diagnostic output (PNP)	DD1115

Specifications:

Property	DA102S	DD110S, DD111S and DU110S
Operating voltage:	19.2…30 V DC	19.2…28.2 V DC
Current consumption:	≤ 200 mA	≤ 125 mA
Input frequency:	≤ 3500 Hz	≤ 2000 Hz
Power-on delay time:	≤ 6 s	≤ 3 s
Contact rating:	6 A	6 A
Operating temperature:	-25…55 °C	-40…55 °C
Protection class:	IP20	IP20
Certification:	EN ISO 13849-1: Category 4 PL e	EN ISO 13849-1: Category 4 PL e
Certification:	IEC 61508: SIL 3	IEC 61508: SIL 3

Benefits Introduce In Detail

Speed Monitors for Safety Applications

New! ifm offers speed monitors specially developed for safety applications, including models suitable for standstill and overspeed applications. Both models are suitable for rotary and linear motion and can evaluate pulses received from standard PNP sensors.

The DA102S speed monitor is the ideal choice for safe standstill applications. A common application is to ensure that doors remain closed until the tool has stopped moving. When the target speed is below the switching point, 2 OSSD outputs are activated.

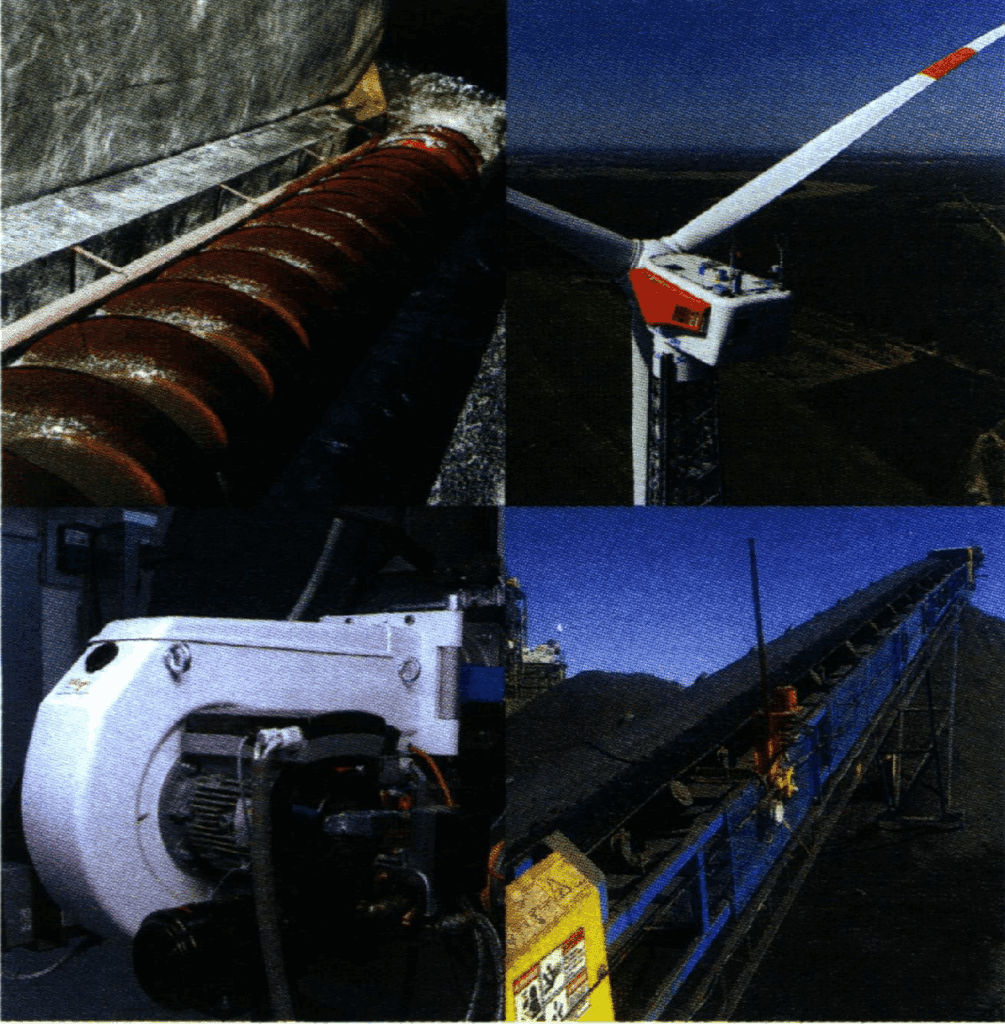

The DD110S and DD111S speed monitors are specially developed for safety-related overspeed monitoring and are suitable for applications such as disc conveyors and centrifuges. The DD111S is specially designed for the low rotational speeds of wind turbines. Both devices can be easily configured via a rotary switch. When the switching point is exceeded, 2 OSSD outputs are activated.
