IFM DI 5000 Series Speed Monitor For I-O Link

Deal Score0

2025/7/4 Update

M12, M18, M30 tubular and 40 mm rectangular housing｜DC Speed applications
— New Product! The compact speed monitor is a reliable evaluation system that can monitor rotational and linear speed, especially overspeed and underspeed conditions. When the speed exceeds or falls below the customer-programmed setpoint, a digital output is sent.

IFM DI 5000 Series Speed Monitor For I-O Link

Technical Features

A standalone speed monitor evaluates if rotational and linear motion is underspeed or overspeed.

The robust, industry-standard housing is suitable for a wide range of industrial automation applications.

A start-up delay avoids nuisance tripping.

Provides information such as speed, output status, and device status via IO-Link.

Adjustable modes support single, dual, or window output functions.

Products + Accessories Selection:

Dimensions (mm)	Sensing range (mm)	Mounting type	Output	Setting range (imp/min)	Supply voltage (V)	Sensor terminal	Order No.
M12 / L=60	3.5	Flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5027
M12 / L=60	6.5	Non-flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5028
M18 / L=60	7	Flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5029
M18 / L=60	12	Non-flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5030
M30 / L=65	12	Flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5031
M30 / L=65	21	Non-flush	PNP / NPN, N.O. / N.C.	5…24,000	10…30 DC	M12 Micro DC	DI5032
Rectangular 40 x 40 mm	20	Flush	PNP / NPN, N.O. / N.C.	5…9,600	10…30 DC	M12 Micro DC	DI5033
Rectangular 40 x 40 mm	24	Non-flush	PNP / NPN, N.O. / N.C.	5…9,600	10…30 DC	M12 Micro DC	DI5034

Optional Accessories

Type	Description	Order No.
	Snap-on clamp, for M12 mm sensor	E11047
Snap-on clamp, for M18 mm sensor	E11048
Snap-on clamp, for M30 mm sensor	E11049
	Quick-mount sleeve, for M12 mm sensor	E11114
Quick-mount sleeve, for M18 mm sensor	E11115
Quick-mount sleeve, for M30 mm sensor
	L-shaped bracket, for M12 mm sensor	U20301
L-shaped bracket, for M18 mm sensor	U20302
L-shaped bracket, for M30 mm sensor	U20303

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master, for parameter setting and device analysis	E30390
	Memory plug for storing sensor parameters, for easy upload without a PC	E30398

Mating Cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

What’s More:

image 2025 07 22T150908.350 — The speed monitor can be used to detect underspeed conditions in spindle
applications.

Benefits Introduce In Detail

Standalone evaluation system with IO-Link, suitable for speed applications

New Product! The compact speed monitor is a reliable evaluation system that can monitor rotational and linear speed, especially overspeed and underspeed conditions. When the speed exceeds or falls below the customer-programmed setpoint, a digital output is sent. The actual speed of the target can be sent to the controller via IO-Link. The sensor and electronic evaluation unit are integrated into the same compact housing, eliminating the need for other equipment. The compact speed sensor is available in a rich selection of industry-standard housings, including M12, M18, and M30 mm diameter metal tubular housings and cubic housings.

Operating Principle

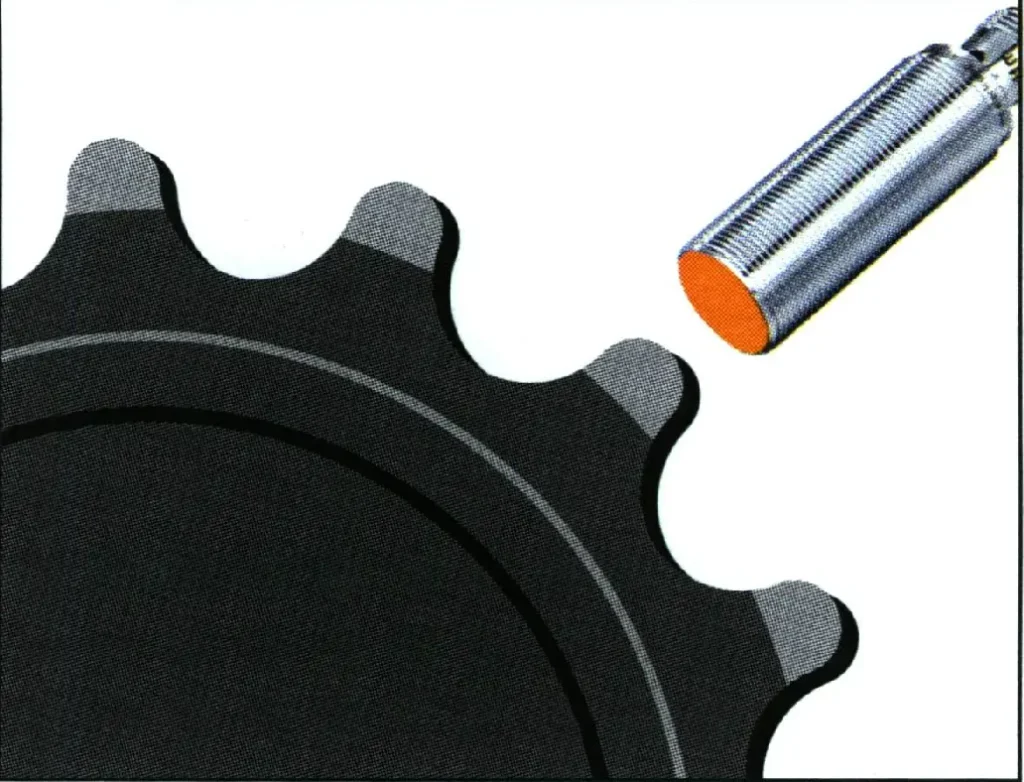

The integrated inductive sensor of the compact speed monitor is attenuated when a metallic object passes the sensing face. The evaluation unit observes the frequency of the target and compares it with a preset switching point. When the frequency is higher or lower than the setpoint, the output state is changed.

Other functions realized via IO-Link:

The actual speed value can be monitored on the controller.
The “Window” function allows for setting 2 outputs, defining a specific machine operating speed range.
2 switching points can be set separately.
The output is selectable (PNP or NPN) as well as normally open or normally closed.
The “Teach” function can suppress background interference.
