IFM GF/GI/GM/GG/ MN700 Series Safety Inductive Sensor

Deal Score0

2025/7/4 Update

M12, M18, M30 tubular and cubic housing｜DC Quick disconnect
— ifm’s safety relays are the ideal choice for connecting electronic and mechanical fail-safe sensors/switches and for use as a two-hand controller.

IFM GF/GI/GM/GG/ MN700 Series Safety Inductive Sensor

Technical Features

Fail-safe inductive sensors do not require special keys or coded magnets for the target, thus shortening installation time and reducing alignment problems.

Multifunctional safety relays are compatible with industry-standard safety devices.

A self-monitoring circuit verifies that the sensor function is correct.

Safety integrity level up to SIL 2 or SIL 3 (in accordance with IEC 61508 standard).

High redundancy against misalignment and tripping.

Products + Accessories Selection:

Housing	Dimensions [mm]	Enabling zone [mm]	Certification	Removal response time	Approach response time	Protection class	Housing material	Order No.
Non-contact, fail-safe inductive sensors for safety applications • 2 x PNP output (OSSD)

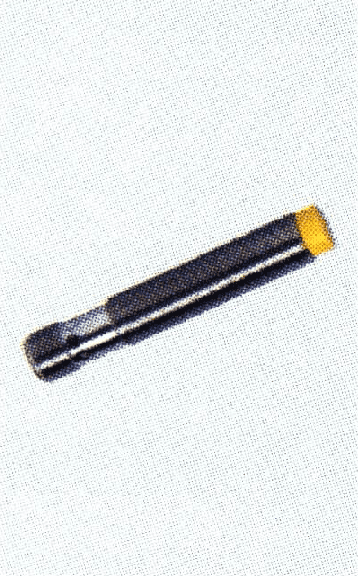

	M12 x 70	0.5…4 nf	SIL 2, PL d	≤ 1 ms	≤ 1 ms	IP67	316 S.S., PBT	GF711S
	M18 x 71	1…5 f	SIL 2, PL d	≤ 1 ms	≤ 1 ms	IP67	With protective ring, PBT	GG712S
M18 x 71	1…8 nf	SIL 2, PL d	≤ 1 ms	≤ 1 ms	IP67	316 S.S., PBT	GG711S
	M30 x 70	1…10 f	SIL 2, PL d	≤ 10 ms	≤ 1 ms	IP67	With protective ring/PBT	GI712S
M30 x 70	1…15 nf	SIL 2, PL d	≤ 10 ms	≤ 1 ms	IP67	316 S.S., PBT	GI711S
M30 x 80	6…12 nf	SIL 3, PL e	< 50 ms	< 200 ms	IP69K	316 S.S., PBT	GI701S

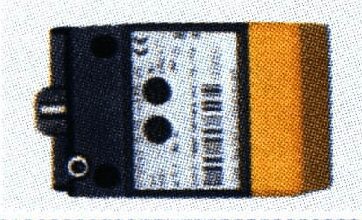

	40 x 40 x 66	10…15 nf	SIL 3, PL e	< 50 ms	< 200 ms	IP67	PPE, Die-cast zinc	GM701S
40 x 40 x 66	4…20 nf	SIL 3, PL e	< 50 ms	< 200 ms	IP67	PPE, Die-cast zinc	GM705S
Fail-safe sensors for series connection* – can be connected to ifm safety relays or field safety modules
	M18 x 91	1…4 f	SIL 3, PL e	< 20 ms	< 200 ms	IP69K	With protective ring, PBT	GG507S
M18 x 91	3…6 nf	SIL 3, PL e	< 20 ms	< 200 ms	IP69K	316 S.S., PBT	GG505S
	M30 x 80	6…12 nf	SIL 3, PL e	< 20 ms	< 200 ms	IP69K	316 S.S. / PEEK	GI505S
	40 x 40 x 66	10…15 nf	SIL 3, PL e	< 20 ms	< 200 ms	IP67	PPE, Die-cast zinc	GM504S
40 x 40 x 66	10…20 nf	SIL 3, PL e	< 20 ms	IP67	PPE, Die-cast zinc	GM505S
*Series connection requires safety splitter E11569.

Accessories

Type	Safety output	Non-safety output	Order No.
	2 x relay (N.O.)	1 x PNP	G1501S
2 x PNP	1 x PNP	G1503S
	3 x relay (N.O.) 2 x relay (N.O.) with time delay	1 x relay (N.O.) 1 x relay (N.C.) 1 x PNP, with time delay	G1502S

Type	Description	Order No.
	AS-i ClassicLine module for Gx7 series	AC507S
	Safety separator (see cable cross-section of M12 connector cable)	E11569

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Operating voltage: 19.2…30 VDC
Number of cores: 4-wire
Connector: M12
Operating temperature: -25…70 °C

What‘s More:

image 2025 07 24T105844.073 — **Challenge:** 2-piece interlocking mechanical switches are prone to misalignment issues and require time-consuming setup.

image 2025 07 24T105900.043 — **ifm solution:** Quick setup. ifm’s inductive fail-safe sensors do not require coded magnets or keys.

Benefits Introduce In Detail

Non-contact fail-safe inductive sensor for safety applications

ifm’s non-contact fail-safe sensors use inductive technology and can detect standard metal target materials, such as stainless steel or low-carbon steel. There is no need for coded magnets or mechanical keys, which significantly shortens installation time and avoids misalignment problems and tripping. The sensor can continuously monitor the target’s position and dwell time within the sensing window.

ifm’s non-contact fail-safe sensors can be used with any standard safety relay, safety PLC, and bus system.

Fail-safe sensors that support series connection (Gx5 series)

ifm’s clock input version allows for up to 10 non-contact fail-safe sensors to be connected in series. As an ideal choice for monitoring multiple workstations (e.g., robot cells), the fail-safe sensor can provide an output when a point in the work chain stops. By using ifm’s quick-disconnect T-connectors, wiring can be significantly reduced and simplified.
