Ring and tubular proximity switches
— DC Quick disconnect, ifm’s ring and tubular inductive proximity switches are the ideal choice for feed process applications

IFM I7R/I85 Series Inductive Proximity Sensor Switch

Technical Features

Ring and tubular inductive proximity switches can detect metal objects inside a pipe.

Available in static and dynamic versions with extremely short response times.

High resolution – can even detect steel balls with a diameter of only 0.6 mm.

Pulse stretching and sensitivity can be adjusted via a potentiometer.

Normally open and normally closed options available, as well as a wide range of diameter and connection options.

Products + Accessories Selection:

Ring Diameter (mm)	Detection Range (mm)	Number of Cores	Output Function	Operating Principle	Resolution of Steel Ball (Ø mm)	Electrical Connection	Pulse Stretch (ms)	Response Time / Drop Time (ms)	Order Number
10.1	–	3	PNP, N.O. / N.C.	Static	1.5	M12 Micro	10…150	0.5 / 10	I7R201
10.1	–	3	NPN, N.O. / N.C.	Static	1.5	M12 Micro	10…150	0.5 / 10	I7R202
15.1	–	3	PNP, N.O. / N.C.	Static	2	M12 Micro	10…150	0.5 / 10	I7R205
15.1	–	3	NPN, N.O. / N.C.	Static	2	M12 Micro	10…150	0.5 / 10	I7R206
20.1	–	3	PNP, N.O. / N.C.	Static	2.5	M12 Micro	10…150	0.5 / 10	I7R209
20.1	–	3	NPN, N.O. / N.C.	Static	2.5	M12 Micro	10…150	0.5 / 10	I7R210
25.1	–	3	PNP, N.O. / N.C.	Static	3	M12 Micro	10…150	0.5 / 10	I7R213
25.1	–	3	NPN, N.O. / N.C.	Static	3	M12 Micro	10…150	0.5 / 10	I7R214
51	–	3	PNP, N.O. / N.C.	Static	6	M12 Micro	10…150	0.5 / 10	I7R217
10.1	–	3	PNP, N.O. / N.C.	Dynamic	0.6	M12 Micro	0.1…150	0.2 / 0.2	I7R203
10.1	–	3	NPN, N.O. / N.C.	Dynamic	0.6	M12 Micro	0.1…150	0.2 / 0.2	I7R204
15.1	–	3	PNP, N.O. / N.C.	Dynamic	0.8	M12 Micro	0.1…150	0.2 / 0.2	I7R207
15.1	–	3	NPN, N.O. / N.C.	Dynamic	0.8	M12 Micro	0.1…150	0.2 / 0.2	I7R208
20.1	–	3	PNP, N.O. / N.C.	Dynamic	1	M12 Micro	0.1…150	0.2 / 0.2	I7R211
20.1	–	3	NPN, N.O. / N.C.	Dynamic	1	M12 Micro	0.1…150	0.2 / 0.2	I7R212
25.1	–	3	PNP, N.O. / N.C.	Dynamic	1.2	M12 Micro	0.1…150	0.2 / 0.2	I7R215
25.1	–	3	NPN, N.O. / N.C.	Dynamic	1.2	M12 Micro	0.1…150	0.2 / 0.2	I7R216

Detection Range (mm)	Number of Cores	Output Function	Operating Principle	Resolution of Steel Ball (Ø mm)	Electrical Connection	Pulse Stretch (ms)	Response Time / Drop Time (ms)	Order Number
14	3	PNP, N.O.	Static	3	M8 Pico	100	0.5 / 100	I8S000
14	3	NPN, N.O.	Static	3	M8 Pico	100	0.5 / 100	I8S001

Mounting Accessories

Description	Order Number
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Description	Order Number
M8 Pico DC (3-pin) 2 m, PUR	EVC141
M8 Pico DC (3-pin) 5 m, PUR	EVC142
M8 Pico DC (3-pin) 2 m, PUR	EVC144
M8 Pico DC (3-pin) 5 m, PUR	EVC145

Specifications:

Operating voltage: 10…35 VDC
Rated current: 200 mA
Current consumption:
- Ring switch: Static < 11 mA; Dynamic < 20 mA
- Tubular switch: Static < 15 mA; Dynamic < 25 mA
Voltage drop: < 2 V
Component speed: < 35 ms
Housing material:
- Ring switch: PA (Nylon); Ring: POM (Polyoxymethylene)
- Tubular switch: Polycarbonate
Ambient temperature: -25…70 °C
Protection class: IP67

Benefits Introduce In Detail

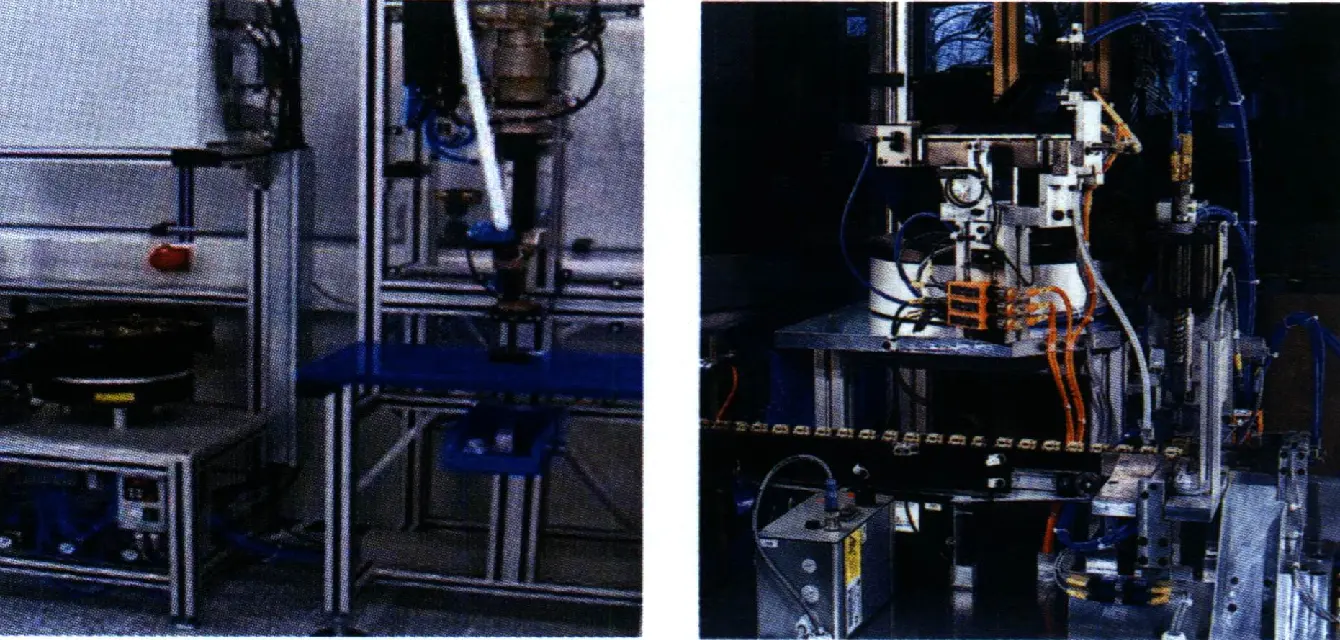

Ifm’s Ring and Tubular Inductive Proximity Switches are the Ideal Choice for Feed Process Applications

ifm’s ring and tubular inductive proximity switches can detect small metal objects passing through a tube. These switches are the ideal choice for assembly automation applications involving material feeding and parts counting. Two output versions are available: static and dynamic.

Operating Principle of Static and Dynamic Switches

Static Proximity Switch

The operation is similar to a standard inductive proximity switch, generating an output signal when a metal object is present in the detection zone. These switches can be used for various applications, such as detecting falling screws or monitoring for jams in a feeding process. Additionally, they can be used for wire break detection applications.

Dynamic Proximity Switch

This type is for applications that require the detection of lightweight or fast-moving parts. When the sensor detects a part, it generates an output pulse with a configurable duration from 0.1 to 150 ms. The resolution can be adjusted according to application requirements to maintain stable performance, even when detecting metal contaminants within the pipeline.
