IFM ID/IM Series Inductive Proximity Sensor Switch

Inductive Proximity Sensor Switch, Proximity Sensor Switch, Sensor SwitchIFM

Deal Score+1

2025/7/4 Update

Medium and large rectangular proximity switches

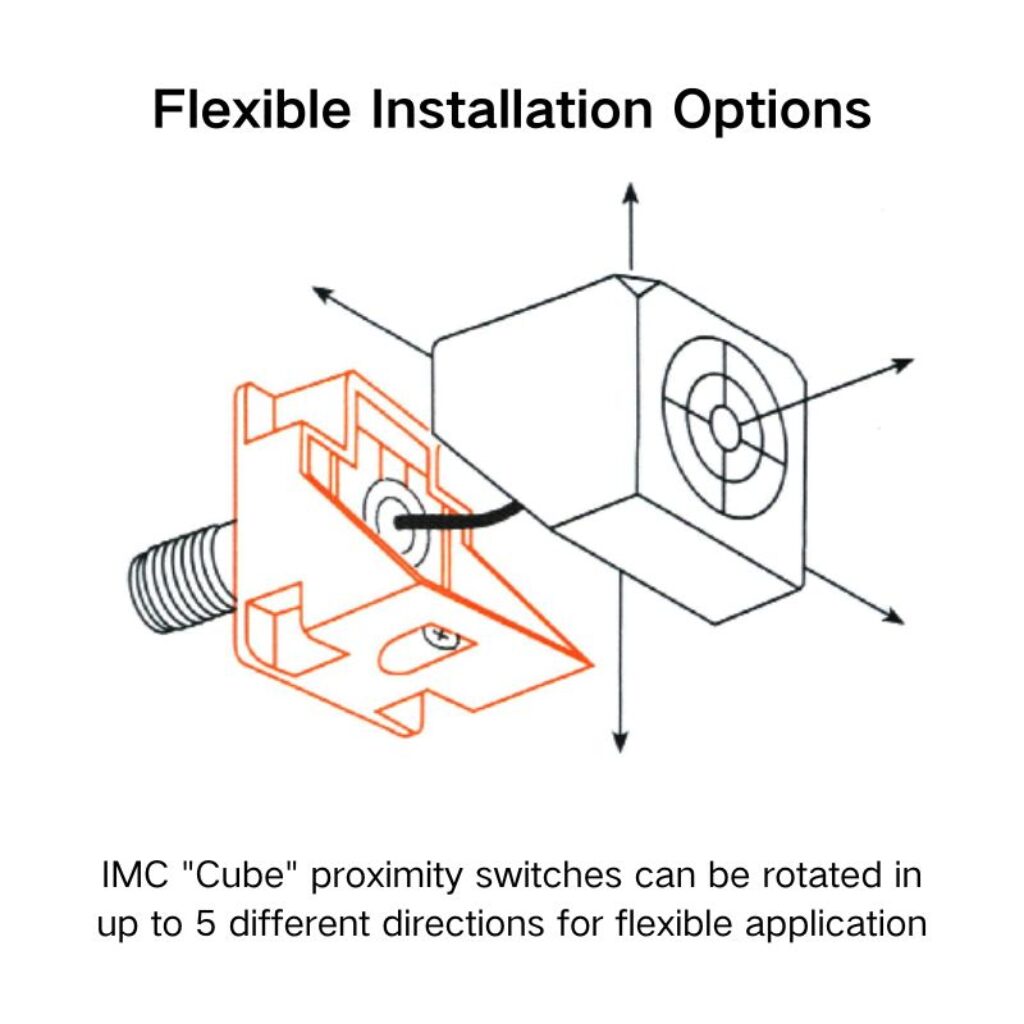

— Pre-wired and quick disconnect, IMC “Cube” proximity switches can be rotated in up to 5 different directions for flexible application.

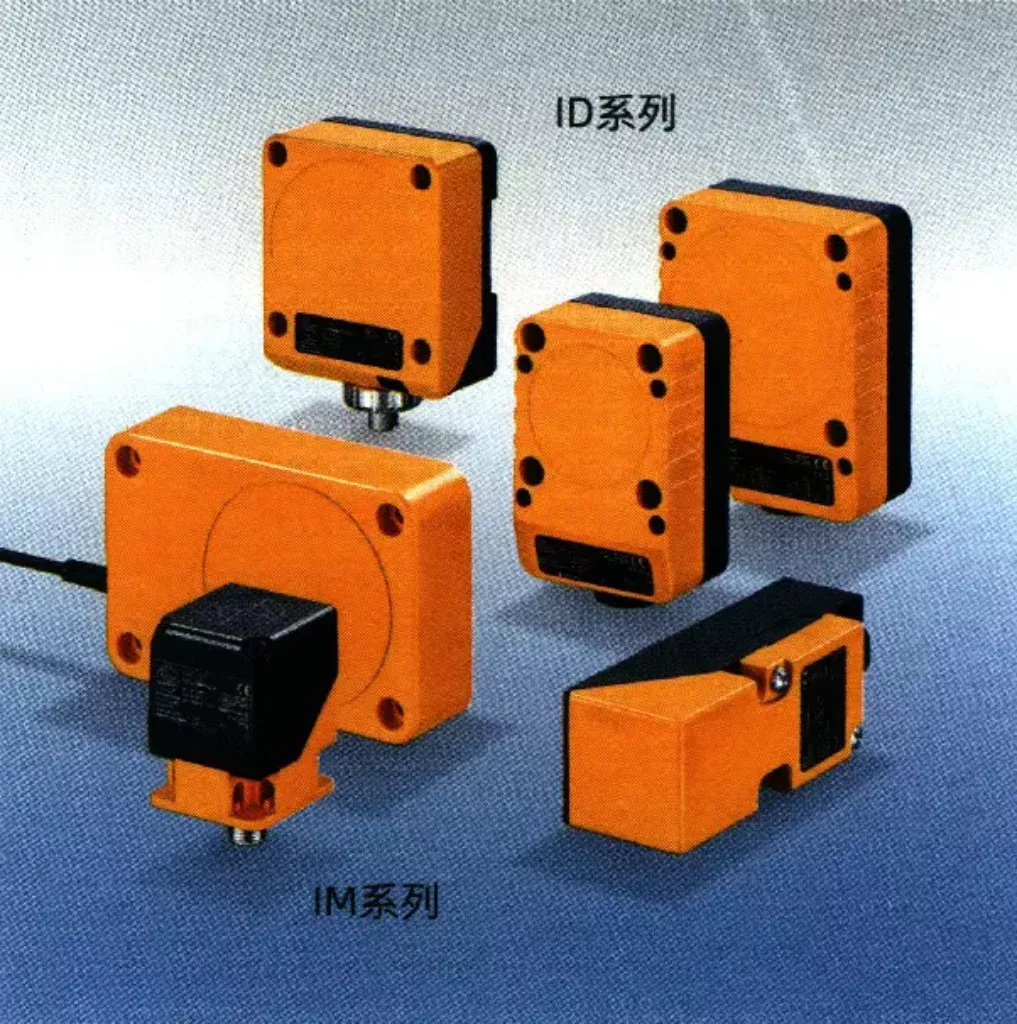

IFM ID/IM Series Inductive Proximity Sensor Switch

Technical Features

The ID and IM series have an extended sensing range, which can reduce failures caused by mechanical damage and extend uptime.

The sensing face of the IM series “Cube” can be rotated in 5 different directions for flexible application.

The IM “Cube” can easily retrofit limit switches using only half the space.

Uses K=1 sensor technology, providing the same sensing range for all target materials.

ID devices are equipped with a terminal box for convenient wiring of different lengths.

Products + Accessories Selection:

Dimensions (mm)	Sensing range	No. of wires	Output function	Supply voltage (V DC)	Switching frequency (Hz)	Max. load current (mA)	Sensor terminal	Order No.
40 x 40 x 54	20 mm, Flush	3	PNP, N.O.	10…36	100	200	M12 Micro DC	IM5115
40 x 40 x 54	35 mm, Non-flush	3	PNP, N.O.	10…36	80	200	M12 Micro DC	IM5116
40 x 40 x 54	40 mm, Non-flush	3	PNP, N.O.	10…36	60	200	M12 Micro DC	IM5117
92 x 80 x 40	50 mm, Flush*	3	PNP, N.O.	10…36	70	250	M12 Micro DC	ID5055
105 x 80 x 40	60 mm, Non-flush	3	PNP, N.O.	10…36	100	250	M12 Micro DC	ID5046
Correction factor K=1 technology
40 x 40 x 54	20 mm, Flush	3	PNP, N.O.	10…36	200	200	M12 Micro DC	IM5128
40 x 40 x 54	40 mm, Non-flush	3	PNP, N.O.	10…36	200	200	M12 Micro DC	IM5131
*When using non-flush mounting, the operating distance for model ID 5055 is 35 mm

Mounting Accessories

Description	Order No.
Protective bracket for ID	E10730

Cable connectors

Description	Order No.
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Protection rating: IP67
Operating temperature:
- -25…70 °C
- -25…80 °C: Model ID5046
Leakage current: Negligible
Housing material: PA (Nylon)

Benefits introduce In Detail

Rugged Enclosure for Industrial Applications

IM Cube inductive proximity switches have an extended detection range and are suitable for demanding industrial automation applications. This series of proximity switches can be placed away from objects to prevent mechanical damage during transportation and other applications.

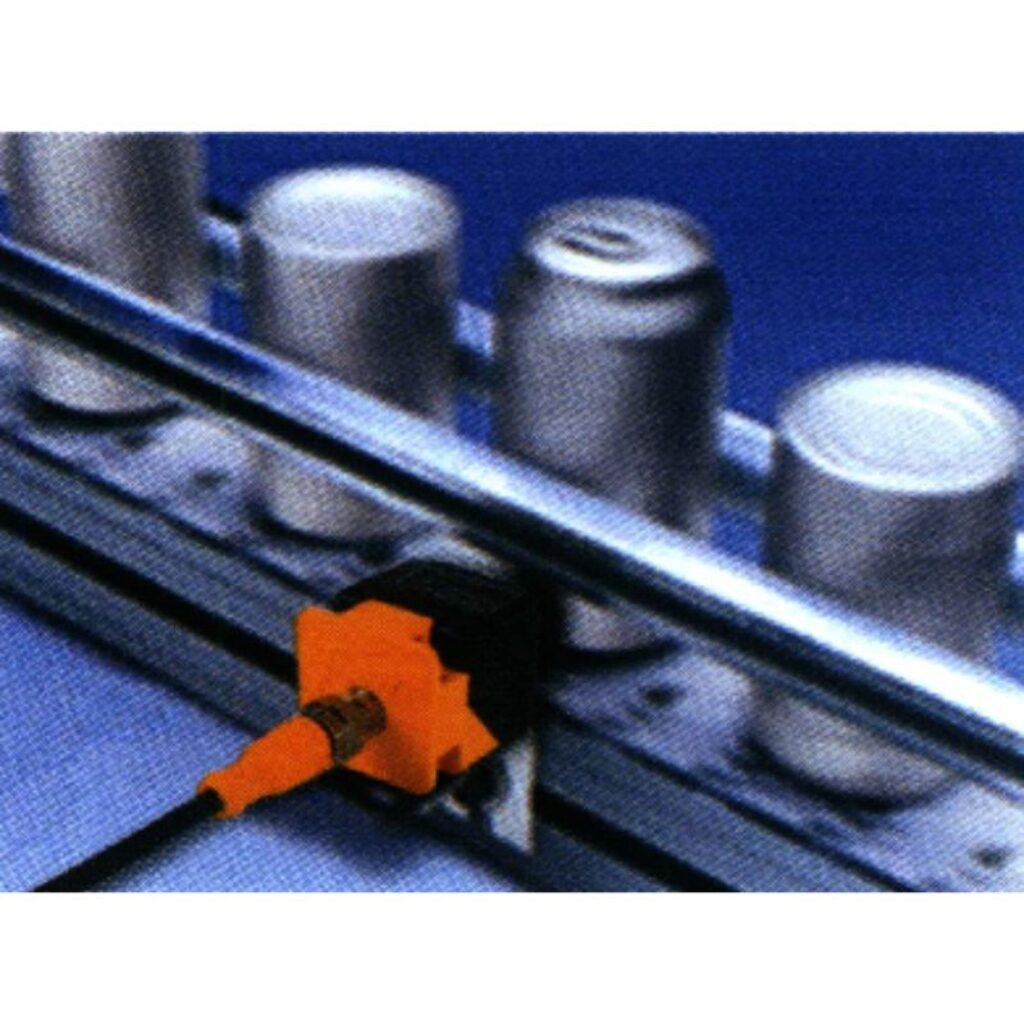

IM “Cube” proximity switches are an ideal choice for packaging production lines and transportation applications, providing two corner-mounted LED indicators for power and output.

Compact Form Factor and Large Detection Range

“Cube” compact proximity switches have dimensions of only 40 x 40 x 66 mm, and the sensing surface can be rotated in up to 5 different directions, achieving flexible application. The integrated mounting bracket allows for simple installation, and the proximity switch can be rotated in up to 5 different directions, enabling flexible application.

ID devices are an ideal choice for ground transportation applications. ID also features a “mechanical quick disconnect” function, allowing them to be snapped onto mounting brackets or DIN rails, so that any damaged proximity switch can be replaced in seconds.
