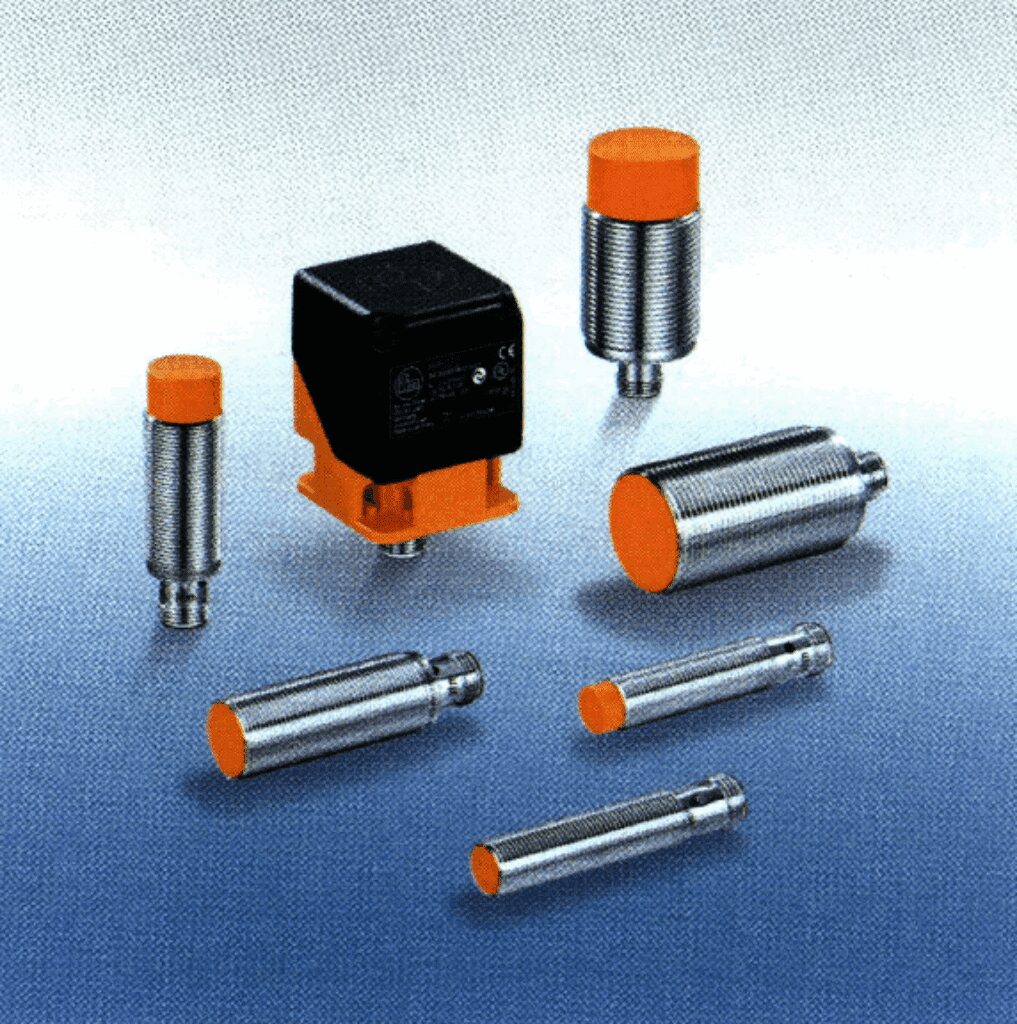

IFM IF/IG/II/IM Series Inductive Proximity Sensor

Technical Features

Inductive proximity switch with IO-Link interface, featuring high linearity and high repeat accuracy for precise monitoring of target position.

Selectable output function and polarity via IO-Link.

Wide operating temperature range of -40…85°C for more flexible application.

Protection rating up to IP 68 / IP 69K for reliable operation in environments containing oil and coolant.

Other features include plug-and-play replacement, real-time configuration changes, and diagnostic feedback.

Transmits target distance digitally, eliminating analog signal drift and noise.

Products + Accessories Selection:

Dimensions (mm)	Sensing range	No. of wires	Output function set via IO-Link	Supply voltage (V DC)	Switching frequency (Hz)	Max. load current (mA)	Electrical connection	Order No.
M12 / L = 60	0.375…3.75, Flush	3	PNP/NPN, N.O. / N.C.	10…30	600	100	M12 DC	IF6123
M12 / L = 60	0.7…7, Non-flush	3	PNP/NPN, N.O. / N.C.	10…30	600	100	M12 DC	IF6124
M18 / L = 60	0.75…7.5, Flush	3	PNP/NPN, N.O. / N.C.	10…30	300	100	M12 DC	IG6615
M18 / L = 60	1.3…13, Non-flush	3	PNP/NPN, N.O. / N.C.	10…30	300	100	M12 DC	IG6616
M30 / L = 65	1.3…13, Flush	3	PNP/NPN, N.O. / N.C.	10…30	100	100	M12 DC	II5973
M30 / L = 65	2.3…23, Non-flush	3	PNP/NPN, N.O. / N.C.	10…30	100	100	M12 DC	II5974
Rectangular	2.1…21, Flush	3	PNP/NPN, N.O. / N.C.	10…30	100	100	M12 DC	IM5172
40 x 40 mm	2.6…26, Non-flush	3	PNP/NPN, N.O. / N.C.	10…30	100	100	M12 DC	IM5173

Optional accessories

Description	Order No.
L-bracket, for 12 mm proximity switch	E10735
L-bracket, for 18 mm proximity switch	E10736
L-bracket, for 30 mm proximity switch	E10737
Clamp, for 12 mm proximity switch	E11047
Clamp, for 18 mm proximity switch	E11048
Clamp, for 30 mm proximity switch	E11049

Cable Connecter

Description	Order No.
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Protection rating: IP 65, IP 66, IP 67, IP 68, IP 69K. For models IM5172 and IM5173: IP 67
Operating temperature: -40…85 °C. For models IM5172 and IM5173: -25…80 °C
Leakage current: 10 mA
Housing material: For models IM5172 and IM5173: PA

Specially designed and tested for a longer service life

Comparison of sensing ranges with non flush proximity switches 5

Benefits introduce In Detail

Precise position detection in machines

New! ifm’s new inductive proximity switches with IO-Link interface integrate numerous functions. They can be used as switching sensors with adjustable switch points or target windows.

The output signal can be set to normally open or normally closed, as well as PNP or NPN switch. IO-Link also supports programming output on-delays and off-delays. Furthermore, these inductive proximity switches can be used as a measurement system, transmitting the target distance value digitally via IO-Link.

High precision

ifm’s IO-Link inductive proximity switches can precisely detect minute changes in the target’s position. Even spindle run-out or the tension of circular or band saw blades can be reliably detected.

Alarms can be set for when the target leaves the target window or gets too close to the sensing face. All collected data can be transmitted and recorded via IO-Link.

IO-Link is a cornerstone of Industry 4.0, supporting more precise detection of targets with higher accuracy and maximizing overall equipment efficiency.
