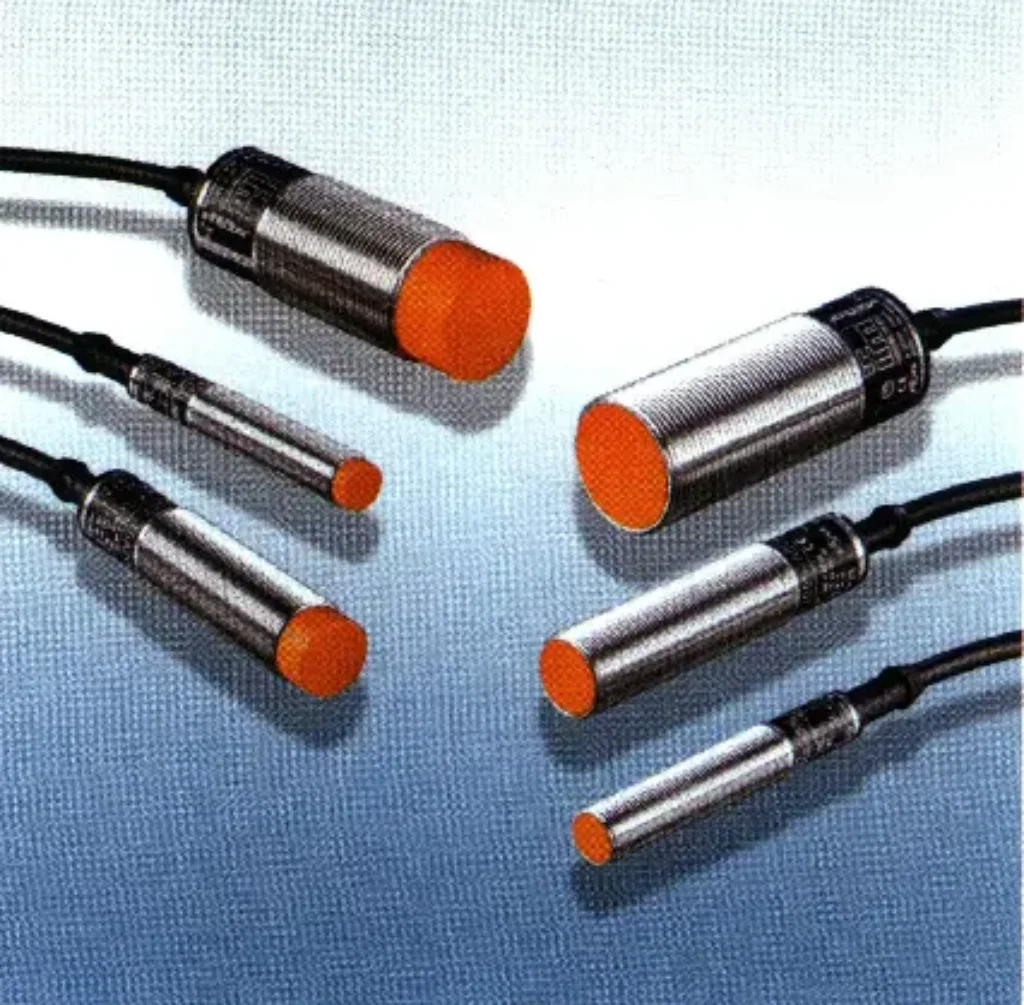

IFM IF03/IG03/II02 Series Pre-wired Inductive Proximity Sensor Switches
— Cylindrical proximity switch M12, M18, M30.

IFM IF03/IG03/II02 Series Pre-wired Inductive Proximity Sensor Switch

Technical Features

Extended sensing range reduces failures caused by mechanical damage and extends uptime.

Uses industry-standard M18 and M30 diameter housings, suitable for a wide range of industrial automation applications.

2-meter high-flexibility PVC cable.

Quick disconnect and pre-wired options available – for more proximity switch options, please contact us.

Models with a universal voltage of 20…250 V AC/DC are available.

Products + Accessories Selection:

Dimensions (mm)	Sensing range	No. of wires	Output function	Supply voltage (VAC / VDC)	Switching frequency (Hz) AC/DC	Max. load current (mA) AC/DC	Electrical connection	Order No.
M12 / L = 71.5	2 mm, Flush	2	N.O.	20…250	25	250	Pre-wired 2 m cable	IF0303
M12 / L = 71	4 mm, Non-flush	2	N.O.	20…250	25	250	Pre-wired 2 m cable	IF0302
M18 / L = 80	5 mm, Flush	2	N.O.	20…250	25 / 50	350 / 100	Pre-wired 2 m cable	IG0305
M18 / L = 80	8 mm, Non-flush	2	N.O.	20…250	25 / 50	350 / 100	Pre-wired 2 m cable	IG0307
M30 / L = 81	10 mm, Flush	2	N.O.	20…250	25 / 50	350 / 100	Pre-wired 2 m cable	II0272
M30 / L = 81	15 mm, Non-flush	2	N.O.	20…250	25 / 50	350 / 100	Pre-wired 2 m cable	II0274

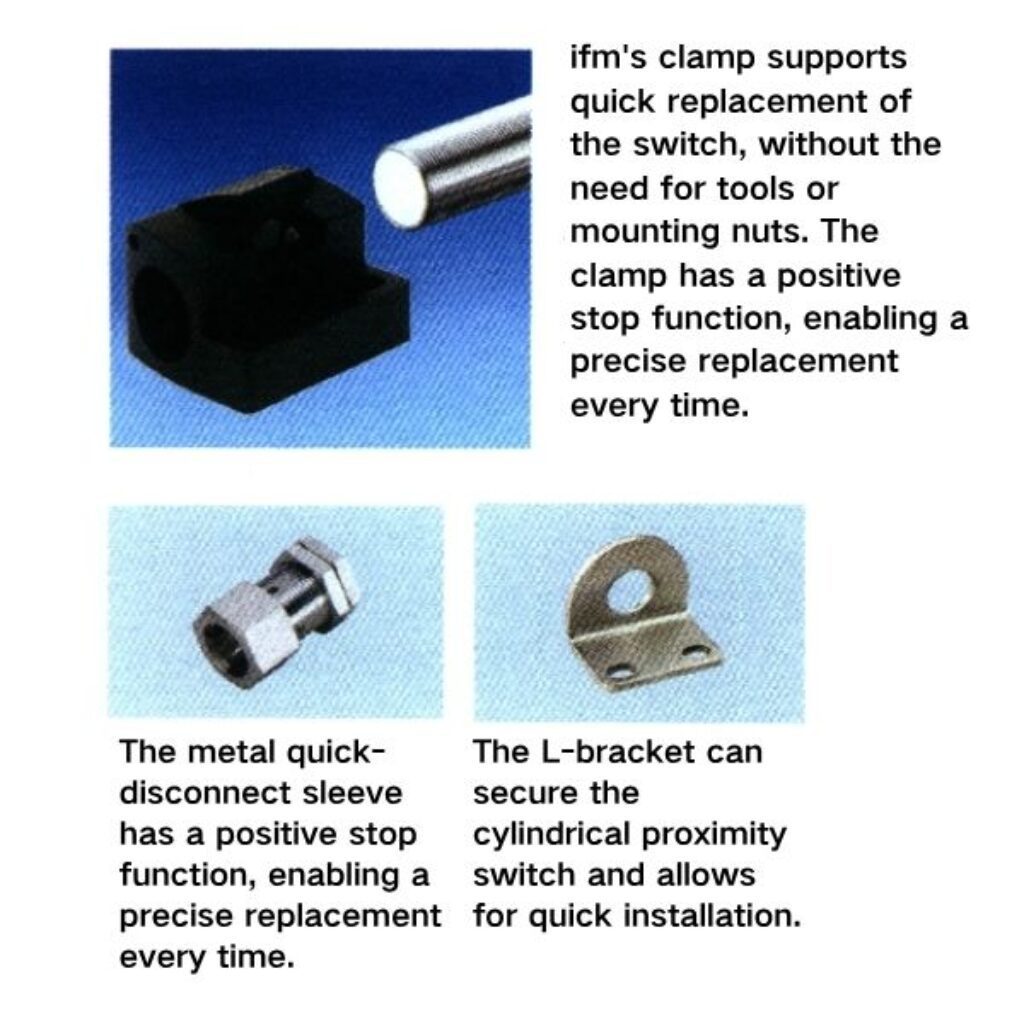

Mounting Accessories

Description	Order No.
Clamp, for 12 mm proximity switch	E11047
Clamp, for 18 mm proximity switch	E11048
Clamp, for 30 mm proximity switch	E11049
Quick-mount sleeve, for 12 mm proximity switch	E11114
Quick-mount sleeve, for 18 mm proximity switch	E11115
Quick-mount sleeve, for 30 mm proximity switch	E10808
L-bracket, for 12 mm proximity switch	E10735
L-bracket, for 18 mm proximity switch	E10736
L-bracket, for 30 mm proximity switch	E10737

Specifications:

Protection rating: IP67
Operating temperature: -25…80 °C
Leakage current:
- < 2 mA: Models IF0302, IF0303
- < 2.5 mA: Models IG0305, IG0307, II0272, II0274
Housing material:
- Specially coated brass; Sensing face: PC: Models IF0302, IF0303, IG0305, IG0307
- Specially coated brass; Models II0272, II0274
- Specially coated brass; Sensing face: PBT: Models II0272, II0274

Benefits introduce In Detail

Rugged housing specially designed and tested for the industrial automation sector

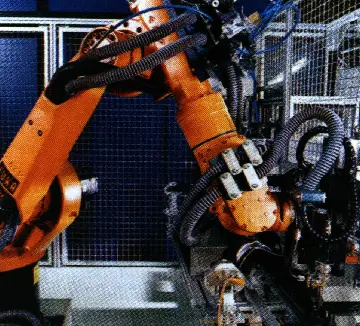

ifm’s pre-wired cylindrical proximity switches can reliably detect positions throughout the entire industrial automation process. The rugged metal housing is very suitable for demanding applications in fields such as robotics, packaging, assembly automation, and material handling.

The enhanced sensing range allows the proximity switch to be placed further away from the target, thereby reducing the possibility of damage caused by physical impact. The proximity switch uses a high-flexibility PVC cable that can withstand frequent movement.

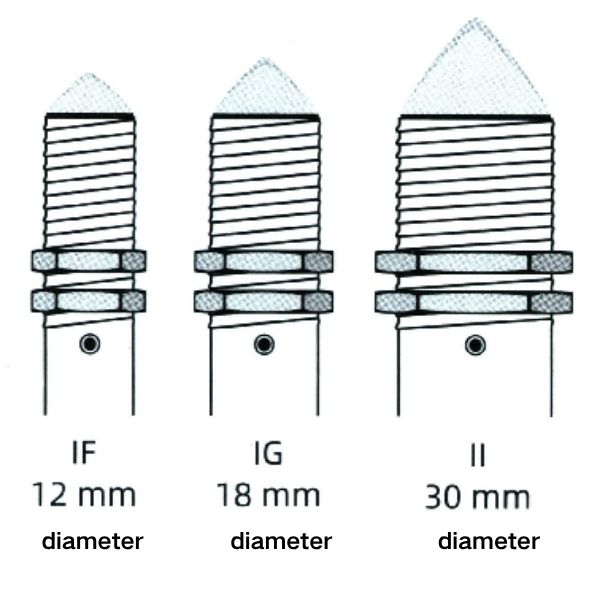

Sensing range is determined by the physical size of the proximity switch

The strength of the radiated sensing field is determined by the size of the proximity switch core. A larger proximity switch also has a larger core, and therefore a longer sensing range.
