IFM IF03/IG03/II03 Series Inductive Proximity Sensor Switches
— Cylindrical proximity switch M12, M18, M30. Three optional brackets for flexible installation

IFM IF03/IG03/II03 Series Inductive Proximity Sensor Switch

Technical Features

Extended sensing range reduces failures caused by mechanical damage and extends uptime.

Models with a universal voltage of 20…250 V AC/DC are available.

Uses industry-standard M18 and M30 diameter housings, suitable for a wide range of industrial automation applications.

Quick disconnect and pre-wired options available – for more proximity switch options, please contact us.

The rugged metal housing is specially designed and tested to withstand industrial automation applications.

Products + Accessories Selection:

Size (mm)	Sensing Range	Mounting Style	No. of Wires	Output Function	Operating Voltage (V AC/DC)	Switching Frequency (Hz) AC/DC	Max. Load Current (mA) AC/DC	Electrical Connection	Part Number
M12 / L= 62	4 mm	Flush	2	N.O.	20…140	25 / 200	200	1/2″ Micro AC	IF0311
M12 / L= 62	7 mm	Non-flush	2	N.O.	20…140	25 / 90	200	1/2″ Micro AC	IF0312
M18 / L= 72	8 mm	Flush	2	N.O.	20…250	25 / 60	250 / 100	1/2″ Micro AC	IG0344
M18 / L= 72	12 mm	Non-flush	2	N.O.	20…250	25 / 90	250 / 100	1/2″ Micro AC	IG0345
M30 / L= 72	15 mm	Flush	2	N.O.	20…250	25 / 40	350 / 100	1/2″ Micro AC	II0340
M30 / L= 72	22 mm	Non-flush	2	N.O.	20…250	25 / 70	350 / 100	1/2″ Micro AC	II0341

Mounting Accessories

Description	Part Number
Clamp for 12 mm proximity switch	E11047
Clamp for 18 mm proximity switch	E11048
Clamp for 30 mm proximity switch	E11049
Mounting sleeve for 12 mm proximity switch	E11114
Mounting sleeve for 18 mm proximity switch	E11115
Mounting sleeve for 30 mm proximity switch	E10808
Angle bracket for 12 mm proximity switch	E10735
Angle bracket for 18 mm proximity switch	E10736
Angle bracket for 30 mm proximity switch	E10737

Connecting Cables

Description	Part Number
1/2″ Micro AC (3-pin) 2m, PUR	E12282
1/2″ Micro AC (3-pin) 10m, PUR	E12286
1/2″ Micro AC (3-pin) 5m, PUR	E10210

Specifications:

Protection rating: IP67
Operating temperature: -25…70 °C
Leakage current:
- < 0.8 mA: Models IF0311, IF0312
- < 1 mA @ 250 VAC: Models IG0344, IG0345, II0340, II0341
Housing material:
- Specially coated brass; Sensing face: PBT: Models IF0311, IF0312, II0340, II0341
- Specially coated brass; Sensing face: PA, PBT: Models IG0344, IG0345

Benefits introduce In Detail

Flexible and fast installation

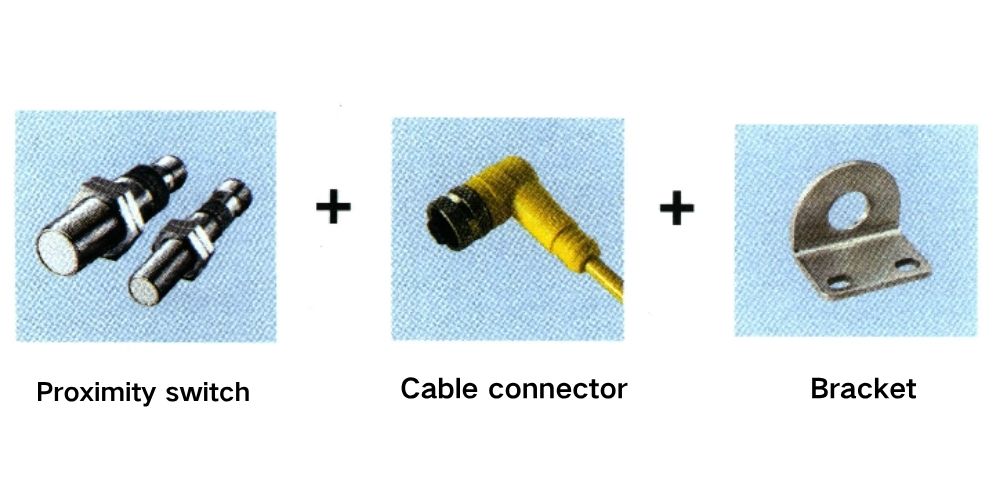

The three-piece solution enables flexible and fast installation. ifm has developed accessories and connectors that simplify the installation process for inductive proximity switches. By using ifm efector quick-disconnect cable connectors that support plug-and-play wiring, the total installation time for the proximity sensor can be further reduced.

Sensing range is determined by the physical size of the proximity switch

The strength of the radiated sensing field is determined by the size of the proximity switch core. A larger proximity switch also has a larger core, and therefore a longer sensing range.
