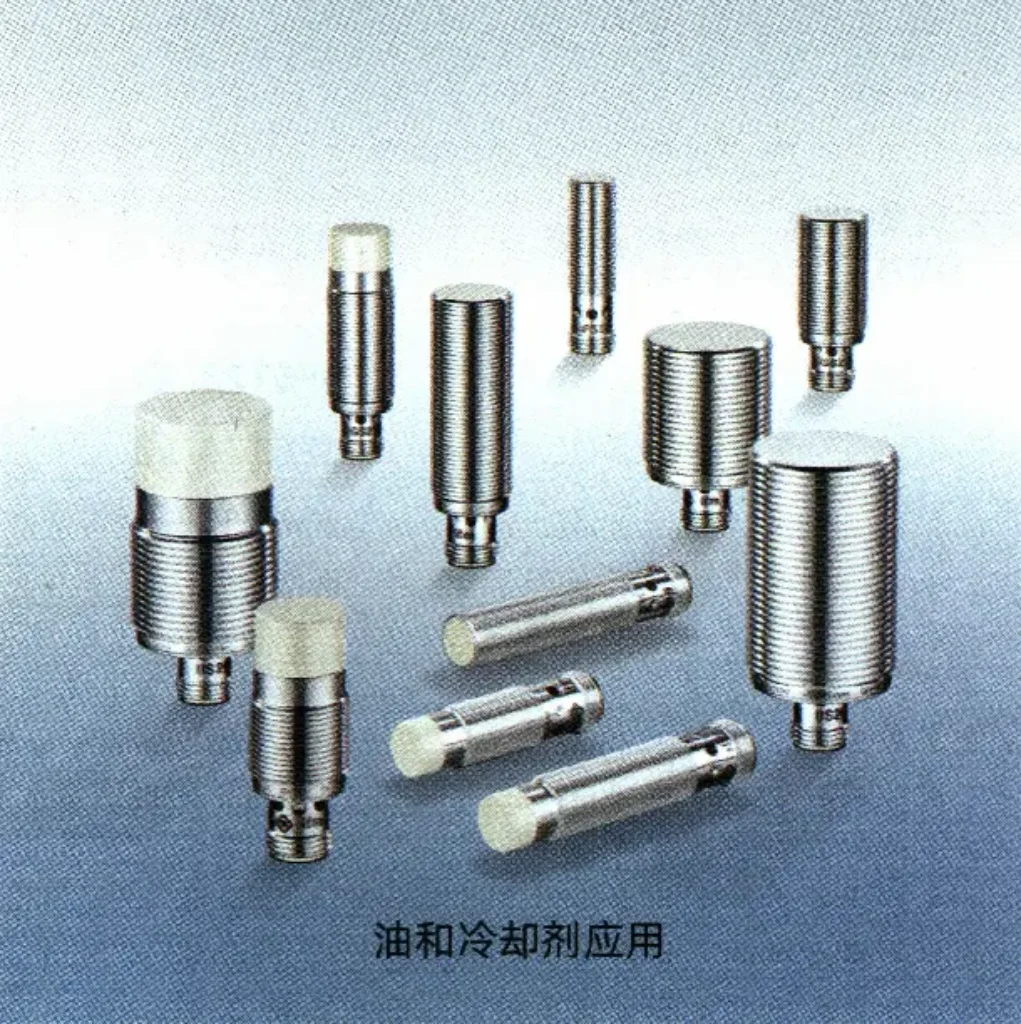

— Cylindrical proximity switch M12, M18, M30.

IFM IFC/IGC/IIC Series Inductive Proximity Sensor Switch

Technical Features

Extended sensing range increases the distance between the proximity switch and the target, thereby extending uptime.

Models with a rugged 316 stainless steel housing can withstand corrosive oils and coolants.

Optional models with an anti-chip ceramic sensing face are available.

K=1 sensor technology provides the same sensing range for all target materials.

Industry-standard M12 Micro DC connector.

Products + Accessories Selection:

Dimensions (mm)	Sensing range	No. of wires	Output function	Supply voltage (V DC)	Switching frequency (Hz)	Max. load current (mA)	Electrical connection	Order No.
Plastic sensing face
M12 / L = 45	4 mm, Flush	3	PNP, N.O.	10…30	700	100	M12 Micro DC	IFC204
M12 / L = 60	4 mm, Flush	3	PNP, N.O.	10…30	700	200	M12 Micro DC	IF5775
M12 / L = 50	7 mm, Non-flush	3	PNP, N.O.	10…30	700	100	M12 Micro DC	IFC205
M12 / L = 60	7 mm, Non-flush	3	PNP, N.O.	10…30	700	200	M12 Micro DC	IF5811
M18 / L = 45	8 mm, Flush	3	PNP, N.O.	10…30	400	100	M12 Micro DC	IGC204
M18 / L = 70	8 mm, Flush	3	PNP, N.O.	10…30	400	200	M12 Micro DC	IG5788
M18 / L = 51	12 mm, Non-flush	3	PNP, N.O.	10…30	300	100	M12 Micro DC	IGC205
M18 / L = 70	12 mm, Non-flush	2/3	PNP/NPN, N.O.	10…30	300	100	M12 Micro DC	IGC213
M18 / L = 70	12 mm, Non-flush	3	PNP, N.O.	10…30	300	200	M12 Micro DC	IG5841
M30 / L = 50	15 mm, Flush	3	PNP, N.O.	10…30	100	100	M12 Micro DC	IIC200
M30 / L = 50	22 mm, Non-flush	3	PNP, N.O.	10…36	100	100	M12 Micro DC	IIC201
Ceramic sensing face
M12 / L = 45	4 mm, Flush	3	PNP, N.O.	10…36	700	100	M12 Micro DC	IFC206
M12 / L = 70	4 mm, Flush	2/3	PNP/NPN, N.O.	10…30	500	100	M12 Micro DC	IFC210
M18 / L = 46	8 mm, Flush	3	PNP, N.O.	10…36	400	100	M12 Micro DC	IGC206
M18 / L = 70	8 mm, Flush	2/3	PNP/NPN, N.O.	10…30	400	100	M12 Micro DC	IGC210
Titanium sensors
M12 / L = 60	2.5 mm, Flush	3	PNP, N.O.	10…36	100	100	M12 Micro DC	IFC263
M12 / L = 60	2.5 mm, Flush	3	PNP, N.C.	10…36	100	100	M12 Micro DC	IFC264
M18 / L = 70	4.5 mm, Flush	3	PNP, N.O.	10…36	100	100	M12 Micro DC	IGC249
M18 / L = 70	4.5 mm, Flush	3	PNP, N.C.	10…36	100	100	M12 Micro DC	IGC250

Optional accessories

Description	Order No.
Clamp, for 12 mm proximity switch	E11047
Clamp, for 18 mm proximity switch	E11048
Clamp, for 30 mm proximity switch	E11049
Mounting sleeve, for 12 mm proximity switch	E11114
Mounting sleeve, for 18 mm proximity switch	E11115
Mounting sleeve, for 30 mm proximity switch	E10808
L-bracket, for 12 mm proximity switch	E10735
L-bracket, for 18 mm proximity switch	E10736
L-bracket, for 30 mm proximity switch	E10737

Cable Connecter

Description	Order No.
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Protection rating: IP68
Operating temperature: -25…70 °C; -40…85 °C; Models IFS304, IFS306, IGS290, IGS292, IIS282, IIS284
Housing material:
- Specially coated brass; 316 Stainless Steel: Models IGC232, IGC233, IIC218, IIC219; Brass: Model IFC259
- Sensing face: LCP; PBT: Model IIC219; Ceramic: Models IFC206, IFC210, IGC206, IGC210
Leakage current:
- < 0.5 mA; Models IFC210, IGC210; < 0.9 mA: Model IGC213, when used centrally in a 2-wire system

Benefits introduce In Detail

Robust proximity switches resistant to oil and coolants

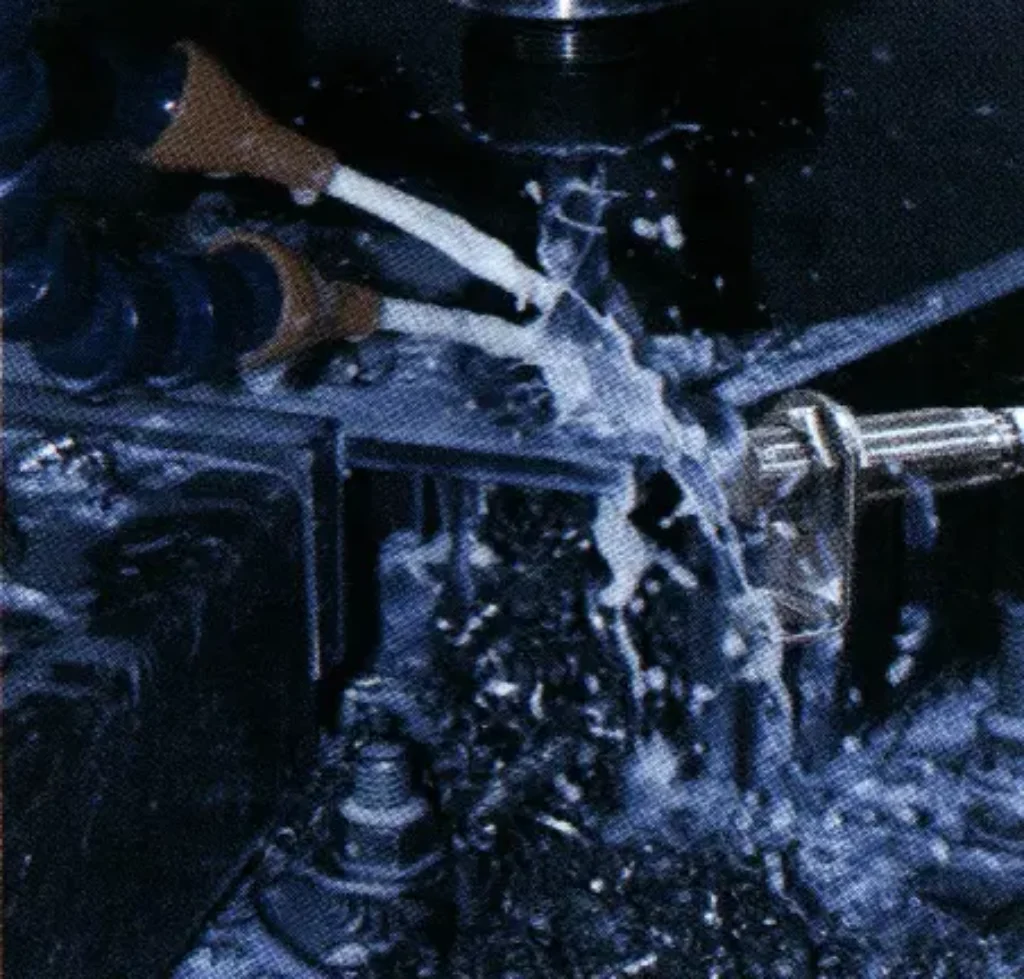

Oils and coolants used in metalworking applications can penetrate the housing of proximity switches, leading to component failure and fluctuations in the sensing range. Through research and experience, it has been found that industry-leading companies use a wide variety of oils and coolants.

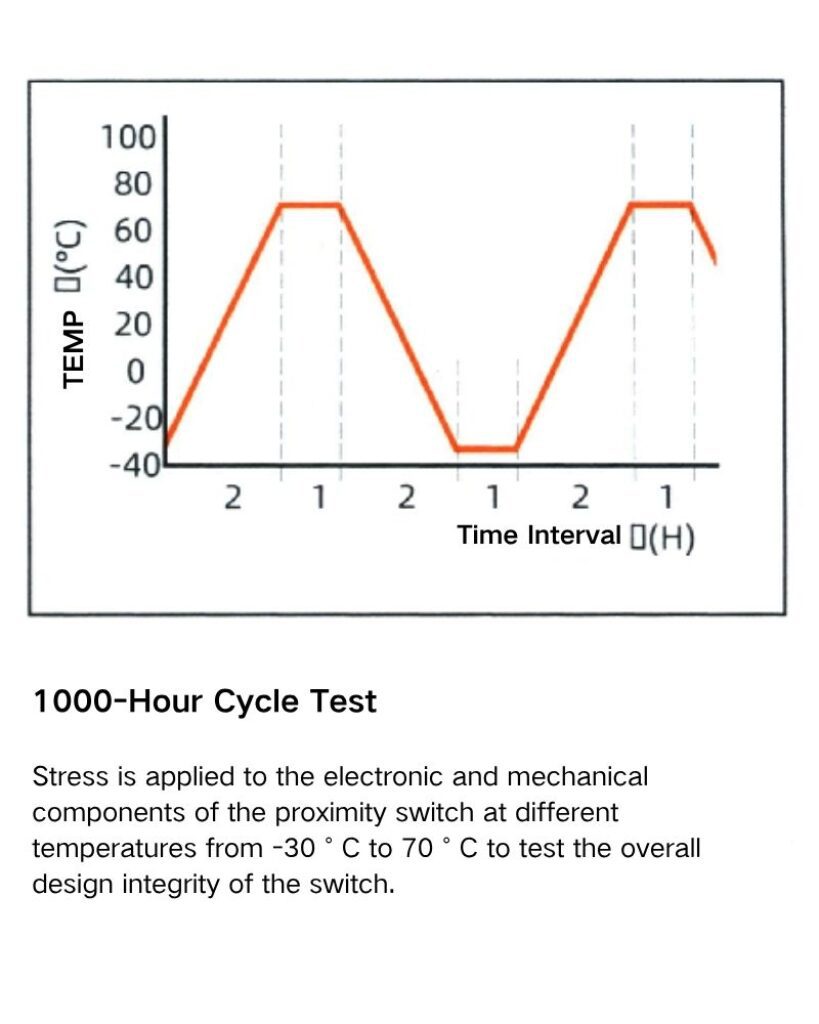

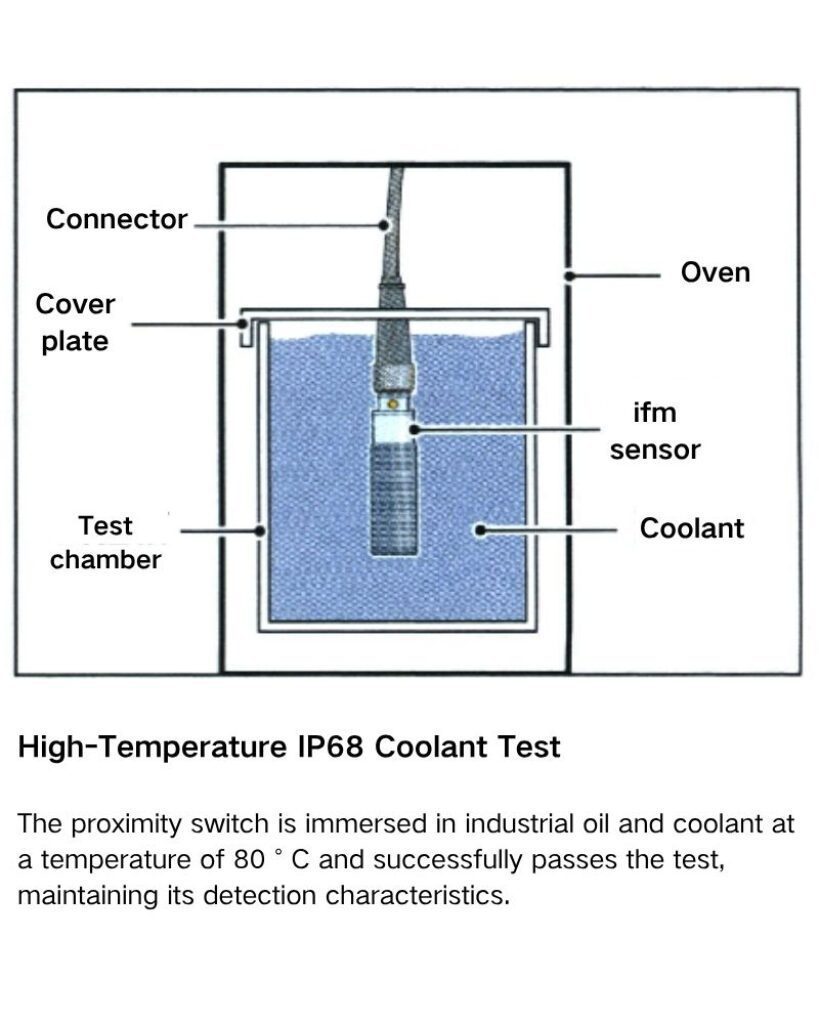

ifm’s proximity switches are fully immersed in these oils and coolants at a temperature of 80°C. By measuring the sensing range after prolonged exposure in the test chamber, the zero-leakage design of the proximity switches was verified. The sensing range of these proximity switches did not change at all, and thus they passed the test.

Correction factor K=1 sensor technology

Depending on the target material, standard proximity switches have a sensing range correction factor. For example, the sensing range for an aluminum target is 60% smaller than for a mild steel target. Proximity switches using K=1 technology have the same correction factor for all metals. Therefore, these proximity switches have the same sensing range for both aluminum and steel targets.
