IFM IFS/IGS/IIS/IE Series Inductive Proximity Sensor Switch

Inductive Proximity Sensor Switch, Proximity Sensor Switch, Sensor SwitchIFM

Deal Score0

2025/7/4 Update

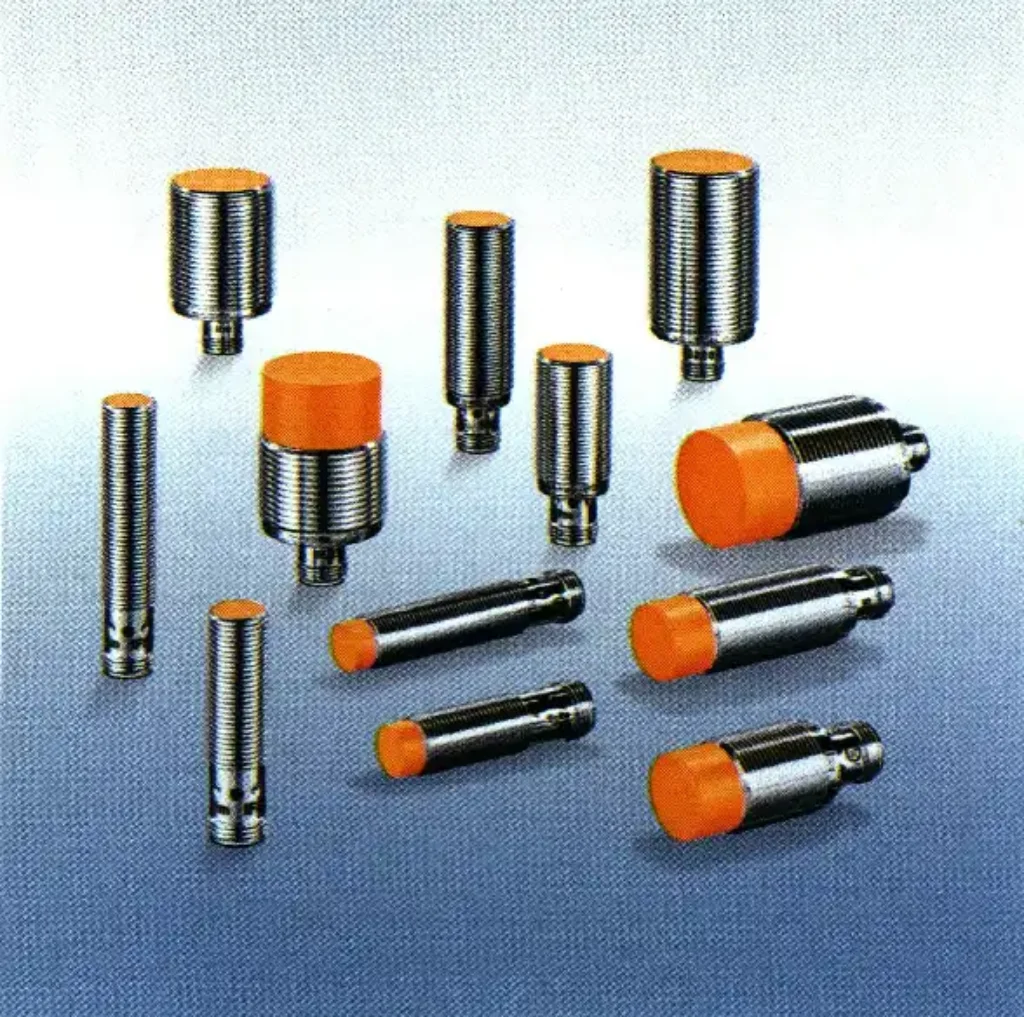

Cylindrical proximity switch M8, M12, M18, M30
— Body length 45 to 62 mm

IFM IFS/IGS/IIS/IE Series Inductive Proximity Sensor Switch

Technical Features

Extended sensing range reduces failures caused by mechanical damage and extends uptime.

Wide operating temperature range of -40…85°C, flexible application.

Rugged industry-standard housing with protection rating up to IP68 / IP69K, can be reliably used in environments containing oil and coolants.

Long or short versions available.

4 bright LEDs provide 360-degree visible status indication for easier troubleshooting.

Products + Accessories Selection:

Dimensions Short (mm)	Dimensions Long (mm)	Sensing range	No. of wires	Output function	Switching frequency (Hz)	Order No. Short	Order No. Long
–	M8 / L = 62	2 mm, Flush	3	DC PNP, N.O.	1000	–	IES312
–	M8 / L = 62	4 mm, Non-flush	3	DC PNP, N.O.	300	–	IES288
M12 / L = 45	M12 / L = 60	4 mm, Flush	3	DC PNP, N.O.	700	IFS244	IFS240
M12 / L = 45	M12 / L = 60	7 mm, Non-flush	3	DC PNP, N.O.	700	IFS245	IFS241
M12 / L = 45	M12 / L = 60	4 mm, Flush	3	DC NPN, N.O.	700	IFS246	IFS242
M12 / L = 45	M12 / L = 60	7 mm, Non-flush	3	DC NPN, N.O.	700	IFS247	IFS243
M18 / L = 45	M18 / L = 60	8 mm, Flush	3	DC PNP, N.O.	400	IGS236	IGS232
M18 / L = 45	M18 / L = 60	12 mm, Non-flush	3	DC PNP, N.O.	300	IGS237	IGS233
M18 / L = 45	M18 / L = 60	8 mm, Flush	3	DC NPN, N.O.	400	IGS238	IGS234
M18 / L = 45	M18 / L = 60	12 mm, Non-flush	3	DC NPN, N.O.	300	IGS239	IGS235
M30 / L = 50	M30 / L = 60	15 mm, Flush	3	DC PNP, N.O.	100	IIS230	IIS226
M30 / L = 50	M30 / L = 60	22 mm, Non-flush	3	DC PNP, N.O.	100	IIS231	IIS227
M30 / L = 50	M30 / L = 60	15 mm, Flush	3	DC NPN, N.O.	100	IIS232	IIS228
M30 / L = 50	M30 / L = 60	22 mm, Non-flush	3	DC NPN, N.O.	100	IIS233	IIS229

Cable Connecters:

Description	Order No.
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Optional accessories

Description	Order No.
Clamp, for 8 mm proximity switch	E11521
Clamp, for 12 mm proximity switch	E11047
Clamp, for 18 mm proximity switch	E11048
Clamp, for 30 mm proximity switch	E11049
L-bracket, for 8 mm proximity switch	E10734
L-bracket, for 12 mm proximity switch	E10735
L-bracket, for 18 mm proximity switch	E10736
L-bracket, for 30 mm proximity switch	E10737

Specifications:

Operating voltage: 10…30 VDC; Exception models IE5288 and IE5312: 10…36 VDC
Protection rating: IP65, IP67, IP68, IP69K; Exception models IE5288 and IE5312: IP67
Temperature: -40…85 °C; Exception models IE5288 and IE5312: -25…70 °C
Leakage current: Negligible
Housing material: White bronze-plated brass, PBT, PEI; Exception model IE5288: White bronze-plated brass, CO-PC, and model IE5312: White bronze-plated brass, LCP
Electrical connection: M12
Max. load current: 100mA; Exception model IE5288: 200 mA, and IE5312: 250 mA

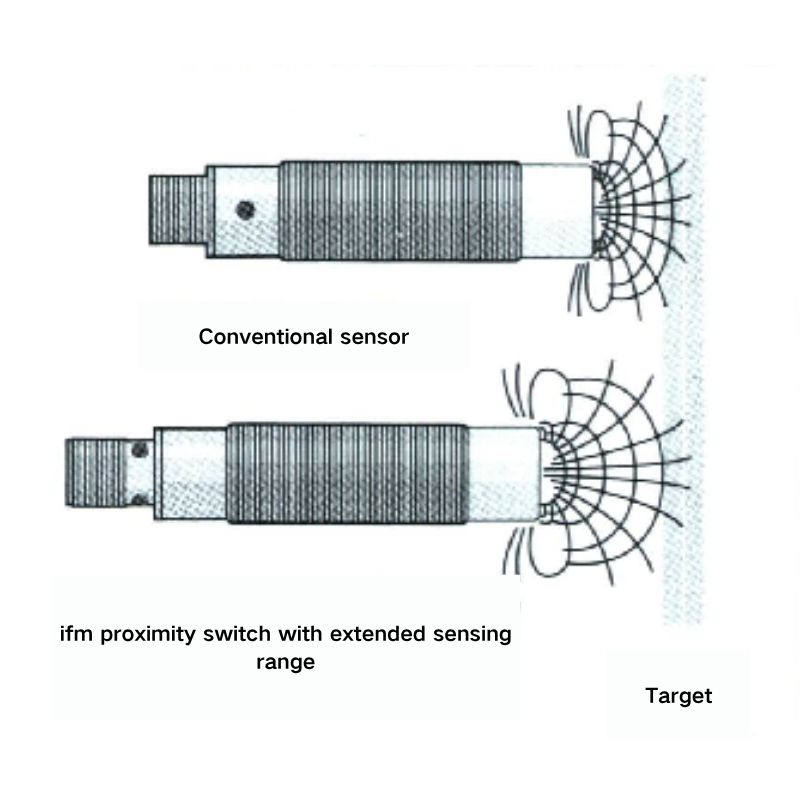

Comparison of sensing ranges with non flush proximity switches

Benefits introduce In Detail

Extended sensing range reduces failures caused by mechanical damage

ifm’s inductive proximity switches perfectly combine function, performance, and value. They use a unique design with smaller temperature drift and a wider operating temperature range, improving the sensing range tolerance to ±5%.

These proximity switches are resistant to shock, vibration, and electrical noise. With a protection rating up to IP68/IP69K, they can prevent water ingress and withstand oil and coolants in harsh applications.

ifm’s all-new proximity switches have an extended temperature range and can be installed further away from the target, thereby preventing damage from physical impact.
