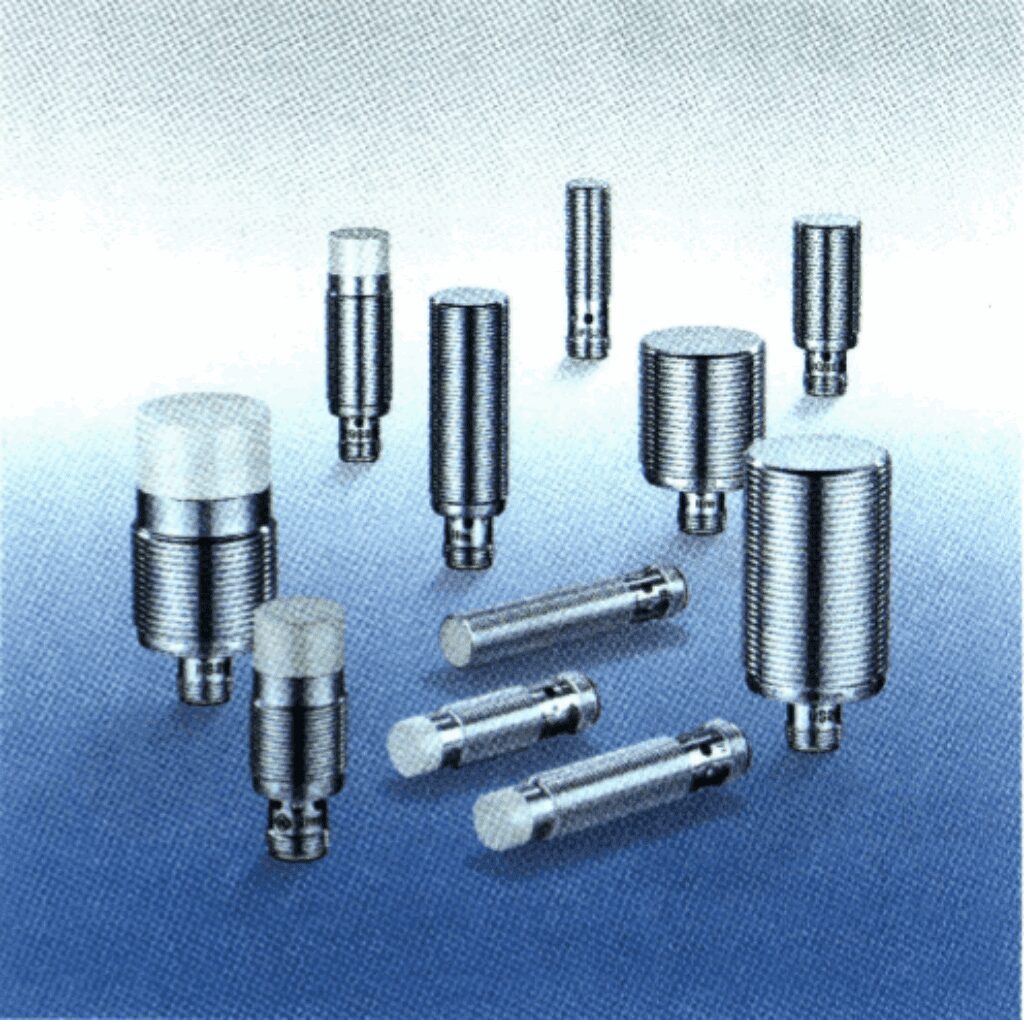

Cylindrical proximity switch M8, M12, M18, M30
— ifm’s IFS, IGS, and IIS series of inductive proximity switches combine high performance with low cost, making them standard equipment for factories, not just a solution for demanding applications

IFM IFS/IGS/IIS Series Inductive Proximity Sensor Switch

Technical Features

Inductive proximity sensor switches with the longest sensing distance on the market.

K=1 sensor technology, with the same sensing range for all target materials.

Uses industry-standard M12, M18, and M30 diameter housings, suitable for a wide range of industrial automation applications.

Wide operating temperature range, flexible application.

Rugged metal housing, tested to withstand harsh environments, with a protection rating of IP 68/69K.

Products + Accessories Selection:

Dimensions (mm)	Sensing range	No. of wires	Output function	Supply voltage (V DC)	Switching frequency (Hz)	Max. load current (mA)	Electrical connection	Order No.
M8 / L = 40	3 mm, Flush	3	PNP, N.O.	10…30	2000	100	M8 Pico DC	IES200
M8 / L = 40	6 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M8 Pico DC	IES201
M12 / L = 45	4 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS297
M12 / L = 45	8 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS298
M12 / L = 45	10 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS299
M12 / L = 60	4 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS304
M12 / L = 60	8 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS305
M12 / L = 60	10 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IFS306
M18 / L = 45	8 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS287
M18 / L = 45	12 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS288
M18 / L = 45	15 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS289
M18 / L = 60	8 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS290
M18 / L = 60	12 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS291
M18 / L = 60	15 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IGS292
M30 / L = 45	15 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IIS281
M30 / L = 60	15 mm, Flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IIS282
M30 / L = 60	22 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IIS283
M30 / L = 60	30 mm, Non-flush	3	PNP, N.O.	10…30	2000	100	M12 Micro DC	IIS284

Cable Connecters:

Description	Order No.
M8 Pico DC (3-pin) 2 m, PUR	EVC141
M8 Pico DC (3-pin) 5 m, PUR	EVC142
M8 Pico DC (3-pin) 2 m, PUR	EVC144
M8 Pico DC (3-pin) 5 m, PUR	EVC145

Description	Order No.
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Protection class: IP 68, IP 69K
Operating temperature: -40…85 °C
Leakage current: < 20 mA
Housing material:
- Housing: 316 Stainless steel
- Sensing face: LCP

Benefits introduce In Detail

Enhanced sensing range, can detect all metals – setting a new benchmark for price-performance ratio

IFM’s inductive proximity switches perfectly combine functionality, performance, and value. The new IFS, IGS, and IIS series of proximity switches have an enhanced sensing range and can be installed at a greater distance to detect objects. This can prevent damage caused by physical impact. The IIS series has a sensing distance of up to 30 mm, which is the longest sensing distance of any proximity switch on the market today.

Correction factor K=1 sensor technology (K=1)

Depending on the target material, standard proximity switches have a sensing range correction factor. For example, the sensing range for an aluminum target is 60% smaller than for a low-carbon steel target. Sensors using K=1 technology have the same correction factor for all metals. ifm’s “S” series of inductive proximity switches have the same sensing range for both aluminum and low-carbon steel targets.

Reliable detection design

These proximity switches are resistant to shock, vibration, and electrical noise, with a protection rating of IP68/IP69K, which can prevent water ingress and withstand oil and coolant in harsh applications.

They have a high switching frequency and can reliably detect metal objects in high-speed applications. In addition, they use special technology that can ignore magnetic fields that can cause false triggers. The “S” series proximity switches have a wide operating temperature range of -40 to 85°C, making them suitable for a wide range of applications.
