IFM IL/IS/IN/IW Series Inductive Proximity Sensor Switch

Inductive Proximity Sensor Switch, Proximity Sensor Switch, Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Pre-wired and quick disconnect

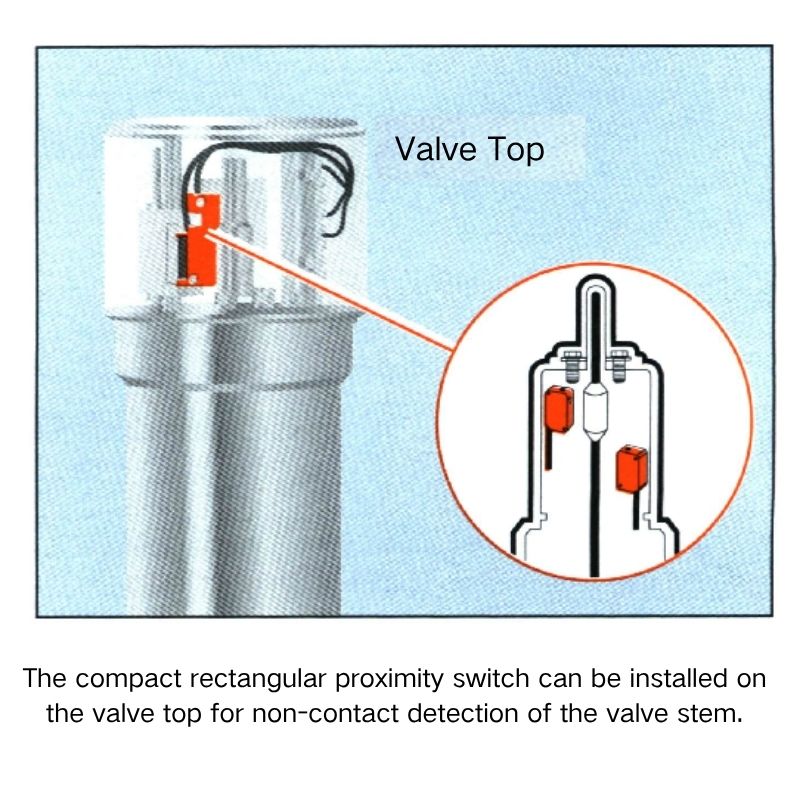

— Powerful compact proximity sensor switch, the compact rectangular proximity switch can be installed on the valve top for non-contact detection of the valve stem.

IFM IL/IS/IN/IW Series Inductive Proximity Sensor Switch

Technical Features

Small package, long sensing range! The compact design is an ideal choice for applications with limited installation space.

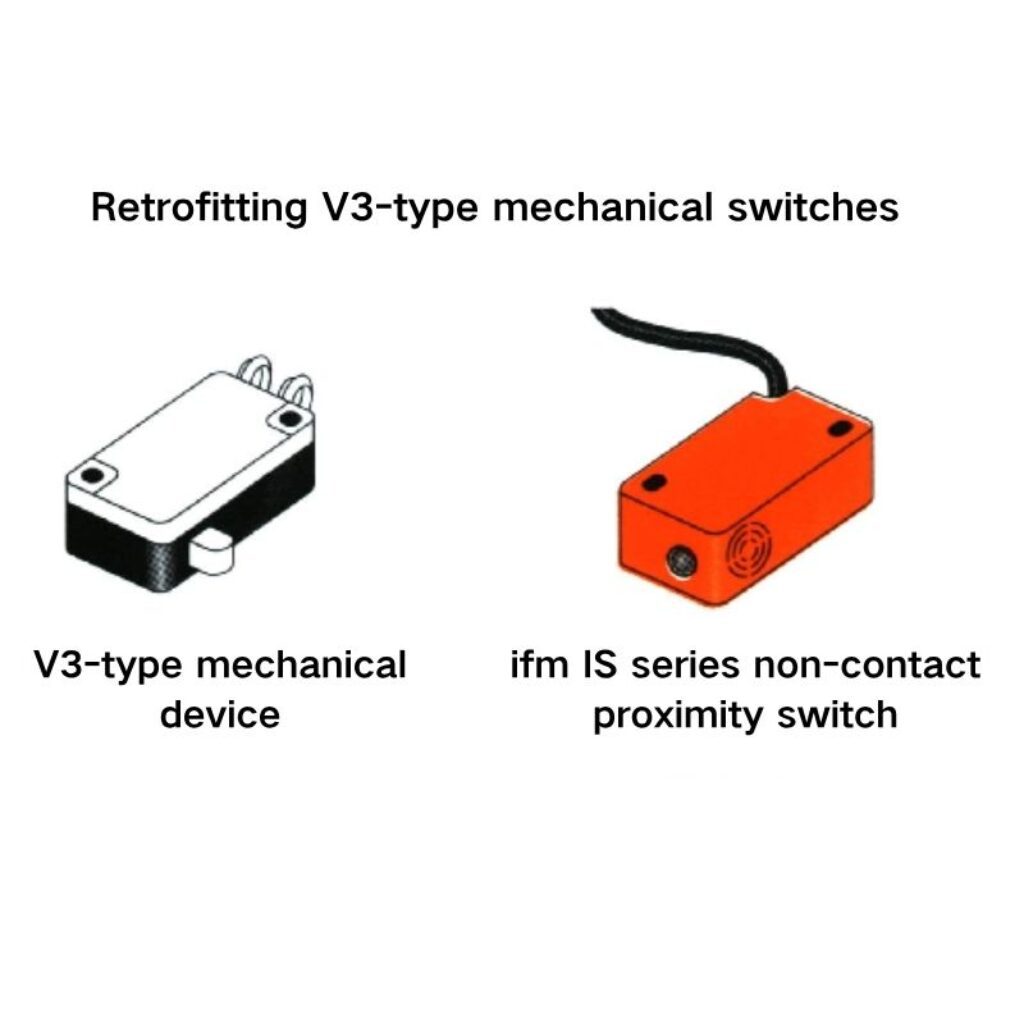

The proximity switch is a retrofit for a V3 mechanical switch, thereby extending uptime and shortening installation time.

Flexible wiring – the proximity switch is available with quick disconnect or a pre-wired 300 mm cable with an M8 Pico connector.

The rugged, industry-standard housing is specially designed and tested to withstand industrial automation environments.

Available in plastic or metal housings to meet different application needs.

Products + Accessories Selection:

Flat-pack sensor • K correction factor 1

Dimensions (mm)	Sensing range	No. of wires	Output function	Supply voltage (V DC)	Switching frequency (Hz)	Max. load current (mA)	Electrical connection	Order No.
40 x 8 x 8	2 mm, Flush	3	PNP, N.O.	10…36	2000	250	M8 Pico	IL5004
28 x 10 x 16	2 mm, Flush	3	PNP, N.O.	10…30	800	200	M8 Pico	IS5035
28 x 10 x 16	2 mm, Flush	3	PNP, N.O.	10…30	800	200	Pre-wired 2 m cable	IS5001
28 x 10 x 16	2 mm, Flush	3	NPN, N.O.	10…30	800	200	Pre-wired 2 m cable	IS5003
28 x 10 x 16	2 mm, Flush	2	PNP/NPN, N.O. / N.C.	5…36	2000	200	Pre-wired 2 m cable	IS5026
28 x 10 x 16	2 mm, Flush	3	PNP, N.O.	10…30	800	200	Pigtail 0.3 m cable, with M8 Pico	IS5068
40 x 12 x 26	2 mm, Flush	3	PNP, N.O.	10…36	1400	250	M8 Pico	IN5230
40 x 12 x 26	4 mm, Non-flush	3	PNP, N.O.	10…36	1300	250	M8 Pico	IN5212
40 x 12 x 26	2 mm, Flush	3	PNP, N.O.	10…36	1400	250	Pre-wired 2 m cable	IN5121
40 x 12 x 26	2 mm, Flush	3	NPN, N.O.	10…36	1400	250	Pre-wired 2 m cable	IN5125
40 x 12 x 26	4 mm, Non-flush	3	PNP, N.O.	10…36	1300	250	Pre-wired 2 m cable	IN5129
40 x 12 x 26	4 mm, Non-flush	3	NPN, N.O.	10…36	1300	250	Pre-wired 2 m cable	IN5133
60 x 36 x 10	8 mm, Non-flush	3	PNP, N.O.	10…36	300	250	M8 Pico	IW5064
60 x 36 x 10	8 mm, Non-flush	3	NPN, N.O.	10…36	120	250	Pre-wired 2 m cable	IW5008

Cable connectors

Description	Order No.
M8 Pico DC (3-pin) 2 m, PUR	EVC141
M8 Pico DC (3-pin) 5 m, PUR	EVC142
M8 Pico DC (3-pin) 10 m, PUR	EVC143
M8 Pico DC (3-pin) 2 m, PUR	EVC144
M8 Pico DC (3-pin) 5 m, PUR	EVC145
M8 Pico DC (3-pin) 10 m, PUR	EVC146

Specifications:

Protection rating:
- IP65: Models IL5004, IN5212, IW5064
- IP67: Models IN5121, IN5125, IN5129, IN5230, IN5133, IS5001, IS5003, IS5026, IS5035, IW5008
Operating temperature:
- -25…70 °C: Models IL5004, IS5001
- -25…80 °C: Models IN5121, IN5125, IN5129, IN5133, IN5212, IS5003, IS5026, IS5035, IW5008, IS5068
- -20…80 °C: Models IN5230, IW5064
Leakage current: Negligible; < 0.8 mA: Model IS5026
Housing material:
- Specially coated brass; Sensing face: LCP: Model IL5004
- PBT: Models IS5026, IN5121, IN5125, IN5129, IN5133, IN5212, IN5230, IS5001, IS5003, IS5035, IS5068, IW5008 and IW5064

Benefits introduce In Detail

Powerful compact proximity sensor switch

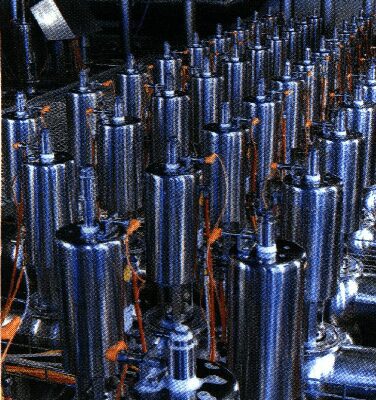

ifm efector’s small rectangular proximity switches are an ideal choice for detecting the switching position of rising stem valves. The IS series uses a special housing design and can directly replace V3-type mechanical devices. These proximity switches use standard inductive technology and are mounted on top of the valve for non-contact detection of the valve.

The ifm proximity switch is designed as a proximity switch system with surface-mount components on a flexible polyamide film. All components are carefully combined to expand or contract simultaneously, thereby minimizing the effects of thermal shock. The proximity switch has a protection rating of IP67 and is resistant to washdowns.
