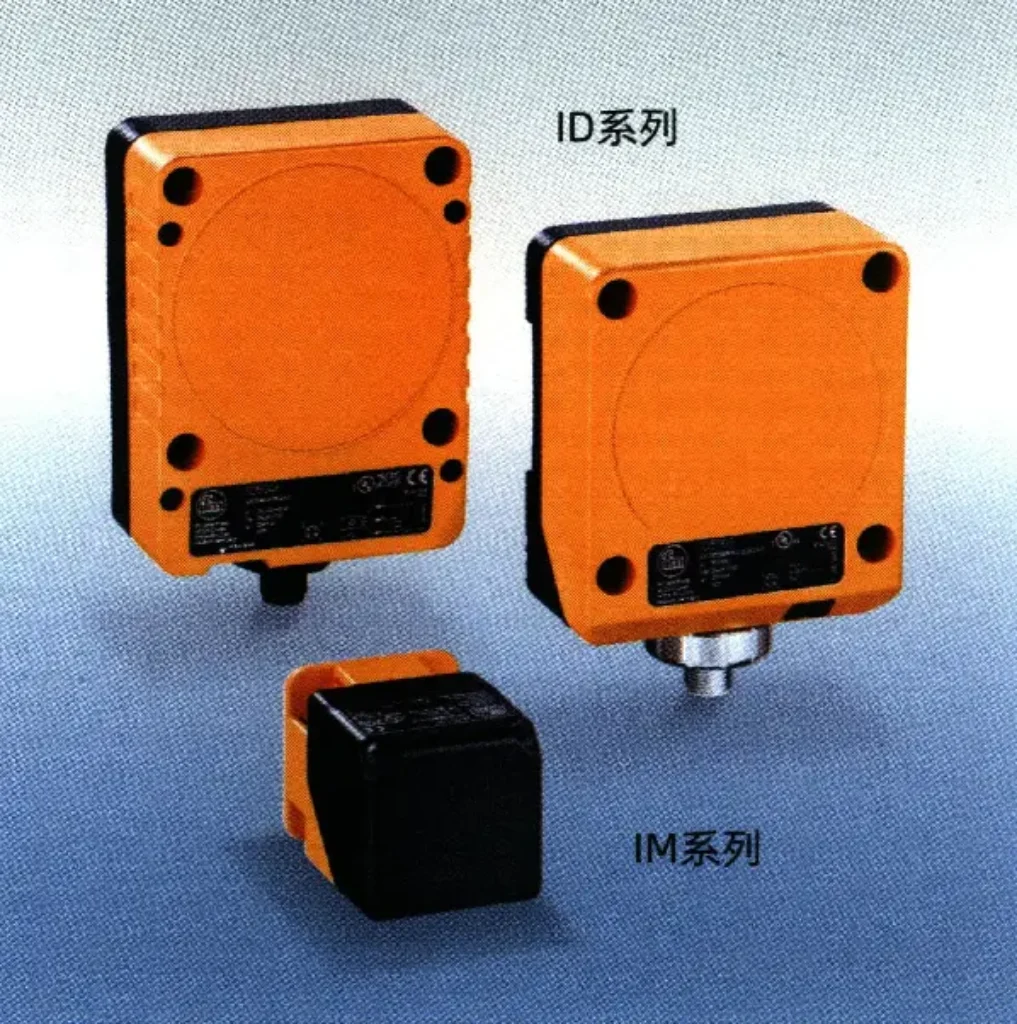

IFM IM00/ID00 Series Inductive Proximity Sensor Switch

Technical Features

The ID and IM series feature an enhanced sensing range, reducing failures caused by mechanical damage and extending operational uptime.

The sensing face of the IM series “Cube” can be rotated in 5 different directions for flexible application.

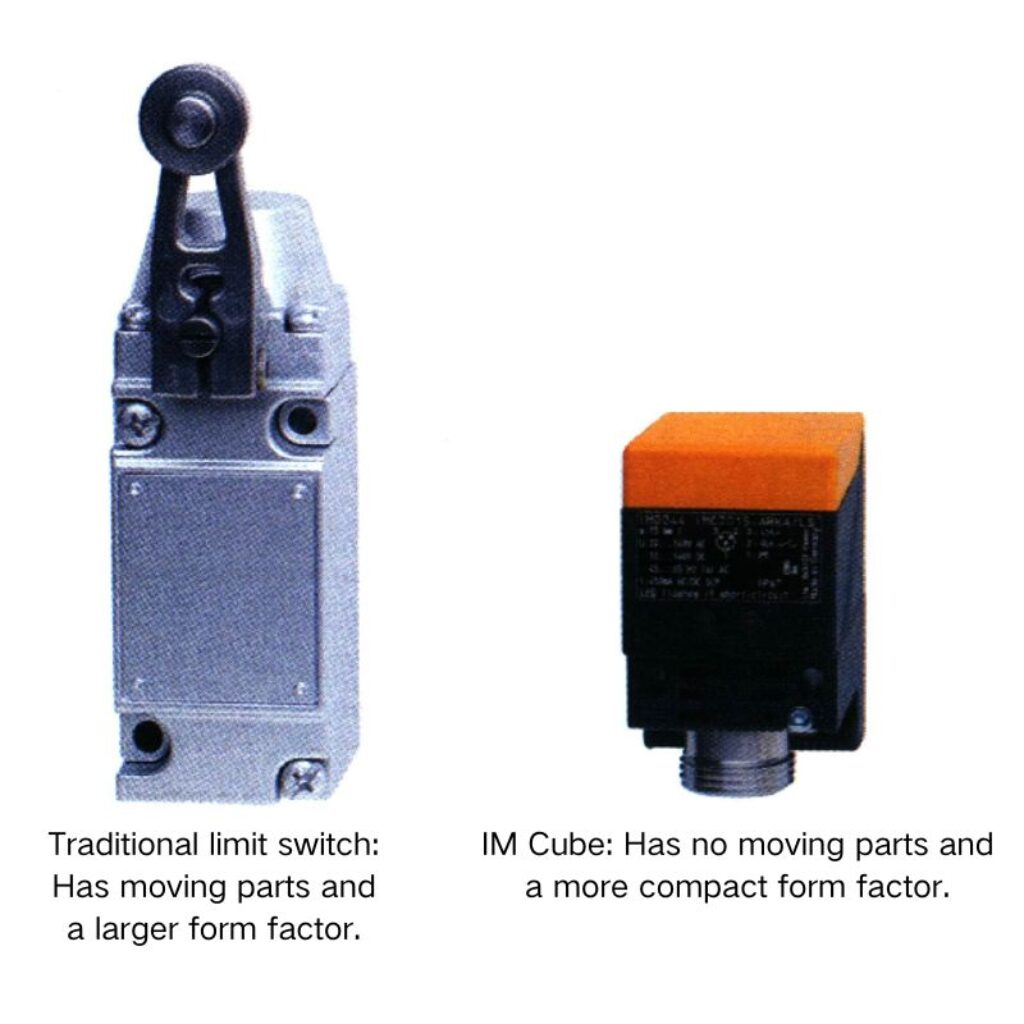

The IM “Cube” can be easily retrofitted in place of a limit switch using only half the space.

The IM “Cube” is equipped with two LEDs mounted in the corners to indicate power and switching status.

ID devices are equipped with a terminal box for convenient wiring of different lengths.

Products + Accessories Selection:

Dimensions (mm)	Sensing Range	Number of Cores	Output Function	Supply Voltage (V) AC/DC	Switching Frequency (Hz) AC/DC	Max. Load Current (mA) AC/DC	Sensor Terminal	Order No.
40 x 40 x 66	20 mm, Flush	2	N.O.	20…140	25 / 100	450	1/2″ Micro AC	IM0055
40 x 40 x 66	35 mm, Non-flush	2	N.O.	20…140	25 / 100	350	1/2″ Micro AC	IM0041
40 x 40 x 120	15 mm, Flush	2	Programmable N.O. / N.C.	20…250	20 / 55	350 (…50°C) 250 (…80°C) / 100	1/2″ NPT Terminal Box	IM0020
40 x 40 x 120	20 mm, Non-flush	2	Programmable N.O. / N.C.	20…250	20 / 55	350 (…50°C) 250 (…80°C) / 100	1/2″ NPT Terminal Box	IM0013
40 x 80 x 92	50 mm, Flush*	2	N.O.	20…140 AC / 10…140 DC	25	450	1/2″ Micro AC	ID0039
40 x 80 x 92	50 mm, Non-flush*	2	N.O.	20…140 AC / 10…140 DC	25	450	7/8″ Mini AC	ID0038
40 x 80 x 105	60 mm, Non-flush	2	Programmable N.O. / N.C.	20…250	4	350 (…50°C) 250 (…80°C) / 100	1/2″ NPT Terminal Box	ID0036

Mounting Accessories

Description	Order No.
Protective bracket for ID	E10730

Cable connectors

Description	Order No.
1/2″ Micro AC (3-pin) 2m, PUR	E12282
1/2″ Micro AC (3-pin) 10m, PUR	E12286
1/2″ Micro AC (3-pin) 5m, PUR	E10210

Specifications:

Protection class: IP67
Operating temperature: -25…70 °C
Leakage current [mA]:
- < 1.7: (Models IM0055, IM0041, ID0039, ID0038)
- < 2.5 (250 V AC) / < 1.3 (110 V AC) / < 0.8 (24 V DC): (Models IM0020, IM0013)
- < 2.5 (250 V AC) / < 1.3 (110 V AC) / < 1 (24 V DC): (Model ID0036)
Housing materials:
Main Housing: PPE
Sensing face: PPE
End cap: Die-cast zinc
Connector housing: Brass with special coating
Mounting bracket; Die-cast zinc; PPE: (for Model IM0055)
Connector housing: Brass
Mounting bracket; Die-cast zinc: (for Model IM0041)

Benefits introduce In Detail

Rugged rectangular proximity switches can easily replace limit switches

The ifm IM series rectangular inductive proximity switches are smaller and more robust than traditional limit switches, featuring an extended sensing range suitable for industrial automation applications. Both the ID and IM series proximity switches have an extended sensing range and can be placed far from the target, thus preventing mechanical damage. These proximity switches are an ideal choice for packaging production lines and conveying applications, equipped with bright LEDs to indicate power and output.
