IFM IN Series Valve Position Sensor

Sensor, Position Sensor, Valve Position SensorIFM

Deal Score0

2025/7/4 Update

Industrial Automation | DC
— The ifm efector IN series proximity sensors use a non-contact sensing principle, and because they have no moving parts, they are less prone to jamming, wear, or breakage. The IN series features a completely sealed design and is also not affected by water ingress.

IFM IN Series Valve Position Sensor

Technical Features

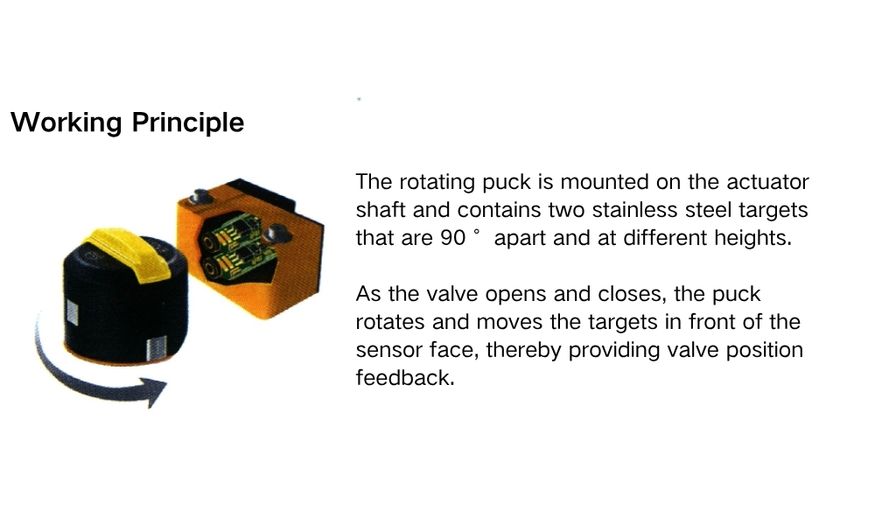

Inductive sensing technology provides non-contact detection of the valve position.

One sensor provides two outputs, indicating the open and closed positions respectively.

The sensor and target puck feature a compact design, with dimensions only 1/4 the size of a switch box.

Bright LEDs indicate if the valve is open or closed.

A fully sealed design with no open chambers prevents the influence of liquids.

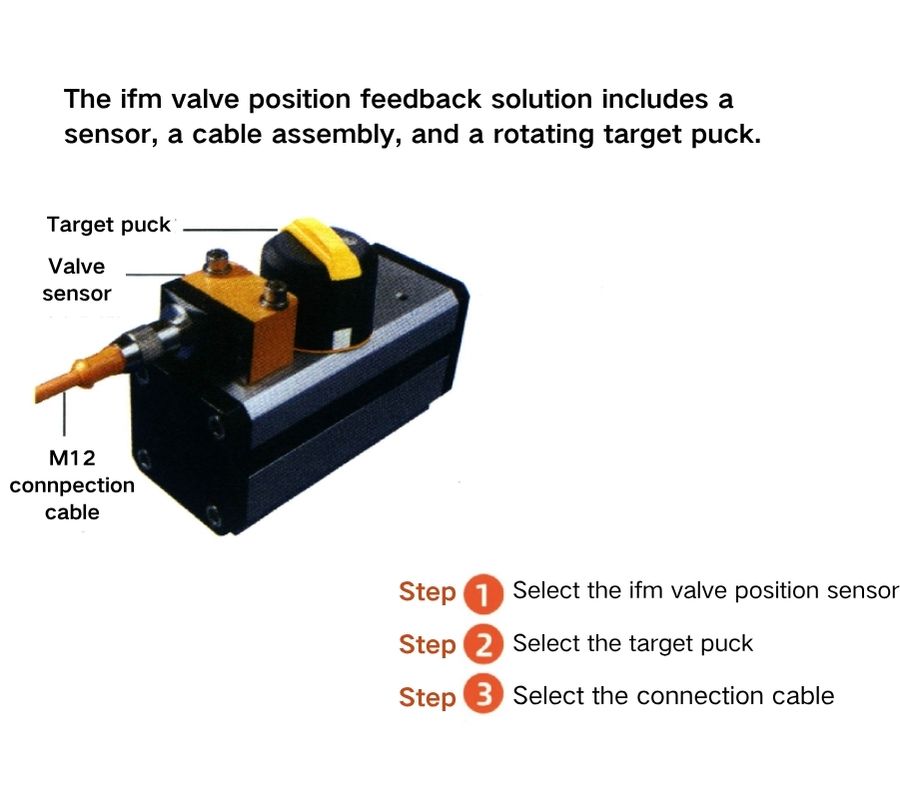

Products + Accessories Selection:

Dimensions (mm)	Output Function	Solenoid Valve Control Output	Power Supply Voltage (V)	Switching Freq. (Hz)	Max. Load Current (mA)	Electrical Connection	Order No.
40 x 26 x 47	2 x PNP, N.O.	No	10…36	1300	250	1 x M12	IN5327
60 x 33 x 92	2 x PNP, N.O.	Yes	10…30	500	100	2 x M12*	IN5417
40 x 26 x 26	2 x N.O.	No	20…140 AC / 10…140 DC	25	200	1 x 7/8″	IN0117
60 x 33 x 92	2 x PNP, N.O.	Yes	10…30	500	100	2 x Terminal box	IN5409
60 x 33 x 92	2 x N.O.	Yes	20…250 AC / 25 AC / 50 DC	25 AC / 50 DC	350 AC / 100 DC	2 x Terminal box	IN0131

*1 male M12 connector and 1 female M12 connector.
Sensing range: 4 mm, Non-flush, Protection class: IP67, Operating temperature: -25…80 °C (except for model IN0131: -25…70 °C).

Select the valve cover kit

Select the valve cover kit according to your ISO Namur actuator. The X and Y dimensions are the positions of the actuator mounting holes. The Z dimension is the height of the actuator shaft.

Conventional Sensor The cable and the mounting screw are on opposite sides of the housing. If the cable is pulled the sensor may become dislodged 4

Dimensions XxYxZ (mm)	Valve Cover Type	Valve Cover Mounting Screw Thread	Sensor Mounting Screw Thread	Order No.
80 x 30 x 20	Basic model	M6	10-24, 10-32, M5	E11257
80 x 30 x 20	Adjustable model	M6	10-24, 10-32, M5	E11256
130 x 30 x 30	Basic model	M6	10-24, M5	E17328
130 x 30 x 50	Basic model	M6	10-24, M5	E17329

Connection Cables

Type	Description	Order No.
Female Connector	M12 Micro DC (4-pin), 5 m, PVC	EVT001
	M12 Micro DC (4-pin), 10 m, PVC	EVT002
	M12 Micro DC (4-pin), 25 m, PVC	EVT003
Female Connector	7/8″ Mini AC (5-pin) 2 m, PVC	E18042
Female Connector	7/8″ Mini AC (5-pin) 4 m, PVC	E18043
Male Connector	M12 Micro DC (4-pin), 5 m, PVC	EVT072
Male Connector	M12 Micro DC (4-pin), 10 m, PVC	EVT073

IN5409 and IN0131 Accessories

Description	Order No.
Cable gland・M20 x 1.5 Housing material: PA 6.6	E12208
Protective cover・M20 x 1.5 Housing material: PA 6.6	E12209
Protective cap for screw channel (10 per pack)	E12212

What’s More…

Feature	Typical Switch Box	MVQ Smart Valve Sensor
Service Life	The switch box uses limit switches that may contact a cam to indicate valve position. These mechanical switches have moving parts that can potentially stick, break, or wear out.	The sensing technology has no moving parts that can wear out or break. Due to the non-contact operation, this sensor has a longer service life in the application.
Valve Position Feedback	Only provides 2 valve position feedbacks: open and closed.	The smart valve sensor monitors the precise movement of the valve and can indicate: valve open, valve closed, and warning.
Diagnostic Function	None.	Indicates via IO-Link: Valve not completely closed Valve seal damaged Valve movement obstructed
Dimensions	The switch box is tall and bulky, leaving only limited installation space for the valve.	The MVQ uses a compact design, with dimensions that are only a quarter of the switch box, thus saving valuable installation space.
Cost-Effectiveness	Typically, high long-term ownership costs due to annual replacement costs, shutdown maintenance costs, and preventive maintenance labor fees.	Because the sensor is solid-state and includes predictive valve diagnostics, it can reduce spare parts inventory, with savings far exceeding the $252 purchase price.

Benefits Introduce In Detail

Quarter-turn valve position sensors

Quarter-turn valves with pneumatic actuators are used for process control in the industrial automation sector. Typical applications for these devices include tank farms, diverter valves, valve-tanks, and valve blocks.

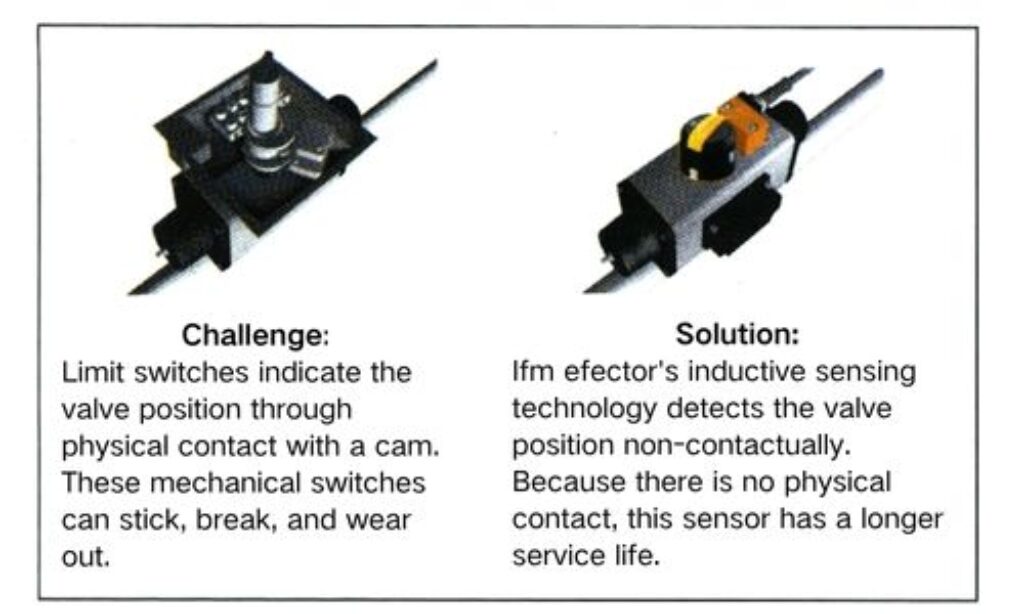

Traditional valve position feedback solutions use large switch boxes. These high-maintenance kits are mounted on top of the actuator and use mechanical devices and cams to indicate the valve position. Because the mechanical arms must come into contact with the cams, they can potentially stick, chatter, or experience true breakage. If water enters the switch box, other problems can also occur, such as collisions, signal loss, and short circuits.

Conventi2onal Sensor The cable and the mounting screw are on opposite sides of the housing. If the cable is pulled the sensor may become dislodged 1

The ifm efector IN series proximity sensors use a non-contact sensing principle, and because they have no moving parts, they are less prone to jamming, wear, or breakage. The IN series features a completely sealed design and is also not affected by water ingress.
