IFM KG/KI/KQ Type Water Level Sensor

Deal Score+2

Non-Contact Capacitive Point Level Detection
— Used for detecting through non-metallic tank walls.

KG/KI Type Level Sensor Features&Spec

Capacitive sensor with cylindrical M18 or M30 housing.

Protection rating: IP65 to IP69K.

Resists electromagnetic interference up to 30,000V.

Withstands medium temperatures up to 110°C.

12-digit LED display for optimal switch point setting (KG/ KI6000).

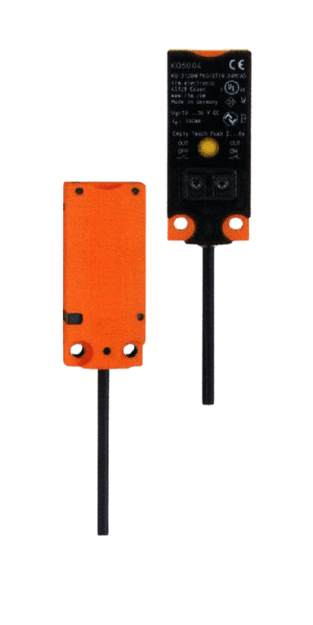

Capacitive sensor in a small, plastic rectangular housing.

Easy to install, includes mounting adapter and fixing strap.

Convenient: Features multiple functions, such as binary switching output, timed output, damping output settings, as well as normally closed/normally open and window functions.
Communication: Process values, parameter settings, and diagnostic information can be transmitted and evaluated via IO-Link.
Simple: Parameters can be set via IO-Link before installation, or they can be configured using the buttons on the sensor itself.
Repeatable: Easily set up multiple sensors by “copying and pasting” within the LR DEVICE software or by using a memory plug that stores the data.
Perfect: Equipped with a visible LED display for simple switch point setting.

IFM Water Level Sensor Switches – Complete Model Overview

Sensor Model	Maximum Measurement Range [cm]	Analog Output	Switch Output	Certifications
LMT, LMC	–	–	✔	EHEDG, 3A, FDA EC 1935, WHG+ ATEX
LI	–	–	✔	WHG*
KG, KI, KQ	–	–	✔	–
LK, LT	73	✔	✔	WHG*
LR	200	✔	✔	EHEDG, 3A, FDA EC 1935, WHG+
PG, PI, PA, PN	–	✔	✔	EHEDG, 3A, FDA EC 1935, ATEX
UGT	220	✔	✔	–
