IFM KT5000 Series Capacitive Proximity Sensor Switches

IFM KT5000 Series Touch Capacitive Proximity Sensor Switch

Proximity Sensor Switch, Capacitive Proximity Sensor Switch, Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Palm-actuated disc

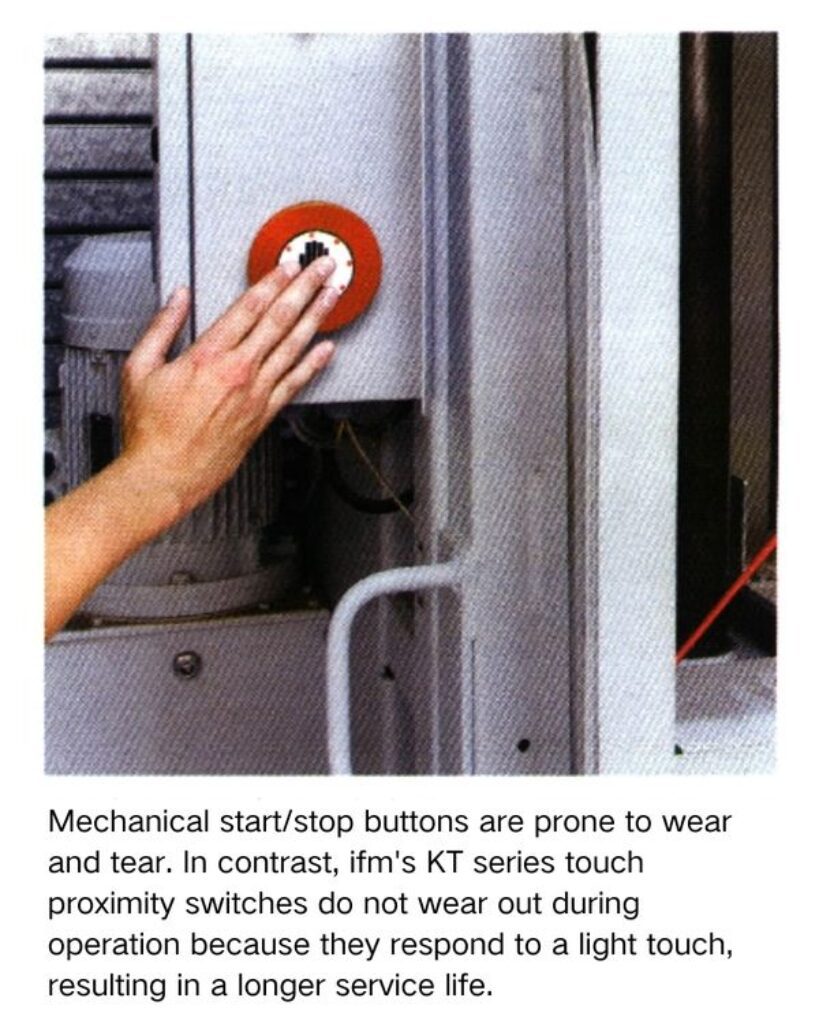

— DC | Quick Disconnect, mechanical start/stop buttons are prone to wear and tear. In contrast, ifm’s KT series touch proximity switches do not wear out during operation because they respond to a light touch, resulting in a longer service life.

IFM KT5000 Series Touch Capacitive Proximity Sensor Switch

Technical Features

A reliable alternative to mechanical or photoelectric touch switches, using dynamic and static sensing principles.

With an ergonomic design, it can be operated with a single finger or the palm of the hand.

The rugged polycarbonate housing is resistant to impact and wear, with a protection rating up to IP69K.

The dynamic sensing principle can ignore material build-up on the sensing face.

Provides visual feedback via a switch-status LED.

Products + Accessories Selection:

Product Variations

Operating Principle	Output Function	Connection	Order No.
Dynamic	PNP, N.O.	2 m PUR cable	KT5001
Dynamic	PNP, N.O.	2 m PUR cable, Green LED controllable via pin 2	KT5009
Dynamic	PNP, N.O.	0.3 m PUR cable, with M8 pigtail	KT5002
Dynamic	NPN, N.O.	0.3 m PUR cable, with M8 pigtail	KT5007
Static	PNP, N.O.	2 m PUR cable	KT5005
Static	PNP, N.O.	0.3 m PUR cable, with M8 pigtail	KT5006

Includes a green disc. Optional discs must be ordered separately.

Optional Accessories (order in pairs)

Description	Order No.
Disc, Yellow	E80372
Disc, Green	E80373
Disc, Red	E80374
Disc, Blue	E80375
Disc, Orange	E80376

Connecting Cables

Description	Order No.
M8 Pico DC (4-pin), 2 m, PUR	EVC150
M8 Pico DC (4-pin), 5 m, PUR	EVC151
M8 Pico DC (4-pin), 2 m, PUR	EVC153
M8 Pico DC (4-pin), 5 m, PUR	EVC154

Specifications:

Operating voltage: 12…36 V DC
Current consumption: 30 mA
Operating temperature: -40…85 °C
Protection class: IP67 / IP69K (front face)

Benefits Introduce In Detail

Capacitive Touch Sensor for Starting/Stopping Machines with a Light Touch of the Palm

Machine operators often need to start/stop their factory equipment by simply pushing or pressing large buttons. Traditional mechanical start/stop buttons are widely used, but this equipment is prone to wear and tear. ifm now offers the KT series of capacitive touch sensors, which operate using non-contact sensing and solid-state circuitry. With this design, the KT touch sensor responds to just a single finger or the palm of the hand, giving it an ergonomic advantage.

Designed for a Long Service Life

The rugged housing of the KT series is made of scratch-resistant polycarbonate. These fully sealed devices have a protection rating of IP69K, which prevents oil ingress and allows them to ignore material build-up on the sensing face.

Dynamic and Static Principles for Reliable Operation

ifm offers two types of devices for start/stop control.

The KT sensor with the dynamic principle provides a 300 mS output signal upon being touched. This principle allows the sensor to ignore material build-up on the sensing face and suppresses interference from water, ice, or particles that may adhere to the sensor surface. It can even be triggered when the operator is wearing gloves.
The output of a KT sensor using the static principle remains on as long as the sensing face is being touched.

Simple Installation

The KT touch sensor can be easily installed directly on walls or other areas using a specially designed L-shaped bracket. The discs are available in several colors and can be configured according to functional requirements.
