IFM MK5300 Series Cylinder Sensor

Deal Score0

2025/7/4 Update

T-Slot Sensors
— DC | Pre-wired and Quick Disconnect, ifm’s small C-slot sensors include flush-mount and non-flush-mount models. Flush-mount sensors are designed for standard C-slot pneumatic cylinders. Non-flush-mount sensors can be easily installed on small grippers or short-stroke cylinders.

IFM MK5300 Series Cylinder Sensor

Technical Features

Magnetic C-slot sensors have no moving parts, enabling reliable detection.

Fast installation! The sensor can be easily slid into the top of the cylinder, eliminating the need to remove the end caps.

Excellent repeat accuracy and fast response extend normal operating times.

Unlimited switching cycles extend service life.

The dual cylinder sensor version simplifies wiring – only 2 sensor elements.

Suitable for all pneumatic cylinders with a 4 mm C-slot.

Products + Accessories Selection:

Type	Number of Cores	Output Function	Power Supply Voltage (V DC)	Switching Freq. (Hz)	Max. Load Current (mA)	Electrical Connection	Order No.
Flush-mount sensors, for standard C-slot pneumatic cylinders	3	PNP, N.O.	10…30	5000	100	M8 snap-on, 0.3 m pigtail	MK5326
	3	NPN, N.O.	10…30	10,000	100	M8 snap-on, 0.3 m pigtail	MK5308
	3	PNP/NPN, N.O.	10…30	4000	100	M8 snap-on, 0.3 m pigtail	MK5362
	3	PNP, N.O.	10…30	5000	100	M8 screw-type, 0.3 m pigtail	MK5328
	3	PNP, N.O.	10…30	10,000	100	M12 screw-type, 0.3 m pigtail	MK5314
	3	PNP/NPN, N.O.	10…30	4000	100	M12 screw-type, 0.3 m pigtail	MK5363
	3	PNP, N.O.	10…30	5000	100	2 m pre-wired cable	MK5325
	3	NPN, N.O.	10…30	10,000	100	2 m pre-wired cable	MK5309
	3	PNP/NPN, N.O.	10…30	4000	100	2 m pre-wired cable	MK5365
	3	PNP, N.O.	10…30	5000	100	M8 screw-type, 0.3 m pigtail	MK5350
	3	PNP, N.O.	10…30	5000	100	M12 screw-type, 0.3 m pigtail	MK5351
Non-flush-mount sensors, for small grippers and short-stroke cylinders	3	PNP, N.O.	10…30	10,000	100	M8 snap-on, 0.3 m pigtail	MK5353
	3	PNP, N.O.	10…30	5000	100	M8 snap-on, 0.3 m pigtail	MK5330
	3	NPN, N.O.	10…30	10,000	100	M8 snap-on, 0.3 m pigtail	MK5307
	3	PNP, N.O.	10…30	5000	100	M8 screw-type, 0.3 m pigtail	MK5331
	3	PNP, N.O.	10…30	10,000	100	M12 screw-type, 0.3 m pigtail	MK5304
	3	PNP, N.O.	10…30	5000	100	2 m pre-wired cable	MK5329
	3	NPN, N.O.	10…30	10,000	100	2 m pre-wired cable	MK5306
	3	PNP, N.O.	10…30	10,000	100	M8 snap-on, 0.3 m pigtail	MK5352

Connection Cables

Description	Order No.
M8 Pico DC (3-pin) 2 m, PUR	EVC141
M8 Pico DC (3-pin) 5 m, PUR	EVC142
M8 Pico DC (4-pin) 2 m, PUR	EVC150
M8 Pico DC (4-pin) 5 m, PUR	EVC151
M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002

Specifications:

Voltage drop: 2.5 V
Minimum load current: N/A
Leakage current: Negligible
Operating temperature: -25…85 °C
Protection class: IP67
Cable sheath material: PUR
Magnetic field sensitivity:
- 2.0 mT; e.g., Models MK5304, MK5306, MK5307, MK5308, MK5309, MK5314: 2.8 mT
Travel speed: > 10 m/s
Repeat accuracy: < 0.2 mm
Housing material: PA (Nylon); Stainless steel

What’s More…

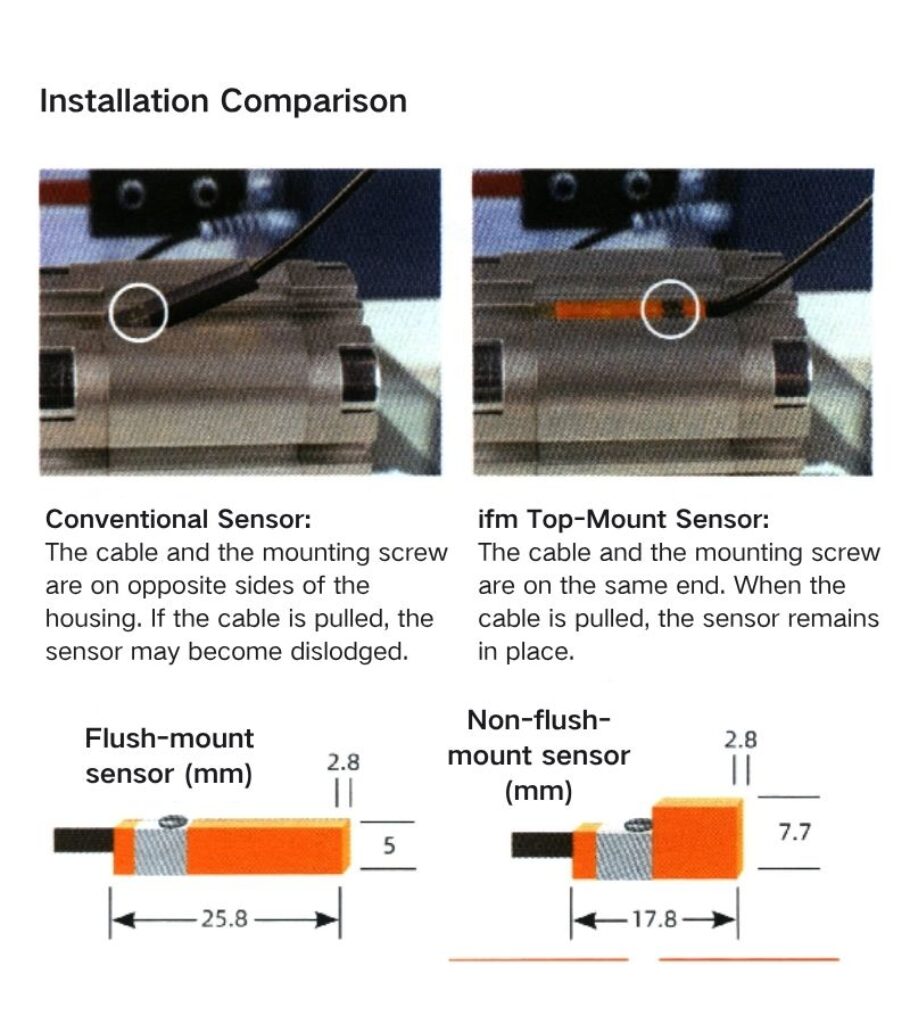

Conve1ntional Sensor The cable and the mounting screw are on opposite sides of the housing. If the cable is pulled the sensor may become dislodged

Benefits Introduce In Detail

Compact housing, simple installation

ifm’s small C-slot sensors include flush-mount and non-flush-mount models. Flush-mount sensors are designed for standard C-slot pneumatic cylinders. Non-flush-mount sensors can be easily installed on small grippers or short-stroke cylinders.

	Reed Switch	ifm Solid State	Advantages of Solid State
Durability	Low (1-2 million cycles)	High (Unlimited cycles)	ifm’s pneumatic sensors can be switched an unlimited number of times. Reed switches often need to be replaced several times during the life of the cylinder.
Repeat Accuracy	Low	High	Provides excellent repeat accuracy. Mechanical wear on reed switches can lead to switching point drift.
Response Time	Low	High	Fast response. Reed switches are slower and cannot maintain precision in high-speed applications.
Sensitivity	Low	High	Reliable operation even with weak magnetic fields. Reed switches require a strong magnetic field for detection.
Temperature Stability	High	High	Extremely stable characteristics over a wide operating temperature range.
Service Life	Low	High	Not affected by long-term magnetic fields. Reed switch contacts may become magnetized over time.
