IFM O2D 200 Series Vision Sensor

Deal Score0

2025/7/4 Update

Contour vision sensor｜DC Error-proofing application
— The efector dualis can be used reliably in production control. With its fast image acquisition and evaluation capabilities, it can accurately detect and evaluate fast-moving objects.

IFM O2D 200 Series Vision Sensor

Technical Features

Robust design and compact metal housing enable long service life and reliability in industrial environments.

The CMOS image sensor and digital signal processor have no moving parts, featuring high performance and durability.

A simple and easy-to-use setup wizard guides you step-by-step to easily complete commissioning.

Flexible wiring with an Ethernet interface.

Standalone unit (internal illumination).

Products + Accessories Selection:

Dimensions	Output	Illumination	Maximum field of view	Detection frequency	Maximum motion speed	Operating voltage	Power supply current	Order No.
60 x 42 x 59	PNP	Infrared light 850 nm	400 x 300 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D224
60 x 42 x 53.5	PNP	Infrared light 850 nm	640 x 480 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D220
60 x 42 x 53.5	PNP	Infrared light 850 nm	1320 x 945 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D222
60 x 42 x 59	NPN	Infrared light 850 nm	400 x 300 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D225
60 x 42 x 53.5	NPN	Infrared light 850 nm	640 x 480 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D227
60 x 42 x 53.5	NPN	Infrared light 850 nm	1320 x 945 mm	20 Hz	1 m/s	24 VDC ± 10%	< 300 mA	O2D229

Optional Accessories

Type	Description	Order No.
	Mounting kit, 100 mm mounting rod	U60042
Mounting kit, 100 mm mounting rod, with guide rail mounting block	U60043
	Plastic protective cover	E21166
Plastic lens for diffuse reflector light source	E21165
Glass protective cover	E21168

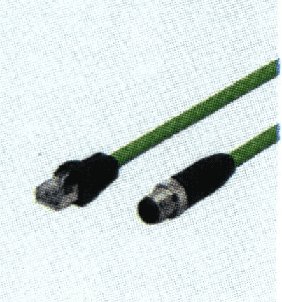

	Ethernet cable, 2 m, M12 D-coded/RJ45, crossover cable	E1898
Ethernet cable, 5 m, M12 D-coded/RJ45, crossover cable	E18422
Ethernet cable, 10 m, M12 D-coded/RJ45, crossover cable	E18423

Mating cables

Type	Description	Order No.
	M12 Micro DC (8-pin) 2 m, PUR	E11950
M12 Micro DC (8-pin) 5 m, PUR	E11807
M12 Micro DC (8-pin) 10 m, PUR	E11311
	M12 Micro DC (8-pin) 2 m, PUR	E11231
M12 Micro DC (8-pin) 5 m, PUR	E11232
M12 Micro DC (8-pin) 10 m, PUR	E11806

Specifications:

Technical Specifications
Maximum load current: 100 mA (per switching output)
Power supply current: < 300 mA
Detection frequency: 20 Hz
Maximum motion speed: 1 m/s
Illumination: Infrared light 850 nm
Operating voltage: 24 VDC ± 10%
Operating temperature: -10…60 °C
Protection class: IP67
Material:
- Housing: Die-cast zinc
- Front panel: Glass
- LED window: Polycarbonate
Trigger mode: External 24 V, PNP, NPN, continuous, TCP/IP
Parameter setting/Process interface: Ethernet 10 Base-T, Ethernet TCP, Ethernet IP

What’s More:

Integrated Intelligence

image 2025 07 23T113114.025 — **Standalone evaluation:** The efector dualis uses a robust housing suitable for industrial applications, and includes a graphic sensor, an electronic evaluation unit, and integrated illumination.

Benefits Introduce In Detail

Contour vision sensor for error-proofing applications

The efector dualis can be used reliably in production control. With its fast image acquisition and evaluation capabilities, it can accurately detect and evaluate fast-moving objects.

This sensor is very suitable for inspection and error-proofing applications, such as correct/incorrect part, correct orientation, missing parts, and object feature verification.

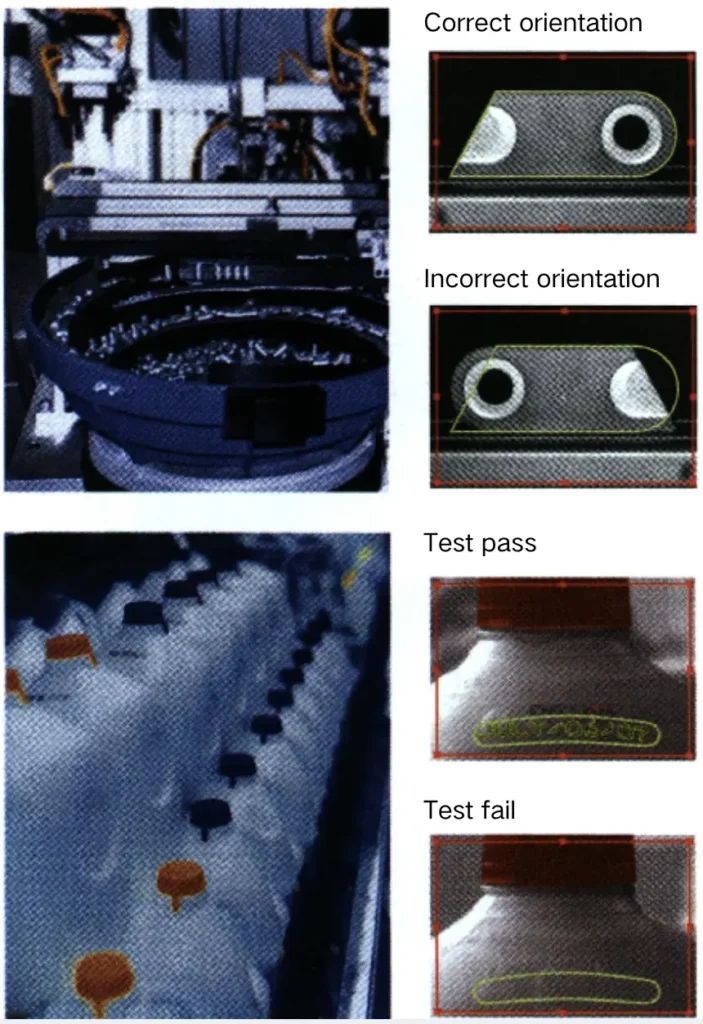

Other application examples

Feeding technology

Feeders are often used to reliably supply small parts to assembly lines. However, the orientation of these parts must be correct to achieve proper assembly.

The efector dualis can identify the incorrect orientation of parts in the feeder before they are fed.

Object feature verification

Even small errors (e.g., a milk bottle without a production date) can cause major problems on the production line. The efector dualis is very suitable for object feature verification on moving production lines.

In this example, the efector dualis detects a series of preset features that indicate the expiration date. In the figure, the efector dualis detects the missing feature and issues an alarm.
