IFM O2D900 Series Vision Sensor

Deal Score0

2025/7/4 Update

Light sources for vision sensors｜DC
—New Product! The ifm vision sensor’s onboard illumination elements provide illumination for objects and can provide the correct image brightness in different ranges.

IFM O2D900 Series Vision Sensor

Technical Features

Uniform and shadow-free object illumination

Constant or pulsed light source, with optional high-intensity lamp

White, red, and infrared light source versions

Compact design and robust housing

Diffusers can be provided to achieve “cloudy day” illumination to balance the light source

Products + Accessories Selection:

Type	Dimensions [mm]	Light source type	Effective light source size [Ø mm]	Current consumption [mA]	Aperture angle	Protection class	Connector	Order No.
Spotlight
	42 x 42 x 31	Red light		180 / 90*		IP 65	M12	O2D909
Backlight
	33.4 x 66.5 x 9.2	Red light		50 / 25*		IP 65	0.15 m cable with 4-pin M12	O2D906
	81 x 103 x 9.2	Red light		200 / 100*		IP 65	0.15 m cable with 4-pin M12	O2D907
	133 x 156 x 9.2	Red light		450 / 250*		IP 65	0.15 m cable with 4-pin M12	O2D908
Ring light
	Ø 122 x 20.5	Red light	Ø 106 / Ø 66	800 / 1300*	60°	IP 65	0.3 m cable with 4-pin M12	O2D915
	Ø 122 x 20.5	Infrared light	Ø 106 / Ø 66	800 / 1400*	50°	IP 65	0.3 m cable with 4-pin M12	O2D917
	Ø 122 x 20.5	White light	Ø 106 / Ø 66	800 / 1200*	120°	IP 65	0.3 m cable with 4-pin M12	O2D919
Bar light
	116 x 18 x 13	Red light	10 x 75	225 / 375*	60°	IP 65	0.3 m cable with 4-pin M12	O2D921
	200 x 18 x 13	Red light	10 x 150	460 / 700*	60°	IP 65	0.3 m cable with 4-pin M12	O2D924
	116 x 18 x 13	Infrared light	10 x 75	185 / 325*	50°	IP 65	0.3 m cable with 4-pin M12	O2D922
	200 x 18 x 13	Infrared light	10 x 150	415 / 640*	50°	IP 65	0.3 m cable with 4-pin M12	O2D925
	116 x 18 x 13	White light	10 x 75	165 / 275*	120°	IP 65	0.3 m cable with 4-pin M12	O2D923
	200 x 18 x 13	White light	10 x 150	265 / 475*	120°	IP 65	0.3 m cable with.align:center;”>4-pin M12	O2D926
Dark field illumination device
	155 x 130 x 9.8	Red light	Ø 90	400		IP 54	0.3 m cable with 4-pin M12	O2D920
*Current consumption at high light intensity

Optional Accessories

Type	Description	Order No.

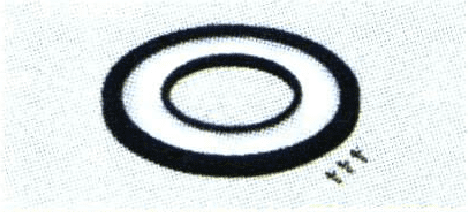

	Ring light diffuser	E2D202

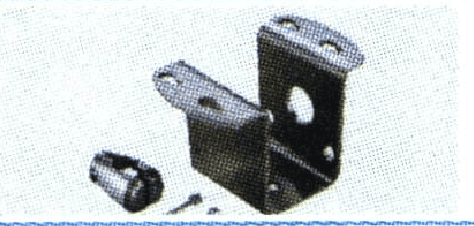

	Ring light mounting kit	E2D201
	Bar light mounting kit	E2D114

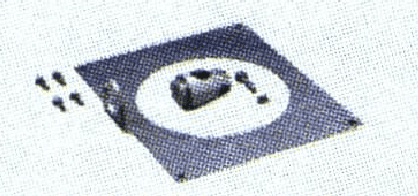

	Dark field illumination device mounting kit	E2D115

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Light source: LED
Operating voltage: 24 V DC
Ambient temperature: -10…55 °C
Housing material: Aluminum
Lens material: Glass
Trigger: 5…24 V, PNP
Polarity reversal protection: Yes
Short-circuit protection: Yes
Mounting type: M4 screw
Eye safety: IEC 62471

Benefits Introduce In Detail

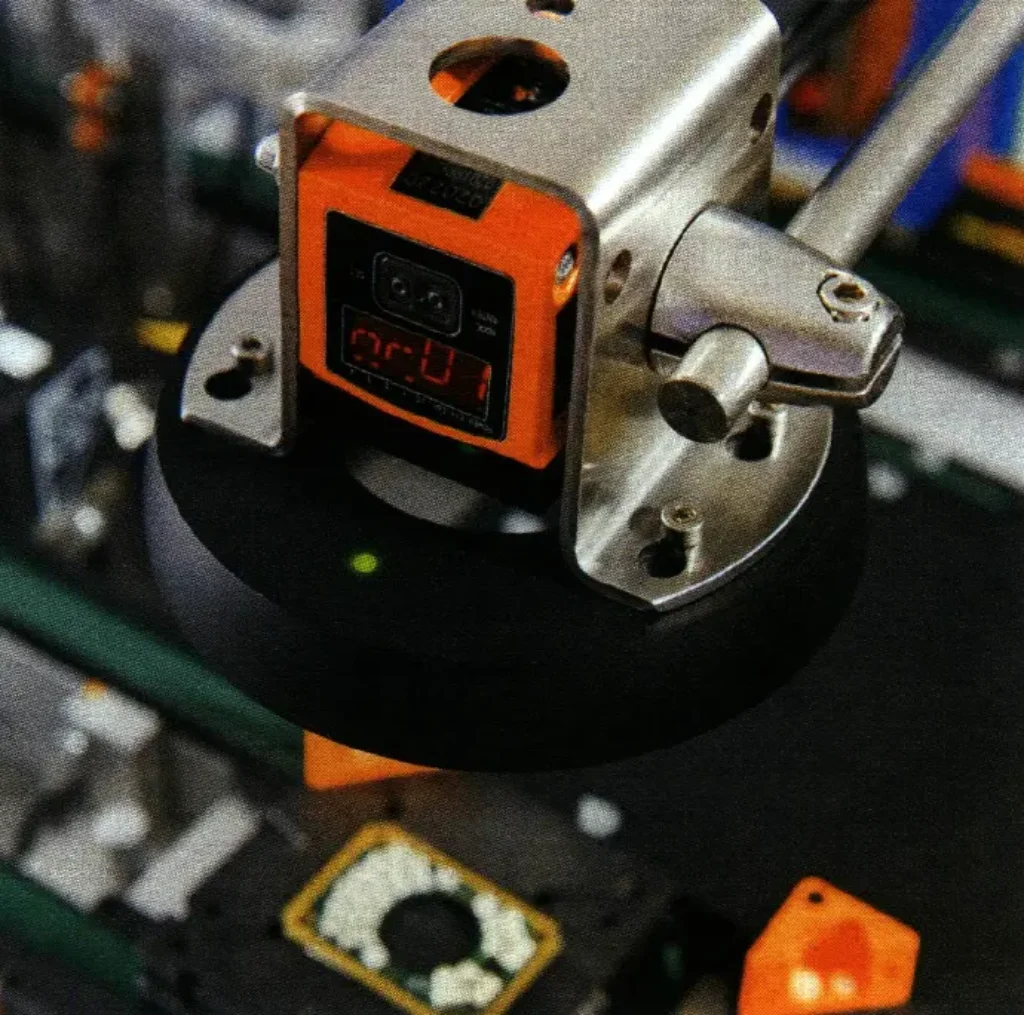

New Product! The ifm vision sensor’s onboard illumination elements provide illumination for objects and can provide the correct image brightness in different ranges.

However, some applications may require additional illumination. For example, detecting specific surface features (such as dot-peened marks, scratches, or cracks) may require a high-intensity lamp. In contour sensors, sometimes there is not enough contrast between the object and the background. A backlight may be needed to help highlight the object in the background.

ifm’s high-quality LED light sources can provide uniform illumination to solve a wide range of application needs. We can provide white, red, and infrared versions of spotlights, backlights, ring lights, bar lights, and dark-field illumination devices.

A wide variety of mounting kits allow for quick and simple installation.
