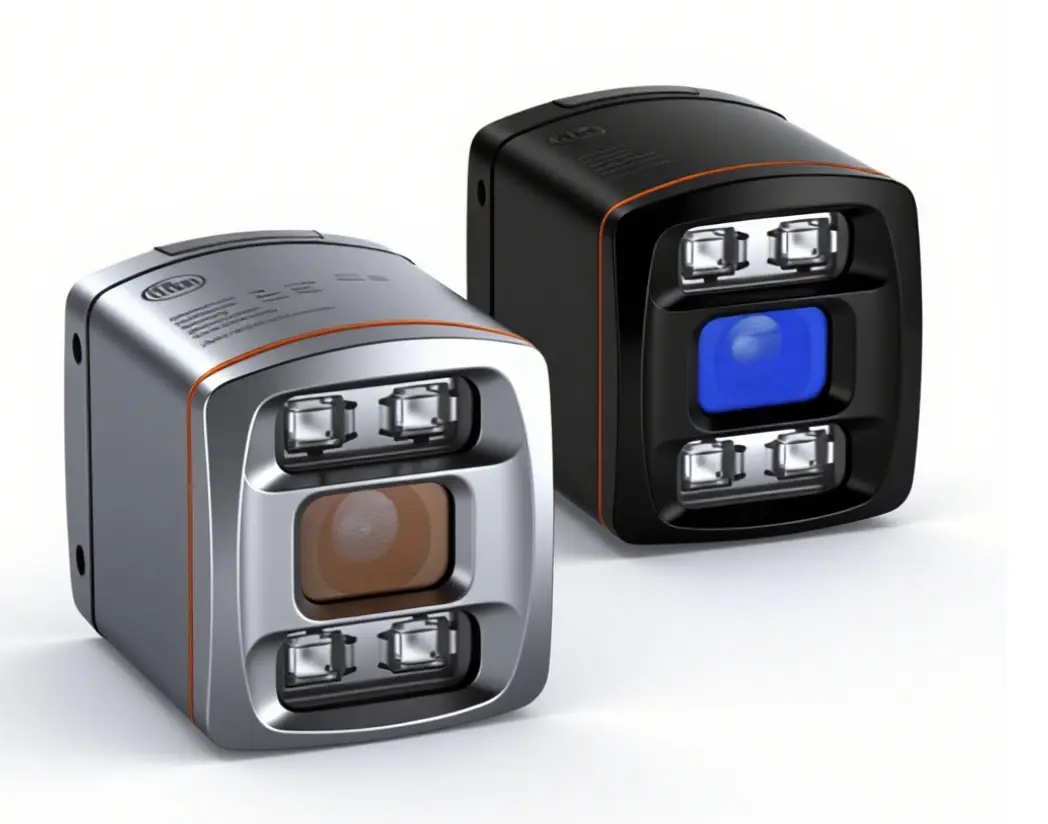

IFM O3D300 Series Vision Sensor

Deal Score0

2025/7/4 Update

3D Smart Sensor｜DC
—New Product! ifm’s revolutionary O3D smart sensor, aimed at the industrial automation sector, enables automated machines to perceive their surroundings in three dimensions, just like humans.

IFM O3D300 Series Vision Sensor

Technical Features

Includes six onboard applications: 1.Target object quantity completeness check 2.Case dimensioning 3.3D space material level detection 4.Volume usage rate detection 5.Robot-automated depalletizing guidance 6.Robot-automated target object pick-up guidance

Robust, industrial-grade O3D smart sensor – provides machines with a third-dimension application assistant.

The objective lens housing is made of Corning Gorilla Glass, defining a large field of view.

4 infrared LEDs can provide illumination for a large field of view within a range of 0.3 to 5 meters, and are protected by Corning Gorilla Glass.

M12 Ethernet connection for parameter setting and communication outputs data via Industrial Ethernet (TCP/IP; PROFINET; EtherNet/IP).

Products + Accessories Selection:

Dimensions	Working distance (mm)	Aperture angle	Maximum field of view (mm)	Weight (kg)	Order No.
72 x 67.1 x 82.6	300…10,000	40° x 30°	2,610 x 3,470	0.803	O3D300
72 x 65 x 82.6	300…8,000	60° x 45°	3,750 x 5,000	0.803	O3D302
72 x 65 x 82.6	300…8,000	60° x 45°	3,750 x 5,000	1.212	O3D312
72 x 67.1 x 82.6	300…10,000	40° x 30°	2,610 x 3,470	1.217	O3D310

Optional Accessories

Type	Description	Order No.
	Mounting kit for mounting rod Ø 14 mm	E3D301

Mating Cables

Type	Description	Order No.
	M12 Micro DC (8-pin) 2 m, PUR	E11231
M12 Micro DC (8-pin) 5 m, PUR	E11232
	M12 Micro DC (8-pin) 2 m, PUR	E11950
M12 Micro DC (8-pin) 5 m, PUR	E11807
	Ethernet cable, 2 m, M12 D-coded/RJ45, crossover cable	E1898
Ethernet cable, 5 m, M12 D-coded/RJ45, crossover cable	E18422
Ethernet cable, 10 m, M12 D-coded/RJ45, crossover cable	E18423

Specifications:

Maximum load current: 100 mA
Power consumption:
- Peak pulse current < 2400; typical average value 420;
- Maximum average value 1600 mA
Image repetition rate: ≤ 25 Hz
Illumination: Infrared LED 850 nm; invisible light-emitting diode radiation
Operating voltage: 20.4…28.8 DC; conforms to EN 61131-2 standard
Operating temperature: -10…50 °C
Protection class:
- O3D300 and O3D302: IP65, IP67
- O3D310 and O3D312: IP65, IP67 and IP69K
Material:
- Lens window: Corning Gorilla Glass
- Housing: O3D300 and O3D302 die-cast aluminum
- O3D310 and O3D312 stainless steel
Parameter setting / Process interface: Ethernet TCP, Ethernet IP: 10Base-T / 100Base-TX

Benefits Introduce In Detail

New Product! To meet customer demands, today’s production and logistics environments are becoming increasingly automated. Whether it’s robots or machines, the various tools used must be faster and more flexible to maintain high efficiency. This requires them to be able to “see” more information. Two dimensions are no longer enough. They must perceive their surroundings in three dimensions, just like humans.

ifm’s revolutionary O3D smart sensor, aimed at the industrial automation sector, enables automated machines to perceive their surroundings in three dimensions, just like humans.

Innovative pmd imager

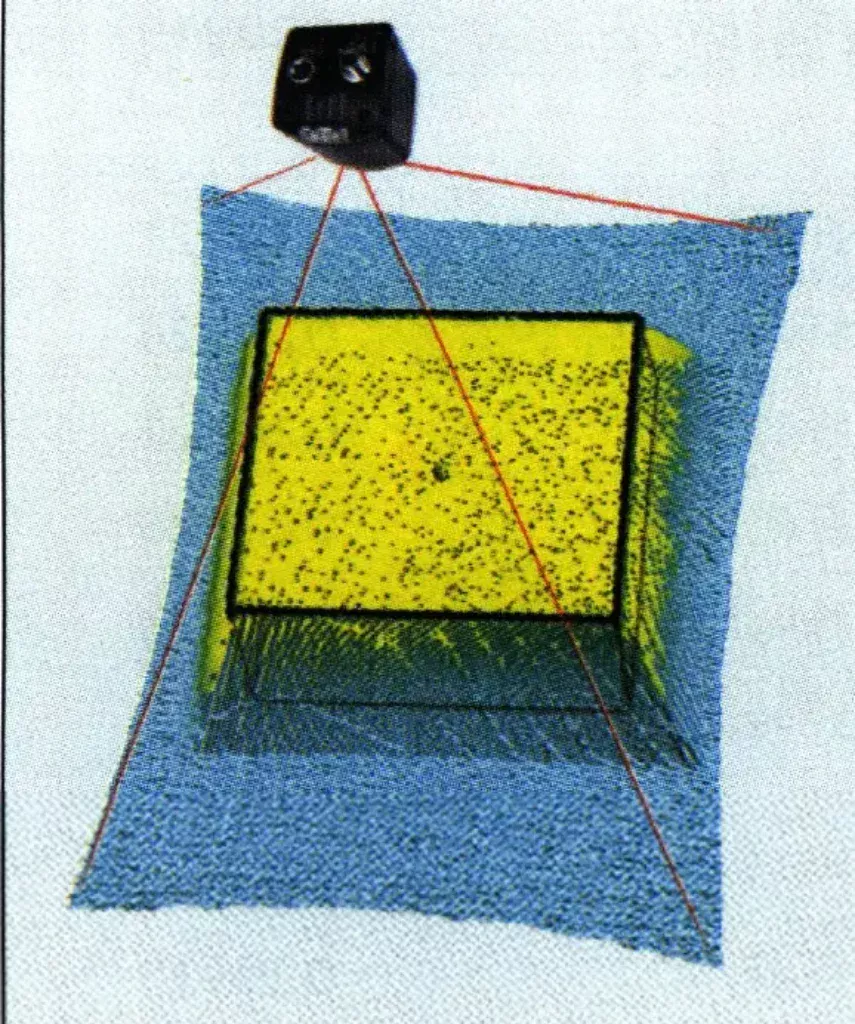

ifm’s patented pmd time-of-flight imager provides a 176 x 132 pixel array that can quickly and accurately measure the distance of 23,232 points within the field of view. The distance to each pixel is calculated by comparing the phase shift of the emitted and reflected infrared light. All measurements are captured synchronously and immediately processed into a fully calibrated 3D point cloud, which can be sent to a PC or controller via Ethernet. The technology also includes a patented background suppression illumination technique, making it immune to changing lighting conditions in the application environment.

Add a third-dimension application assistant!

The O3D smart sensor can act as an application assistant, providing a third-dimension field of vision for packaging and material handling machines. The smart sensor comes with 6 onboard pre-built applications: target object quantity completeness check; case dimensioning; 3D space material level detection; volume usage rate detection; robot-automated depalletizing guidance and robot-automated target object pick-up guidance. The possible applications are limitless. With its excellent price-performance ratio, ifm’s O3D sensor can be used in most areas within a factory.
