IFM O5/OJ Series Photoeletric Sensor Switch (Transparent Object Detection)

IFM O5/OJ Series Photoeletric Sensor (Transparent Object Detection)

Deal Score0

2025/7/4 Update

Small and medium-sized rectangular housing｜DC Maximum detection range 3 m
— ifm’s OJ series retro-reflective sensors have a small switching hysteresis, making them particularly suitable for the detection of transparent objects. These sensors use innovative technology that allows for easy teach-in pushbutton setup of sensitivity. The teach function enables the product to be adjusted only during installation.

IFM O5/OJ Series Photoeletric Sensor (Transparent Object Detection)

Technical Features

Detection of glass, thin films, PET bottles and transparent objects.

Simple automatic sensitivity adjustment for reliable detection of transparent objects.

Programmable LO / DO for flexible application.

Easy fixed mounting using mounting holes.

A wide range of bracket options for flexible installation.

Products + Accessories Selection:

O5 3-wire DC • Transparent object detection • Adjustable range…1.5 m* (with E20722 reflector) • Red light 624 nm
Function	Connector	Output	Switching frequency [Hz]	Power supply current [mA]	Spot diameter at max. detection range ø [mm]	Order No.
Polarized retro-reflective	M12	LO/DO PNP/NPN	1500	<50	40 mm @ 1.5 m 80 mm @ 3 m	O5G500
*With E20454 reflector, the adjustable range is 3 m.

OJ 4-wire DC • Transparent object detection • Range…1.5 m (with E20722 reflector) • Red light 660 nm
Function	Connector	Output	Switching frequency [Hz]	Power supply current [mA]	Lens position	Order No.
Polarized retro-reflective	M8	LO/DO PNP	2000	< 22	Front	OJ5185
M8	LO/DO PNP	2000	< 22	Side	OJ5186

Optional Accessories

Type	Description	Order No.

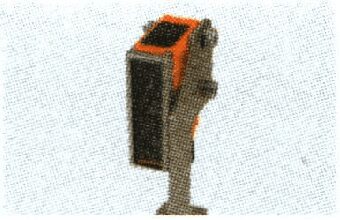

	Swivel bracket for O5 sensor for mounting on a rod, complete kit includes clamp	E21083

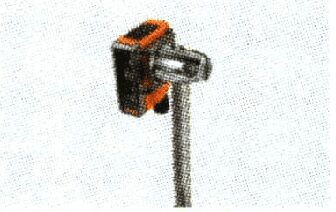

	Protective bracket for O5 sensor for mounting on a rod, complete kit includes clamp	E21084
	Independent mounting bracket for O5 sensor	E21087
	Stainless steel clamp for OJ sensor	E20965
	Swivel bracket for OJ front-facing type, die-cast zinc	E20966
Swivel bracket for OJ side-facing type, die-cast zinc	E20968

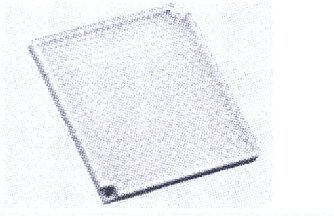

	50 x 50 mm reflector	E20722
	95 x 95 mm reflector	E20454

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
	M8 Pico DC (4-pin) 2 m, PUR	EVC150
M8 Pico DC (4-pin) 5 m, PUR	EVC151
	M8 Pico DC (4-pin) 5 m, PUR	EVC154
M8 Pico DC (4-pin) 10 m, PUR	EVC155

What’s More:

Color Sensor Application Solutions

When using a right-angle prism, the O5 series has a detection range of up to 3 meters.

OJ sensors include front-sensing and side-sensing models.

Benefits Introduce In Detail

Reliable transparent object detection

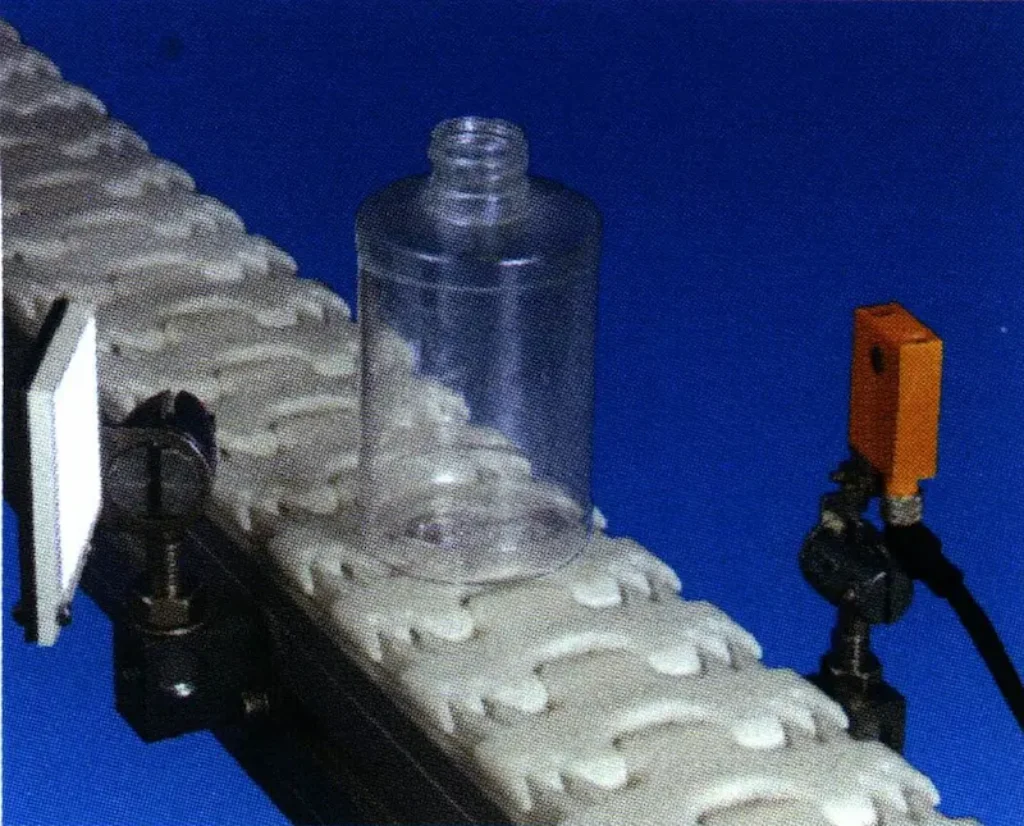

*The OJ sensor uses a reflector to detect plastic bottles with labels.*

Transparent objects (including thin films, glass, PET plastic bottles, and transparent packaging) are one of the most difficult photoelectric applications. Standard sensors often have too much excess gain, which can penetrate transparent materials. ifm efector offers two options for transparent object detection: the OJ series sensors and the O5 series sensors.

OJ series sensors – compact housing, large detection range

ifm’s OJ series retro-reflective sensors have a small switching hysteresis, making them particularly suitable for the detection of transparent objects. These sensors use innovative technology that allows for easy teach-in pushbutton setup of sensitivity. The teach function enables the product to be adjusted only during installation. This technology also reduces the “co-pilot” effect, a blind spot where the teach-in sensor cannot detect the target bottle on the bottle.

O5 series sensors – detection range up to 3 meters

When used with ifm’s right-angle reflector (order no. E20454), ifm’s O5 series compact polarized retro-reflective sensors can achieve an extremely large detection range of up to 3 meters. This high-precision sensor is designed for inspection and error-proofing applications, with a switching frequency of up to 2000 Hz, making it very suitable for fast-moving processes. The O5 uses a dual-pushbutton teach-in for rapid completion of light-on/dark-on programming. The microprocessor can realize automatic calibration, load detection (PNP or NPN), and switching point adjustment, and provides a dust warning indicator.
