IFM O5 Series Color And Contrast Sensor Switch

IFM O5 Series Mark And Color Photoeletric Sensor

Sensor, Mark And Color Photoeletric SensorIFM

Deal Score0

2025/7/4 Update

Medium rectangular housing｜DC Maximum detection range 22 mm
— ifm’s high-performance O5 series mark and color sensors provide extensive solution options for the packaging, assembly, material handling, and printing industries.

IFM O5 Series Color And Contrast Sensor

Technical Features

Mark and color sensors suitable for error-proofing and object detection.

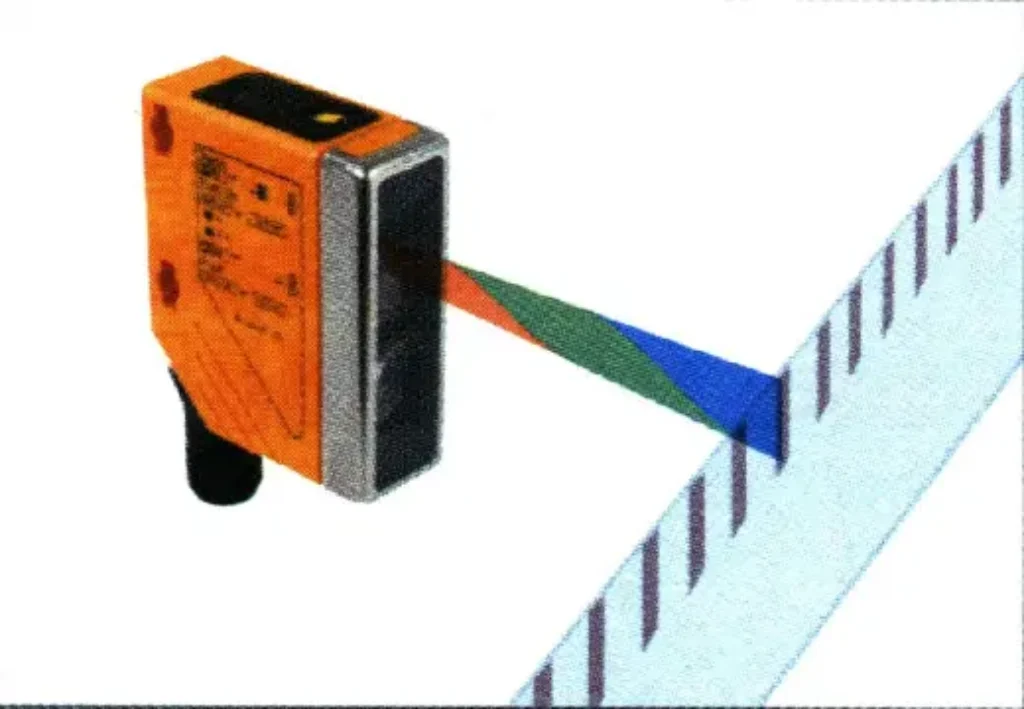

Uses reliable RGB (Red, Green, Blue) technology to determine the ideal color to distinguish the target from the background.

High color and mark sensitivity and resolution.

Mark detection range 18 to 22 mm, color detection range 15 to 18 mm.

Automatic detection of PNP/NPN configuration, and uses “teach mode” setting to establish application parameters.

Products + Accessories Selection:

Function	Range	Output	Spot diameter ø at max. detection range	Power supply current	Switching frequency	Light source	Order No.
Contrast: Diffuse reflection	18…22 mm	LO/DO PNP/ NPN	1.5 x 5 mm	< 50 mA	10000 Hz	RGB	O5K500
Color sensor	15…19 mm	LO/DO PNP/ NPN	2.5 x 6 mm	< 50 mA	2000 Hz	RGB	O5C500

Optional Accessories

Type	Description	Order No.

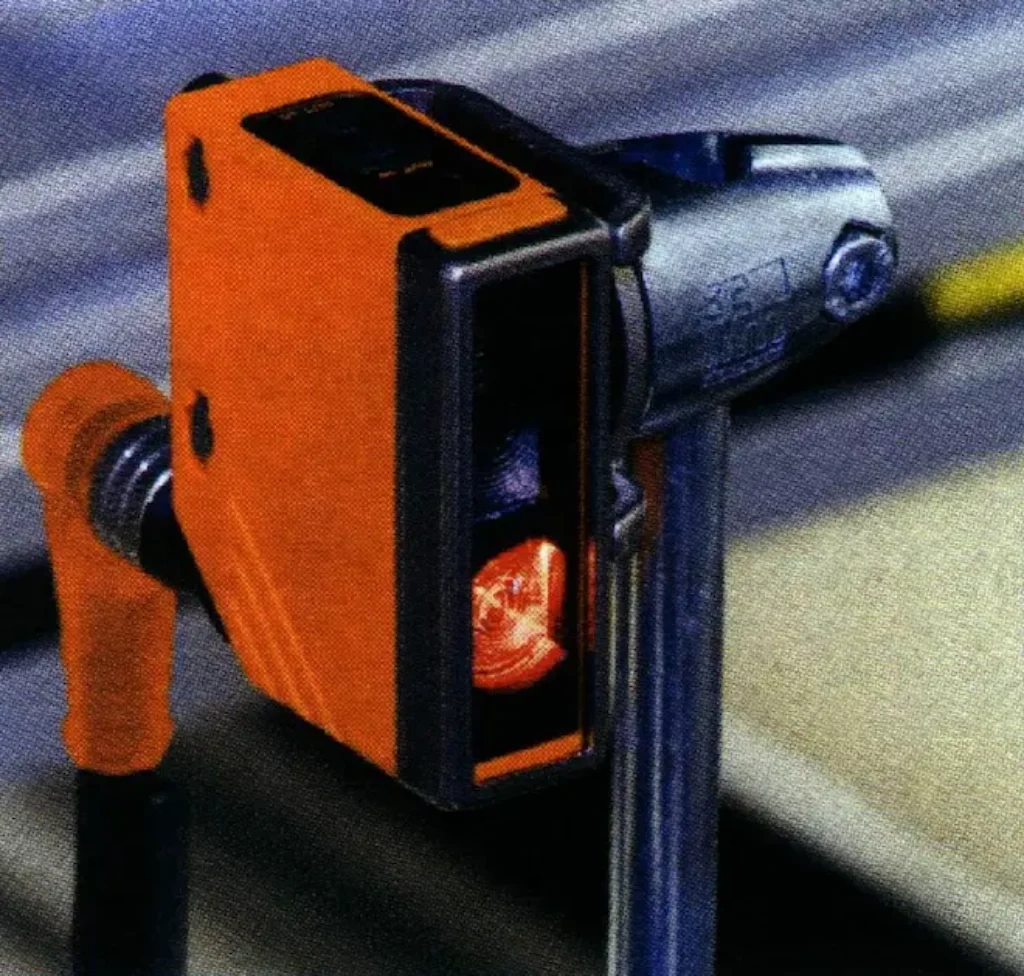

	For mounting on a rod, with clamp	E21083
	Independent mounting bracket	E21087

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
	M12 Micro DC (4-pin) 2 m, PUR, LED	EVC007
M12 Micro DC (4-pin) 5 m, PUR, LED	EVC008

Specifications:

Light source type:
- Red light source 625 nm
- Green light source 525 nm
- Blue light source 465 nm
Supply voltage: 10…36 V DC
Number of cores: 3-wire
Max. load current: 200 mA
Voltage drop: <2.5 V
Leakage current: negligible
Connector: M12
Housing material: PA, stainless steel, TPU/PC
Lens material: PMMA
Operating temperature: -25…60 °C
Protection class: IP67

What’s More:

Color Sensor Application Solutions

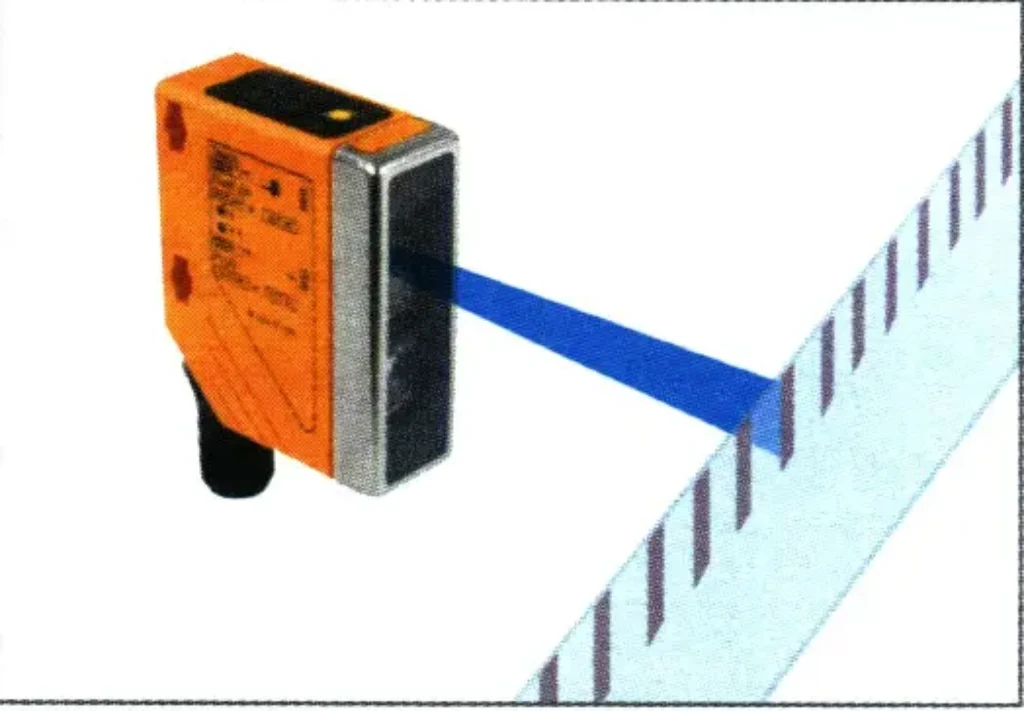

**Color recognition**
The O5 supports tolerance adjustment; it can accept different types of the same color and reject different colors.

**Orientation**
The O5 can detect the proper orientation in fast-moving applications.

Benefits Introduce In Detail

O5 mark and color photoelectric sensors

ifm’s high-performance O5 series mark and color sensors provide extensive solution options for the packaging, assembly, material handling, and printing industries. The O5 sensor is equipped with an RGB visible light transmission LED and can identify the optimal contrast between the target and the background by processing red, green, and blue light.
