IFM O5D 100 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

Medium-sized rectangular sensor Time-of-Flight principle｜Maximum detection range 2 m, with button
— The O5D series of sensors provides reliable optical performance that is not affected by target color. Whether the object is reflective, matte, dark, or light, the O5D provides excellent background suppression.

IFM O5D 100 Series Photoelectric Sensor

Technical Features

PMD “Time-of-Flight” technology enables a detection range of up to 2 meters (6.5 ft), eliminating the need for a reflector for the sensor.

Excellent optical performance that is not affected by the color of the target object.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Reliable background suppression prevents false triggers caused by the high reflectivity of materials such as stainless steel.

Class 1 and Class 2 lasers can be mounted on any surface and rotated to any position, allowing for a very wide range of applications.

Products + Accessories Selection:

Range	Output	Spot diameter at max. range	Power supply current	Switching frequency	Light source	Measurement unit	Order number
0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 2 laser, red light 650 nm	cm	O5D100
0.03…2 m	Complementary LO / DO, NPN	< 5 mm	< 75 mA	11 Hz	Class 2 laser, red light 650 nm	cm	O5D102
0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 1 laser, red light 650 nm	cm	O5D150
0.03…2 m	Complementary LO / DO, NPN	< 5 mm	< 75 mA	11 Hz	Class 1 laser, red light 650 nm	cm	O5D152
0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 2 laser, red light 650 nm	inch	O5D101
0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 1 laser, red light 650 nm	inch	O5D151

Optional Accessories

Type	Description	Order No.
	Swivel mount for mounting rod, with clamp	E21083
	Independent mounting bracket	E21087
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, convenient for easy upload without a computer	E30398

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
	M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
	M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Dimensions: 47 x 56 x 18 mm
Operating voltage: 10…30 VDC
Switching status indicator: Yellow LED
Operation: Green LED
Switching point setting: Button
- Output 1: OUT1: LO
- Output 2: OUT2: DO
Rated current: 2 x 100 mA
Protection class: IP65, IP67
Operating temperature: -25…60 °C
Housing material: Stainless steel, PA, TPU
Front panel material: PMMA

Laser Information

Certification Label
- CLASS 1
- LASER PRODUCT
- IEC60825-1:2007
- IEC60825-1:2014
- 21CFR PART1040
Class 1 Laser

Warning Label

CAUTION
- LASER LIGHT SOURCE
- DO NOT STARE INTO BEAM
- CLASS 2 LASER PRODUCT
- Max Power: ≤4.1mW
- Wavelength: 650 nm
- Pulse: 1.3ns
- 21 CFR PART 1040
- EN60825-1:2003-10
Class 2 Laser

What’s More:

Benefits Introduce In Detail

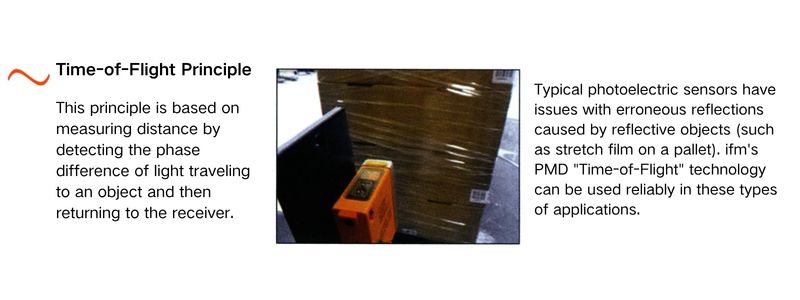

O5D setup is simple, using PMD technology for “Time-of-Flight” measurement

The O5D series of photoelectric sensors integrates the “Time-of-Flight” measurement principle and PMD technology for reliable detection in industrial automation applications. The advantages of PMD technology include a large detection range, reliable background suppression, and a visible red light spot, which facilitates setup and achieves high excess gain. The detection range of the O5D is up to 2 meters.

The switching point can be easily set using the sensor display and the plus/minus (+/-) buttons. The visible red light spot helps to align the sensor, and the digital display can show the set distance. We can also provide models with units in inches. The switching point of the O5D can also be set via IO-Link.

The O5D series of sensors provides reliable optical performance that is not affected by target color. Whether the object is reflective, matte, dark, or light, the O5D provides excellent background suppression.
