IFM O5H/O5P/O5S/O5E 500 Series Photoelectric Sensor

Deal Score+1

2025/7/4 Update

Small rectangular housing｜Class 1 Laser｜Max. detection range 15 m
— ifm’s O5 photoelectric sensors use a small housing but have a very large detection range. This series of sensors uses a two-button “teach mode” to provide high precision and extremely high resolution for demanding applications.

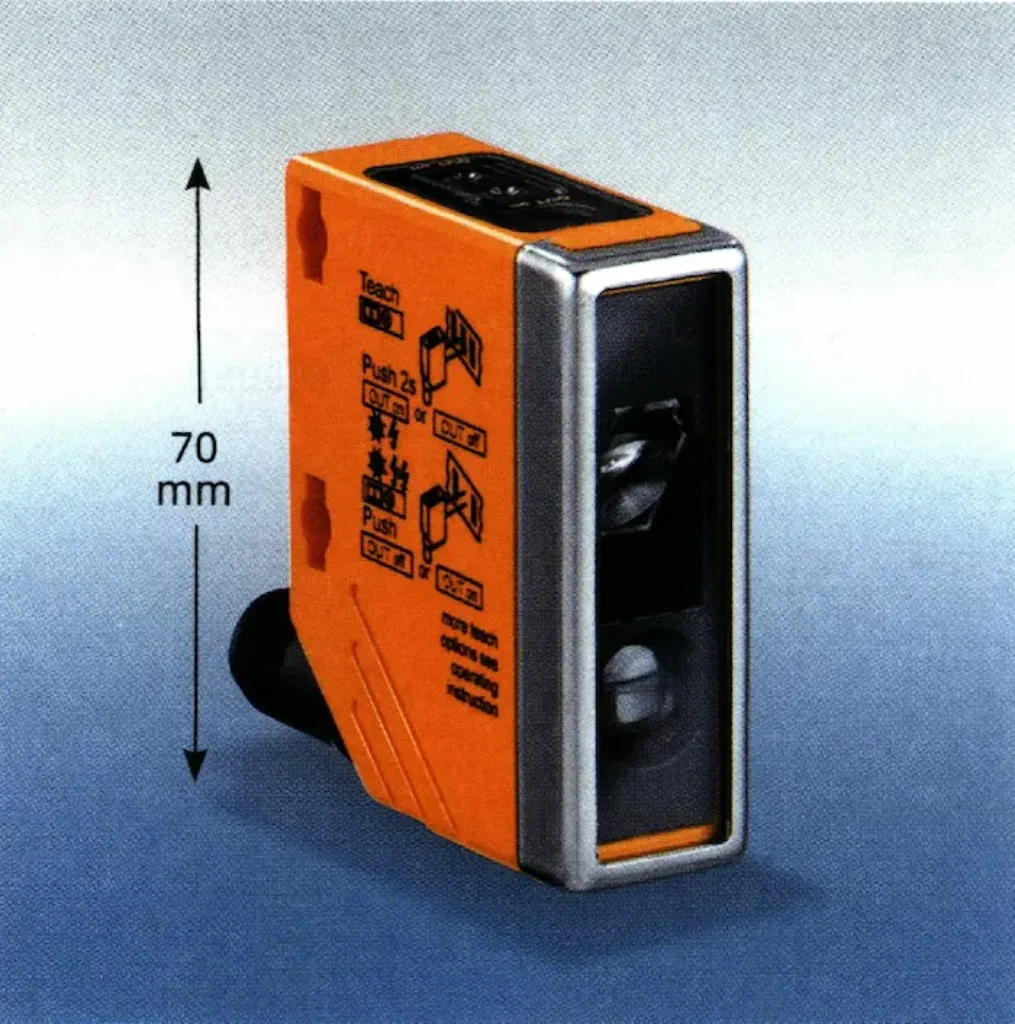

IFM O5H/O5P/O5S/O5E 500 Series Photoelectric Sensor

Technical Features

Visible red light technology provides precise alignment and simple adjustment.

Extra-large detection range – Background suppression models up to 1.8 meters; polarized retro-reflective models up to 10 meters.

Innovative two-button “teach mode” simplifies setup.

Metal protective frame is resistant to mechanical damage in industrial automation applications.

The durable, rotatable connector can be turned 270°; a simple and easy-to-use bracket system can reduce accessory inventory.

Products + Accessories Selection:

Function	Range	Output	Spot Diameter at Max. Range Ø	Supply Current	Switching Frequency	Light Source	Order No.
Diffuse reflection sensor (with background suppression)	50…1800 mm	LO/DO PNP	50 mm	25 mA	1000 Hz	Red light 624 nm	O5H500
50…1800 mm	LO/DO NPN	50 mm	25 mA	1000 Hz	Red light 624 nm	O5H504
Polarized retro-reflective sensor	0.075…10 m	LO/DO PNP	250 mm	20 mA	2000 Hz	Red light 624 nm	O5P500
0.075…10 m	LO/DO NPN	250 mm	20 mA	2000 Hz	Red light 624 nm	O5P502
Through-beam receiver	0…25 m	LO/DO PNP	–	11 mA	1000 Hz	–	O5E500
0…25 m	LO/DO NPN	–	11 mA	1000 Hz	–	O5E502
Through-beam transmitter	0…25 m	–	625 mm	20 mA	–	Red light 624 nm	O5S500

Optional Accessories

Type	Description	Order No.
Swivel Mount	Swivel mount for mounting rod, with clamp	E21083
Mounting Bracket	Stand-alone mounting bracket	E21087
Reflector	50 mm reflector	E20956
80 mm reflector	E20005
Swivel Mount with Reflector	Swivel mount with 50 mm reflector	E20997
Swivel mount with 80 mm reflector	E20995

Accessory Cables

Type	Description	Order No.
Straight M12 Connector	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
Angled M12 Connector	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
Angled M12 Connector with LED	M12 Micro DC (4-pin) 2 m, PUR, LED	EVC007
M12 Micro DC (4-pin) 5 m, PUR, LED	EVC008

Specifications:

Power supply voltage: 10…36 VDC
Number of cores: 3-wire; Model O5S500: 2-wire
Max. load current: 200 mA
Voltage drop: <2.5 V
Leakage current: Negligible
Connector: M12
Housing material: PA, stainless steel, TPU
Lens material: PMMA
Operating temperature: -25…60 °C
Protection rating: IP67

Benefits Introduce In Detail

Robust design and a wide range of mounting options

ifm’s O5 photoelectric sensors use a small housing but have a very large detection range. This series of sensors uses a two-button “teach mode” to provide high precision and extremely high resolution for demanding applications.

Installation is very simple. The sensor’s connector can be rotated 270°, allowing for alignment in multiple directions. A wide range of bracket types supports extensive mounting options.

O5 sensors can be mounted above the target – the background suppression model can be mounted up to 1.8 meters away.

With its large detection range, compact housing, and simple setup, the O5 series sensor sets the benchmark for price-performance ratio.
