IFM O6H/O6P/O6S/O6E 700 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

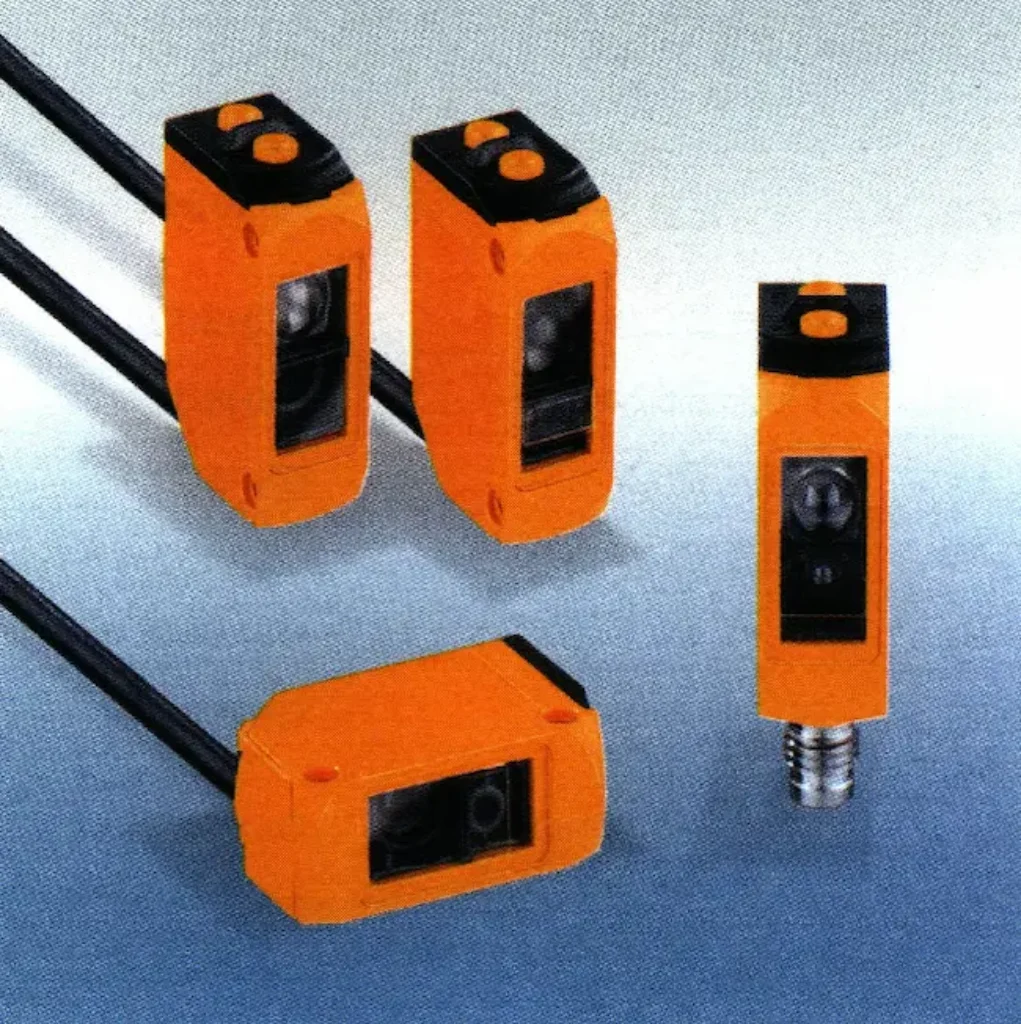

Small rectangular housing, Laser sensor｜Max. detection range 15 m
— New! ifm has launched the O6 small photoelectric sensor. It uses a precise laser to detect minute a small change in the target’s position and transmits this information via IO-Link. IO-Link can unlock the sensor’s parameter limits and transmit them to the controller.

IFM O6H/O6P/O6S/O6E 700 Series Photoelectric Sensor

Technical Features

High-precision close-range measurement supports real-time quality checks, ensuring correct positioning during assembly processes.

Reliable background suppression.

Excellent optical performance not affected by target color.

Uses a powerful laser light source and a precise light spot for easy alignment, and can be quickly set up using touch buttons or via IO-Link.

Digital transmission of sub-millimeter distances.

Products + Accessories Selection:

Function	Range (mm)	Output	Light Beam Ø [mm]	Pigtail 2 m Cable Order No.	0.3 m PVC Cable M12 Connector Order No.	4-pin M8 Connector Order No.
Diffuse reflection sensor (with background suppression)	100	3-wire DC PNP	2	O6H700	O6H701	O6H702
100	3-wire DC NPN	2	O6H703	O6H704	O6H705
Polarized retro-reflective sensor	300…8,000*	3-wire DC PNP	< 17	O6P700	O6P701	O6P702
300…8,000*	3-wire DC NPN	< 17	O6P703	O6P704	O6P705
Through-beam transmitter	15,000	2-wire DC	< 35	O6S700	O6S701	O6S702
Through-beam receiver	15,000	3-wire DC PNP	–	O6E700	O6E701	O6E702
15,000	3-wire DC NPN	–	O6E703	O6E704	O6E705

* Please see reflector model E20722

Optional Accessories

Type	Description	Order No.
Mounting Set	Mounting set for clamp mounting, stainless steel (requires mounting rod)	E21272
Mounting Rod	Swivel mount mounting rod, stainless steel	E21081
Reflector	10 mm reflector	E20990
50 x 50 mm reflector	E20722

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, allowing for easy upload without a PC	E30398

Specifications:

Light source type: Laser light 650 nm
Operating voltage: 10…30 VDC
Current consumption: 20 mA
Switching frequency: 1000 Hz
Switching status indicator: Yellow LED
Operation: Green LED
Rated current: 100 mA
Voltage drop: < 2.5 V
Protection rating: IP65, IP67
Ambient temperature: 10…60 °C
Housing material: ABS
Lens material: PMMA

Laser Safety Information:

CLASS 1 LASER PRODUCT
Standards Compliance:
- IEC 60825-1:2007
- IEC 60825-1:2014
- 21 CFR PART 1040

Benefits Introduce In Detail

Improve Product Quality Through Precise Position Monitoring

New! ifm has launched the O6 small photoelectric sensor. It uses a precise laser to detect minute a small change in the target’s position and transmits this information via IO-Link. IO-Link can unlock the sensor’s parameter limits and transmit them to the controller.

The O6 sensor emits a 2mm diameter laser beam and, according to the set parameters, can easily detect minute changes in component parts. This makes it possible to discover errors during component assembly or processing, and will not allow the error to continue to the next assembly step.

The visible red light is helpful for aligning the sensor and the target. The switch point can be set via the sensor’s plus/minus (+/-) buttons, or the precise distance to the target and other user-defined parameters, such as length and height, can be set via IO-Link using ifm’s LineRecorder Device software.

The compact shape is very suitable for installation in narrow spaces. Two clear LEDs indicate the switching status and power supply.

The O6 sensor with IO-Link can, through its immediate detection of errors, help manufacturers achieve real-time optimization of their processes, and will not allow incorrect parts to affect the next assembly step.

The O6 series includes polarized retro-reflective and through-beam models.
