IFM O6H/O6T/O6P/O6S/O6E 300 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

Small rectangular sensor, pigtail stainless steel housing｜Max. detection range 10 m
— ifm has launched a new series of robust photoelectric sensors with stainless steel housings, specially designed for various industrial automation and hygienic environments. The O6 series photoelectric sensors can reliably detect positions in harsh environments.

IFM O6H/O6T/O6P/O6S/O6E 300 Series Photoelectric Sensor

Technical Features

Suitable for factory automation and harsh applications

Its features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback

Precise background suppression detection, not affected by target color

Sturdy 316 stainless steel rectangular housing adopts industry standard dimensions

Equipped with dual potentiometers for adjusting and selecting light-on/dark-on

Products + Accessories Selection:

Type	Detection Range [mm]	Spot Diameter [mm]	Output	Order No.
Diffuse reflection sensor (with background suppression)	2…200	8	3-wire DC PNP	O6H300	O6H301	O6H302	O6H303	O6H309
2…200	8	3-wire DC NPN	O6H304	O6H305	O6H306	O6H307	–
Diffuse reflection sensor	5…500	15	3-wire DC PNP	O6T300	O6T301	O6T302	O6T303	O6T309
5…500	15	3-wire DC NPN	O6T304	O6T305	O6T306	O6T307	–
Polarized retro-reflective sensor	50…5000*	150	3-wire DC PNP	O6P300	O6P301	O6P302	O6P303	O6P309
50…5000*	150	3-wire DC NPN	O6P304	O6P305	O6P306	O6P307	–
Through-beam transmitter	0…10000	300	2-wire DC	O6S300	O6S301	O6S302	O6S303	O6S305
Through-beam receiver	0…10000	–	3-wire DC PNP	O6E300	O6E301	O6E302	O6E303	O6E309
0…10000	–	3-wire DC NPN	O6E304	O6E305	O6E306	O6E307	–

* Please see Ø 80 mm reflector

Optional Accessories

Type	Description	Order No.
Mounting Set	Mounting set for clamp mounting, stainless steel (requires mounting rod)	E21272
Mounting Rod	Swivel mount mounting rod, stainless steel	E21081
Bracket	Bracket for freestanding installation, stainless steel	E21271
Reflector	50 mm reflector	E20956
80 mm reflector	E20005
Swivel Mount with Reflector	Swivel mount with 50 mm reflector	E20997
Swivel mount with 80 mm reflector	E20995
Parameter Setting Software	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
IO-Link Master	USB IO-Link master cable, for parameter setting	E30390
Memory Plug	Memory plug for storing sensor parameters, allowing for easy upload without a PC	E30398

Specifications:

Light source type: Red light 633 nm
Operating voltage: 10…30 VDC
Current consumption: 20 mA
Switching frequency: 1000 Hz
Switching status indicator: Yellow LED
Operation: Green LED
Rated current: 100 mA
Voltage drop: < 2.5 V
Protection rating: IP65, IP67, IP68, IP69K
Ambient temperature: -25…80 °C
Housing material: High-grade stainless steel (1.4404 / 316L)
Lens material: PMMA

Benefits Introduce In Detail

Robust Photoelectric Sensors for Harsh Environments

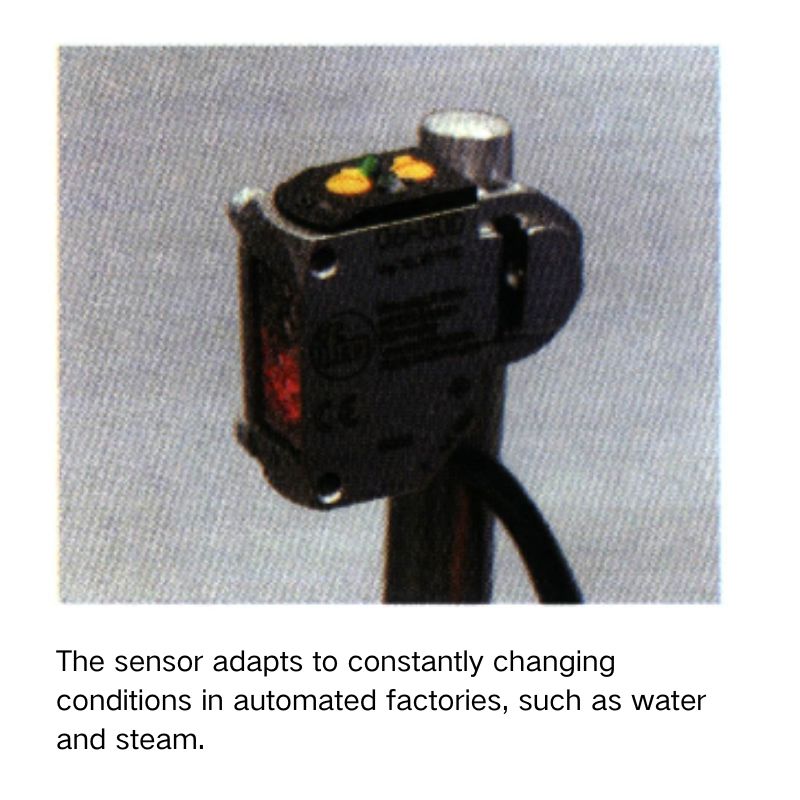

ifm has launched a new series of robust photoelectric sensors with stainless steel housings, specially designed for various industrial automation and hygienic environments. The O6 series photoelectric sensors can reliably detect positions in harsh environments.

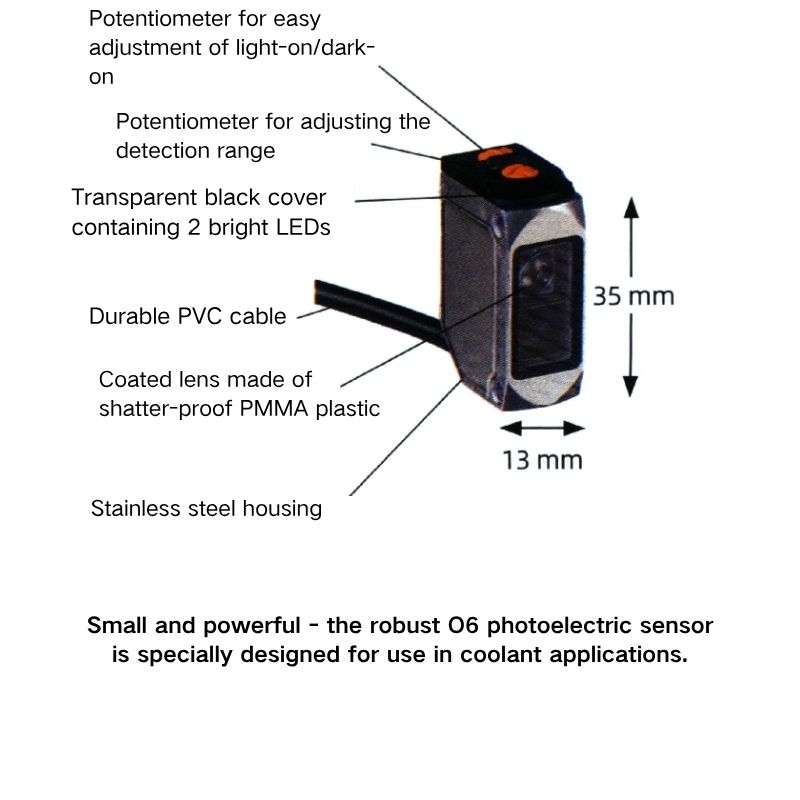

These sensors are equipped with easy-to-adjust potentiometers and a visible red light source, allowing for quick and easy setup in applications. The potentiometers use a dual seal and are flush-mounted like the lens for residue-free cleaning. A transparent black cover ensures the sensor’s two LEDs are clearly visible even under bright lighting conditions. The coated lens is made of highly resistant, shatter-proof PMMA plastic.

The O6 sensor series includes diffuse reflection, diffuse reflection with background suppression, polarized retro-reflective, and through-beam models.
