IFM O7H/O7P/O7S/O7E 200 Series Photoelectric Sensor Switches

IFM O7 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

M30 Tubular Housing｜Time-of-flight principle｜Maximum detection range 2 m
— The O7 series photoelectric sensors are designed for applications detecting small components or where sensor mounting space is extremely limited. With a precise light spot, they can accurately detect small objects at long distances. Typical applications are parts feeding and material handling.

IFM O7 Series Photoelectric Sensor

Technical Features

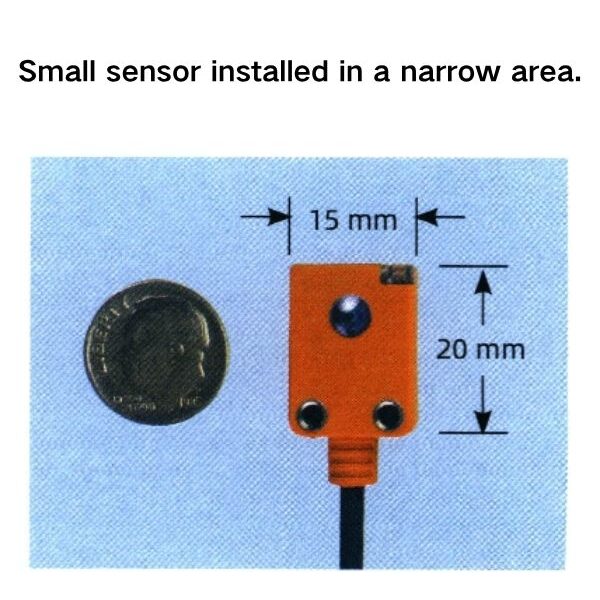

Uses a small housing to reliably detect components in narrow spaces.

The diffuse reflection sensor (with background suppression) model is equipped with a precise light source to accurately detect small objects and resist interference.

Visible red light source for convenient alignment and setup.

Through-beam, retro-reflective, and diffuse reflection (with background suppression) sensors use a fixed detection range for fast setup.

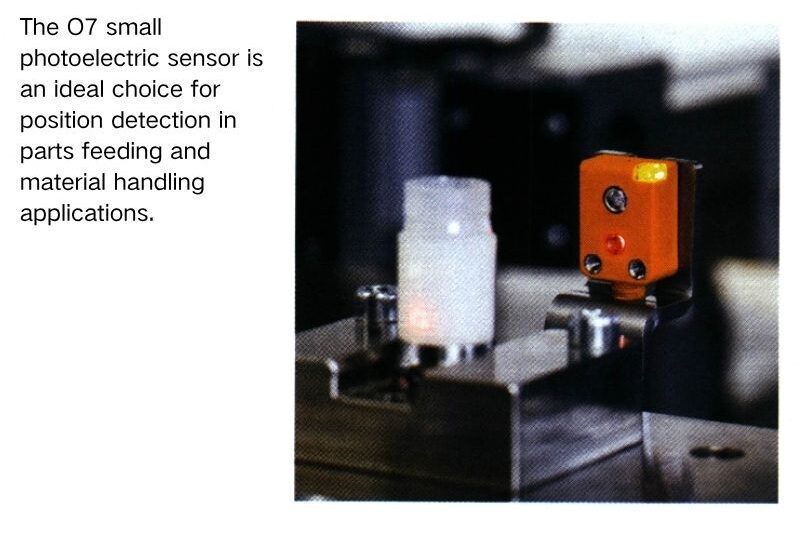

An ideal choice for position detection in parts feeding and material handling applications.

Products + Accessories Selection:

Function	Range	Output	Spot Diameter at Max. Range Ø	Supply Current	Switching Frequency	Light Source	Order No.
Diffuse reflection sensor (with background suppression)	1…30 mm	LO PNP	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H200
1…30 mm	DO PNP	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H201
1…30 mm	LO NPN	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H206
1…30 mm	DO NPN	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H207
Diffuse reflection sensor (with background suppression)	0…50 mm	LO PNP	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H202
0…50 mm	DO PNP	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H203
0…50 mm	LO NPN	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H208
0…50 mm	DO NPN	2.5 mm	20 mA	750 Hz	Red light 633 nm	O7H209
Diffuse reflection sensor (with background suppression)	0…100 mm	LO PNP	7 mm	20 mA	750 Hz	Red light 633 nm	O7H204
0…100 mm	DO PNP	7 mm	20 mA	750 Hz	Red light 633 nm	O7H205
0…100 mm	LO NPN	7 mm	20 mA	750 Hz	Red light 633 nm	O7H210
0…100 mm	DO NPN	7 mm	20 mA	750 Hz	Red light 633 nm	O7H211
Polarized retro-reflective sensor	0.03…1 m	DO PNP	55 mm	20 mA	1000 Hz	Red light 633 nm	O7P200
0.03…1 m	LO PNP	55 mm	20 mA	1000 Hz	Red light 633 nm	O7P201
Polarized retro-reflective sensor	0.03…1 m	DO NPN	55 mm	20 mA	1000 Hz	Red light 633 nm	O7P202
0.03…1 m	LO NPN	55 mm	20 mA	1000 Hz	Red light 633 nm	O7P203
Through-beam receiver	0…1.5 m	DO PNP	–	10 mA	1000 Hz	Red light 633 nm	O7E200
0…1.5 m	LO PNP	–	10 mA	1000 Hz	Red light 633 nm	O7E201
0…1.5 m	DO NPN	–	10 mA	1000 Hz	Red light 633 nm	O7E202
0…1.5 m	LO NPN	–	10 mA	1000 Hz	Red light 633 nm	O7E203
Through-beam transmitter	0…1.5 m	–	90 mm	20 mA	–	Red light 633 nm	O7S200

Optional Accessories

Type	Description	Order No.
Mounting Set	Mounting set for clamp mounting, stainless steel (requires mounting rod below)	E21237
Mounting Rod	Mounting rod, 120 mm M8 thread, Ø 10mm, stainless steel	E21081
Mounting Set	Mounting set for free-standing mounting, stainless steel	E21238
Mounting Set with Fine Adjustment	Mounting set for free-standing mounting, with fine adjustment, stainless steel	E21239
Mounting Set with Ball Joint	Mounting set with ball joint, diecast zinc, stainless steel	E21240
Reflector	25 mm reflector	E20953
50 mm reflector	E20956

Accessory Cables

Type	Description	Order No.
Straight M8 Pico Connector	M8 Pico (3-pin) 2 m, PUR Cable	EVC141
M8 Pico (3-pin) 5 m, PUR Cable	EVC142

Specifications:

Operating voltage: 10…30 V DC
Number of cores: 3-wire (O7S200: 2-wire)
Max. load current: 100 mA
Voltage drop: < 2.5 V
Leakage current: Negligible
Connector: 0.2 m pigtail, with M8 connector
Housing material: PA (Polyamide)
Lens material: PMMA
Operating temperature: -25…60 °C
Protection rating: IP65

Benefits Introduce In Detail

Powerful Photoelectric Sensors with Small Housings

The O7 series photoelectric sensors are designed for applications detecting small components or where sensor mounting space is extremely limited. With a precise light spot, they can accurately detect small objects at long distances. Typical applications are parts feeding and material handling.

Fixed Detection Range for Fast Setup

The fixed detection range allows the sensor to be plug-and-play, ready to run immediately after installation. The visible red light source helps to complete calibration quickly and easily.

The diffuse reflection sensors with background suppression are available with 30, 50, or 100 mm detection ranges. Other models include polarized retro-reflective models with a 1-meter detection range and through-beam models with a 1.5-meter detection range.
