Technical Features

Products + Accessories Selection:

Function	Range	Output	Spot Diameter at Max. Range	Current Consumption	Switching Frequency	Light Source	Order No.
Diffuse reflection (with background suppression)	100 mm	LO PNP	7 mm	25 mA	1000 Hz	Red light 624 nm	OGH280
	100 mm	LO NPN	7 mm	25 mA	1000 Hz	Red light 624 nm	OGH282
Diffuse reflection (with background suppression)	200 mm	LO PNP	13 mm	25 mA	1000 Hz	Red light 624 nm	OGH281
	200 mm	LO NPN	13 mm	30 mA	1000 Hz	Red light 624 nm	OGH283
Diffuse reflection (with background suppression, push-button adjustment function)	15…200 mm	LO/DO PNP	13 mm	25 mA	1000 Hz	Red light 624 nm	OGH580
	15…200 mm	LO/DO NPN	13 mm	25 mA	1000 Hz	Red light 624 nm	OGH581
Polarized retro-reflective	0.1…4 m	DO PNP	160 mm	21 mA	1000 Hz	Red light 624 nm	OGP280
	0.1…4 m	DO NPN	160 mm	20 mA	1000 Hz	Red light 624 nm	OGP282
Through-beam receiver	0…20 m	DO PNP	–	16 mA	1000 Hz	–	OGE280
	0…20 m	DO NPN	–	16 mA	1000 Hz	–	OGE282
Through-beam emitter	0…20 m	–	800 mm	17 mA	–	Red light 624 nm	OGS280

Optional Accessories

Type	Description	Order No.
	50 mm reflector	E20956
	80 mm reflector	E20005

Mating Cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
	M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
	M12 Micro DC (4-pin) 5 m, PUR	EVC005
	M12 Micro DC (4-pin) 2 m, PUR, LED	EVC007
	M12 Micro DC (4-pin) 5 m, PUR, LED	EVC008

Specifications:

• Power supply voltage: 10…30 VDC
• Number of cores: 3-wire; Model OGS280: 2-wire
• Max. load current: 200 mA
• Voltage drop: <2.5 V
• Leakage current: Negligible
• Connector: M12
• Housing material: Metal alloy, PA, LCP, EPDM
• Lens material: PMMA
• Operating temperature: -25…60 °C
• Protection class: IP67

What’s More…

Benefits Introduce In Detail

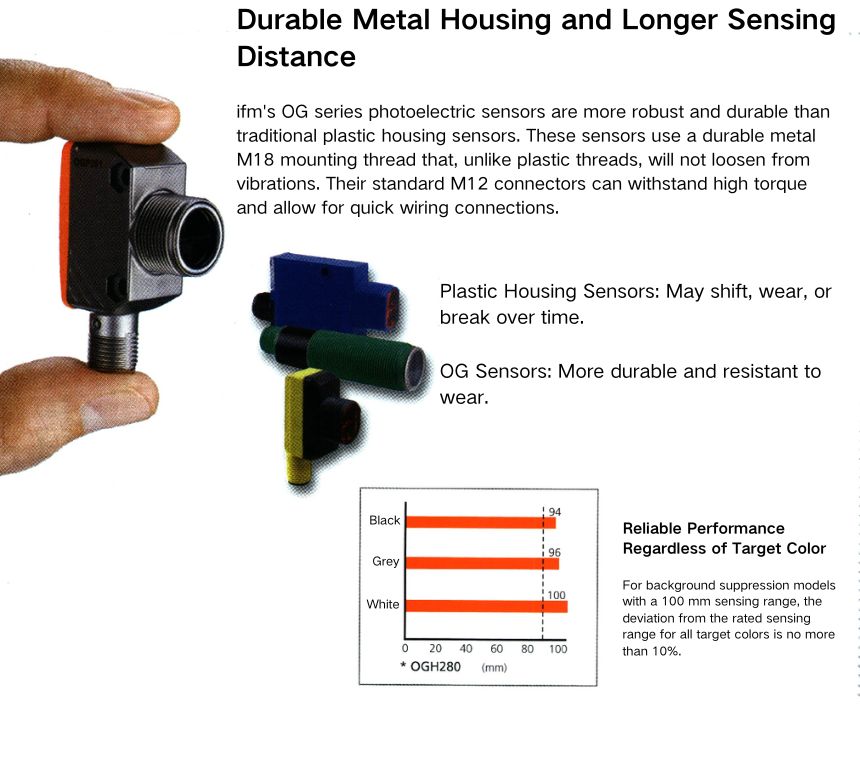

Durable Metal Housing and Longer Sensing Distance

ifm’s OG series photoelectric sensors are more robust and durable than traditional plastic housing sensors. These sensors use a durable metal M18 mounting thread that, unlike plastic threads, will not loosen from vibrations. Their standard M12 connectors can withstand high torque and allow for quick wiring connections.
