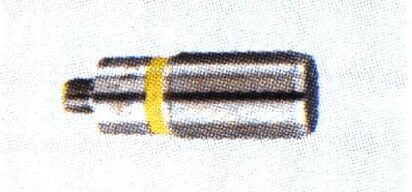

IFM OID 200 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

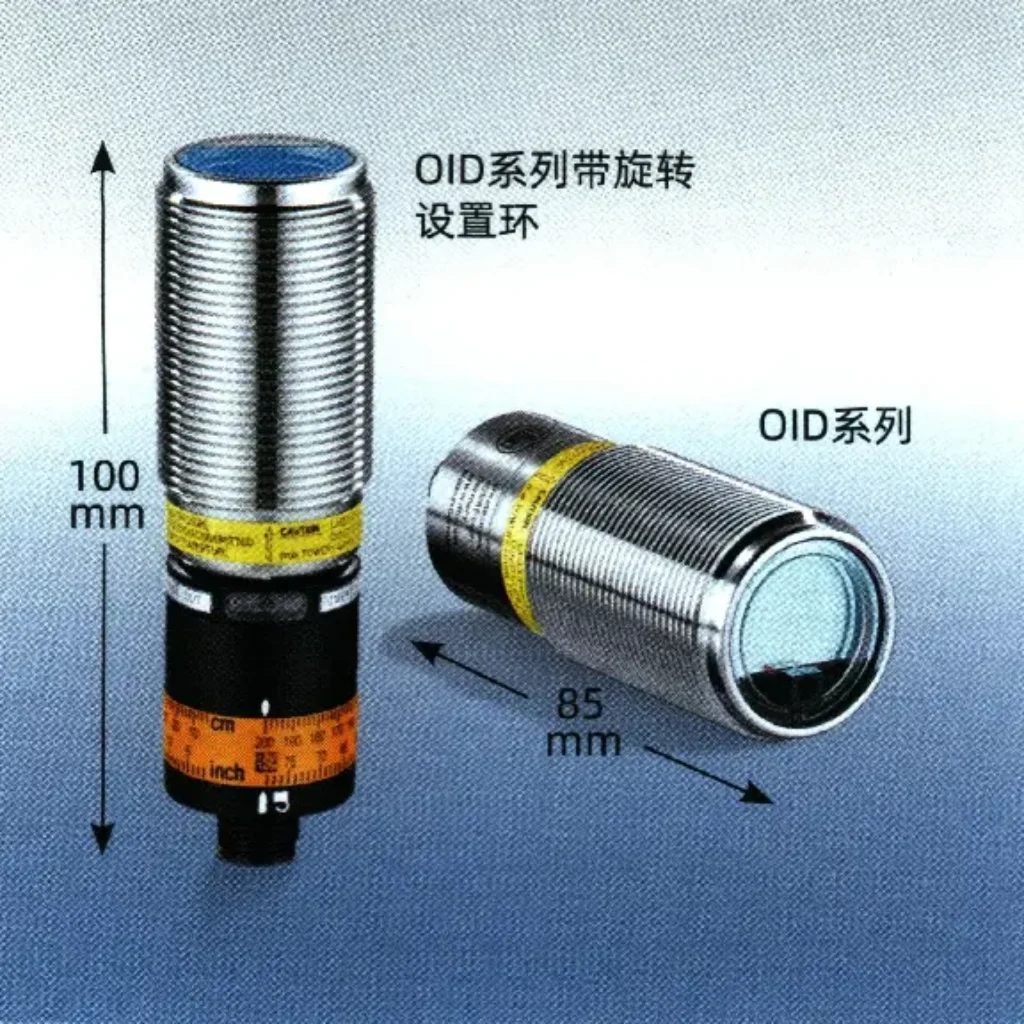

M30 Tubular Housing｜Time-of-flight principle｜Maximum detection range 2 m
— OID sensors provide reliable optical performance, unaffected by the target object’s color. Regardless of whether the object is reflective, matte, dark, or bright, the OID offers excellent background suppression.

IFM OID 200 Series Photoelectric Sensor

Technical Features

PMD “time-of-flight” technology achieves a detection range of up to 2 meters without needing a reflector.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Digital transmission of the target distance.

Reliable background suppression prevents false triggers from the reflection of objects made of materials like stainless steel.

M30 diameter, Class 1 and Class 2 laser.

Excellent optical performance that is not affected by the color of the target object.

Products + Accessories Selection:

Type	Range	Output	Spot Diameter at Max. Range Ø	Supply Current	Switching Frequency	Light Source	Measurement Unit	Adjustment Method	Order No.

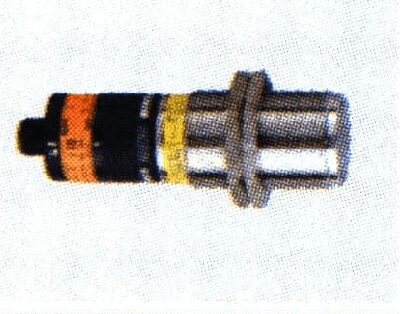

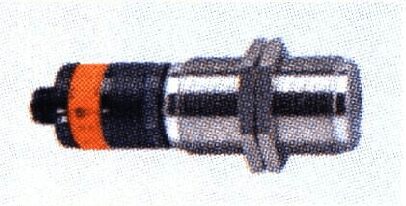

M30 Threaded Barrel	0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 2 Laser, Red light 650 nm	cm and inch	Setting Ring	OID200
M30 Threaded Barrel	0.03…2 m	Complementary LO / DO, NPN	< 5 mm	< 75 mA	11 Hz	Class 2 Laser, Red light 650 nm	cm and inch	Setting Ring	OID202
M30 Threaded Barrel	0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 1 Laser, Red light 650 nm	cm and inch	Setting Ring	OID250

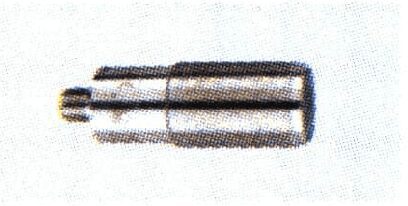

Smooth Barrel	0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 2 Laser, Red light 650 nm	cm and inch	N/A	OID204
Smooth Barrel	0.03…2 m	Complementary LO / DO, PNP	< 5 mm	< 75 mA	11 Hz	Class 1 Laser, Red light 650 nm	cm and inch	N/A	OID254

Optional Accessories

Type	Description	Order No.

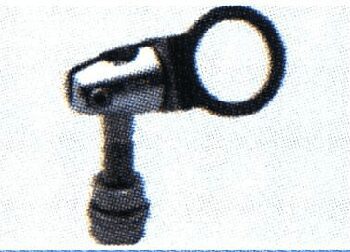

Mounting Set	Low pivot mount, die-cast zinc	E20873
Low pivot mount, 316 SS	E20874
Parameter Setting Software	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
IO-Link Master	USB IO-Link master cable, for parameter setting	E30390
Memory Plug	Memory plug for storing sensor parameters, allowing for easy upload without a PC	E30398

Accessory Cables

Type	Description	Order No.
For models OID200, OID202, OID250
Straight Connector	M12 Micro DC (4-pin) 2m, PUR	EVC001
M12 Micro DC (4-pin) 5m, PUR	EVC002
Angled Connector	M12 Micro DC (4-pin) 2m, PUR	EVC004
M12 Micro DC (4-pin) 5m, PUR	EVC005
For models OID204, OID254
Straight Connector	M12 Micro (5-pin) 2m, PUR cable	EVC070
M12 Micro (5-pin) 5m, PUR cable	EVC071
Angled Connector	M12 Micro (5-pin) 2m, PUR cable	EVC073
M12 Micro (5-pin) 5m, PUR cable	EVC074

Specifications:

Dimensions: M30 x 90 mm
Operating voltage: 10…30 VDC
Switching status indicator: Yellow LED
Operation indicator: Green LED
Switch point setting: Setting ring
Output function:
- OUT1: LO (Light-on)
- OUT2: DO (Dark-on)
Rated current: 2 x 100 mA
Protection rating: IP65, IP67
- For models OID204, OID254: IP69K
Operating temperature: -25…60 °C
Housing material: Stainless steel, PBT, PC, FPM
- For models OID204, OID254: Stainless steel
Front panel material: PMMA

CLASS 1 LASER PRODUCT
Standards Compliance:
- IEC 60825-1:2007 (International Standard)
- IEC 60825-1:2014 (Updated International Standard)
- 21 CFR PART 1040 (U.S. FDA Regulation)
CAUTION
Warning: LASER LIGHT, DO NOT STARE INTO BEAM
Classification: CLASS 2 LASER PRODUCT
Specifications:
Max. Power: ≤ 1 mW
Wavelength: 650 nm
Pulse: 1.3 ns
Standards Compliance:
- 21 CFR PART 1040 (U.S. FDA Regulation)
- EN 60825-1:2003-10 (European Standard)

What’s More…

Benefits Introduce In Detail

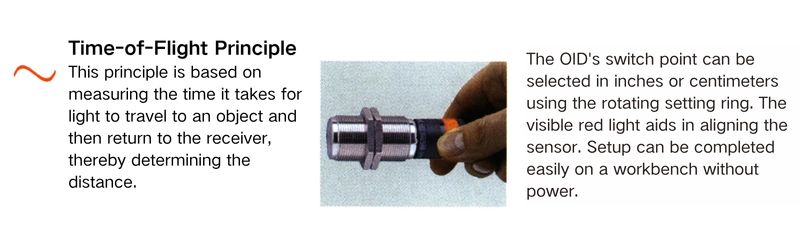

OID Sensors: Simple Setup with “Time-of-Flight” Measurement via PMD Technology

The OID series of photoelectric sensors integrates the “time-of-flight” measurement principle and PMD technology for reliable detection in industrial automation applications. PMD technology offers advantages including long detection range, reliable background suppression, and a visible red light spot for easy setup and high excess gain. The OID’s detection range extends up to 2 meters.

OID sensors provide reliable optical performance, unaffected by the target object’s color. Regardless of whether the object is reflective, matte, dark, or bright, the OID offers excellent background suppression.

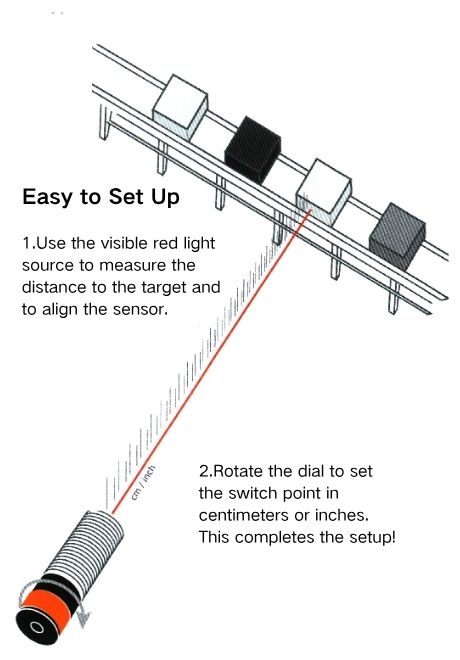

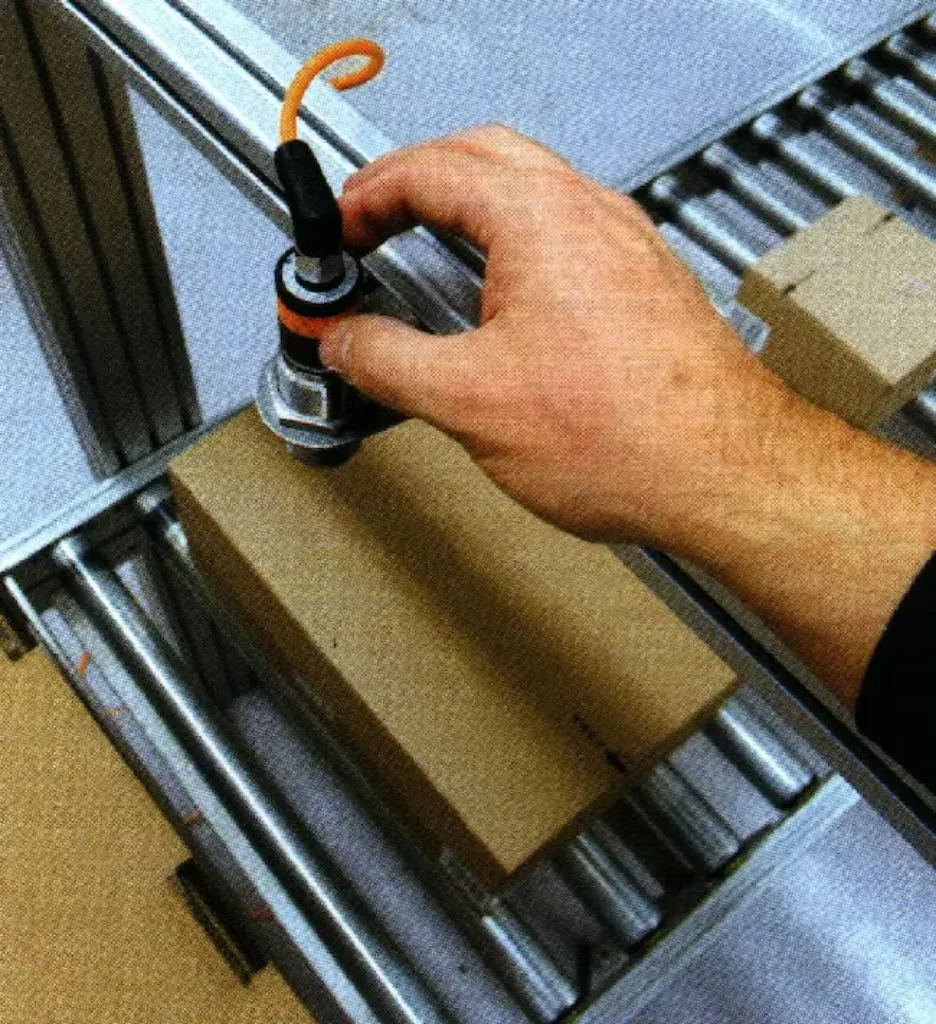

OID200, OID202, and OID250 models are equipped with a setting ring for quick adjustment of the switch point. Parameters can also be set via IO-Link LineRecorder Device software. OID204 and OID254 models feature a one-piece design with a fully sealed stainless steel housing. These robust sensors are ideal for harsh environments and also support IO-Link parameter setting.
