IFM OJ 5030 Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

Small rectangular housing｜Max. detection range 10 m

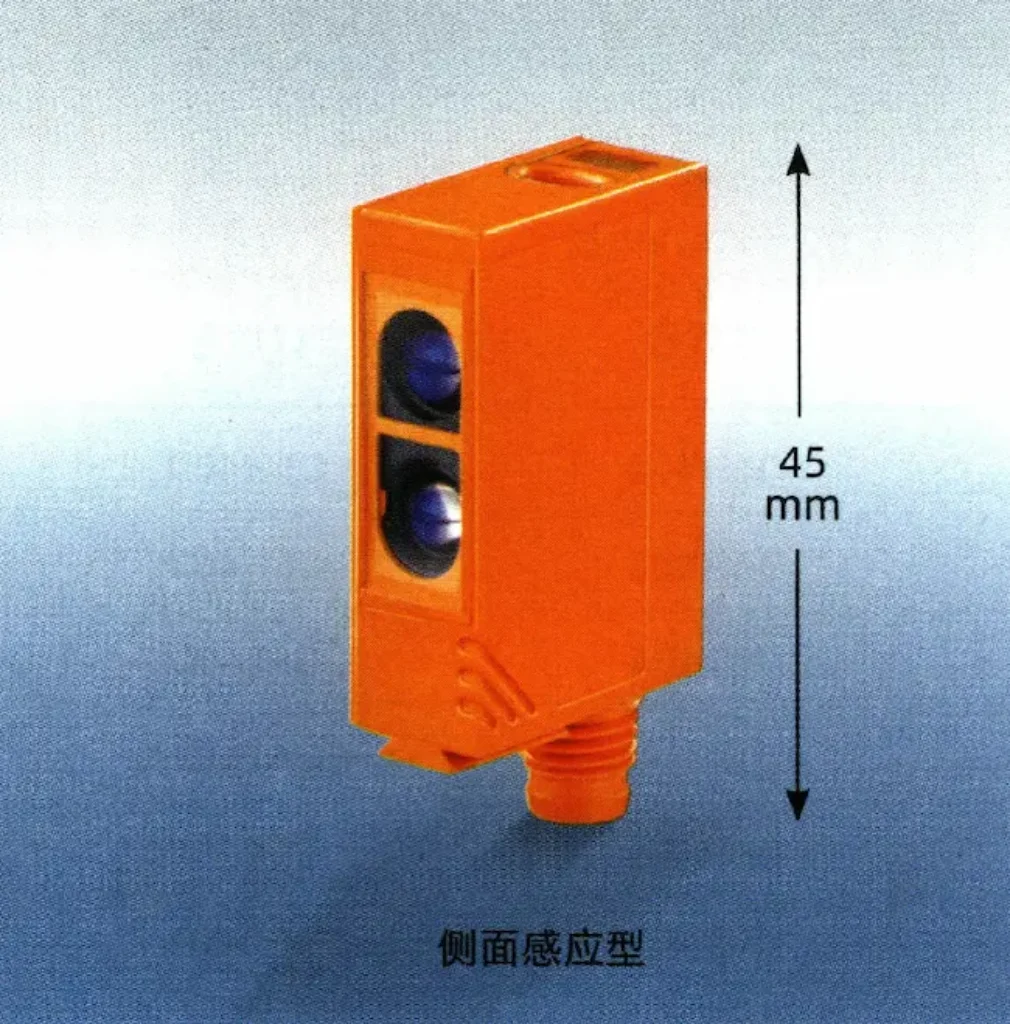

— The OJ photoelectric sensor uses a visible LED as a light source, has dimensions of only 24 x 45 x 11 mm, and with a switching speed of up to 2000 Hz, this series of sensors is suitable for most high-speed applications. The OJ sensor can be used with a wide range of mounting brackets, supporting most installation configurations.

IFM OJ 5030 Series Photoelectric Sensor

Technical Features

Small size, large detection range! The compact design is an ideal choice for applications with limited installation space.

Very suitable for detecting small components, with a response time of only 500 µs in high-speed applications.

Continuously monitors the strength of the received signal and provides a visible LED warning under marginal operating conditions.

Programmable light-on/dark-on, flexible application.

The advanced microprocessor has powerful signal processing capabilities and supports automatic adjustment to maximize the safety margin.

Products + Accessories Selection:

Function	Range	Output	Spot Diameter at Max. Range Ø	Supply Current	Switching Frequency	Light Source	Order No.
Diffuse reflection sensor (with background suppression)	15…400 mm	LO/DO PNP	18 mm	25 mA	1000 Hz	Red light 660 nm	OJ5048
15…400 mm	LO/DO NPN	18 mm	25 mA	1000 Hz	Red light 660 nm	OJ5049
Diffuse reflection sensor	1…600 mm	LO/DO PNP	60 mm	22 mA	2000 Hz	Red light 660 nm	OJ5022
1…600 mm	LO/DO NPN	60 mm	22 mA	2000 Hz	Red light 660 nm	OJ5023
1…1000 mm	LO/DO PNP	150 mm	32 mA	2000 Hz	Infrared light 880 nm	OJ5071
Polarized retro-reflective sensor	0…2 m	LO/DO PNP	64 mm	22 mA	2000 Hz	Red light 660 nm	OJ5026
0…2 m	LO/DO NPN	64 mm	22 mA	2000 Hz	Red light 660 nm	OJ5027
Through-beam receiver	0…10 m	LO/DO PNP	–	12 mA	1200 Hz	Red light 660 nm	OJ5031
0…10 m	LO/DO NPN	–	12 mA	1200 Hz	Red light 660 nm	OJ5032
Through-beam transmitter	0…10 m	–	1000 mm	19 mA	–	Red light 660 nm	OJ5030

Optional Accessories

Type	Description	Order No.

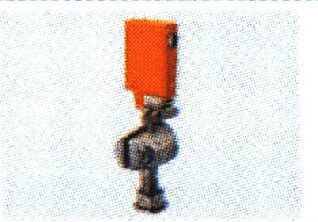

Ball-and-socket bracket	Ball-and-socket bracket with groove	E20974

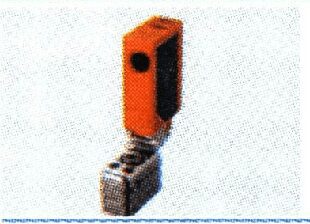

Swivel mount	Swivel mount for side-sensing OJ sensors	E20968
Reflector	50 mm reflector	E20956
80 mm reflector	E20005
Swivel mount with reflector	Swivel mount with 50 mm reflector	E20997
Swivel mount with 80 mm reflector	E20995

Accessory Cables

Type	Description	Order No.
Straight M8 Pico Connector	M8 Pico DC (4-pin) 2 m, PUR	EVC150
M8 Pico DC (4-pin) 5 m, PUR	EVC151
Angled M8 Pico Connector	M8 Pico DC (4-pin) 2 m, PUR	EVC153
M8 Pico DC (4-pin) 5 m, PUR	EVC154

Specifications:

Power supply voltage: 10…30 VDC
Number of cores: 3-wire; Model OJ5030: 2-wire
Max. load current: 200 mA
Voltage drop: < 2.5 V
Leakage current: Negligible
Connector: M8
Housing material: ABS, Die-cast zinc, SEPS
Lens material: Glass; Models OJ5048 and OJ5049: PMMA
Operating temperature: -25…60 °C
Protection rating: IP67

Benefits Introduce In Detail

Compact Design and Automatic Setup

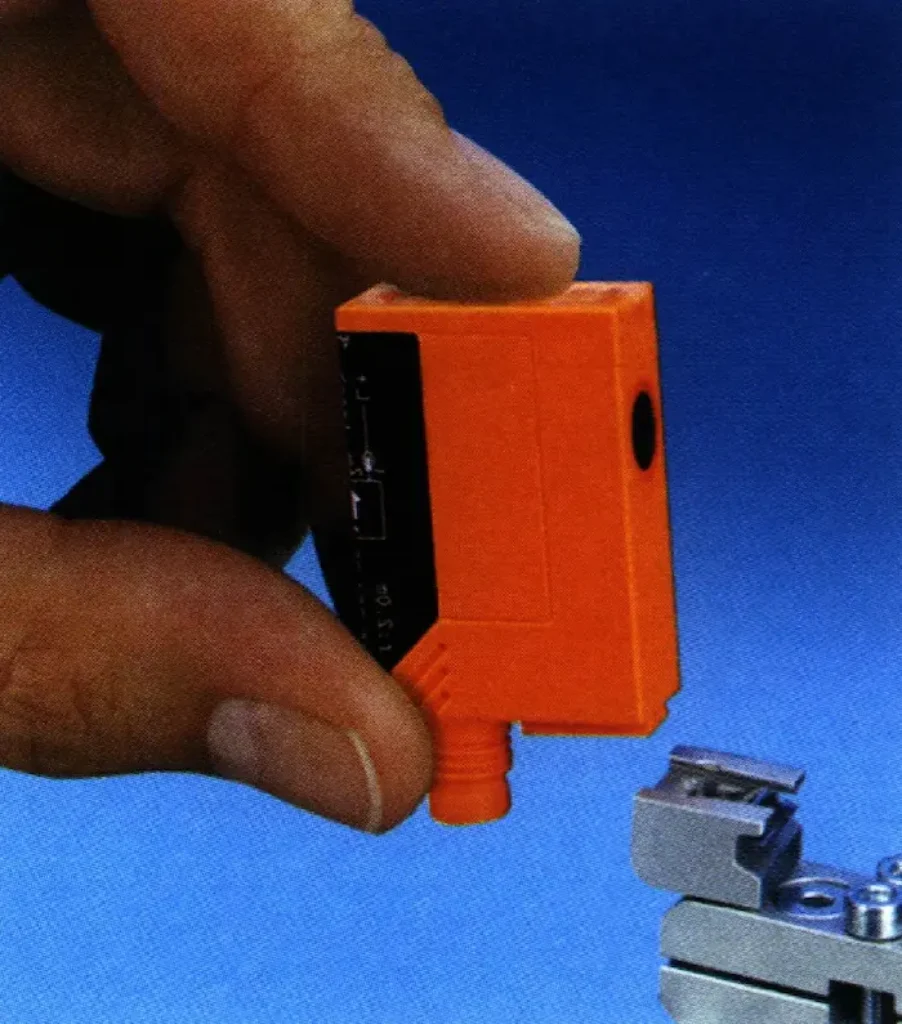

The OJ photoelectric sensor uses a visible LED as a light source, has dimensions of only 24 x 45 x 11 mm, and with a switching speed of up to 2000 Hz, this series of sensors is suitable for most high-speed applications. The OJ sensor can be used with a wide range of mounting brackets, supporting most installation configurations.

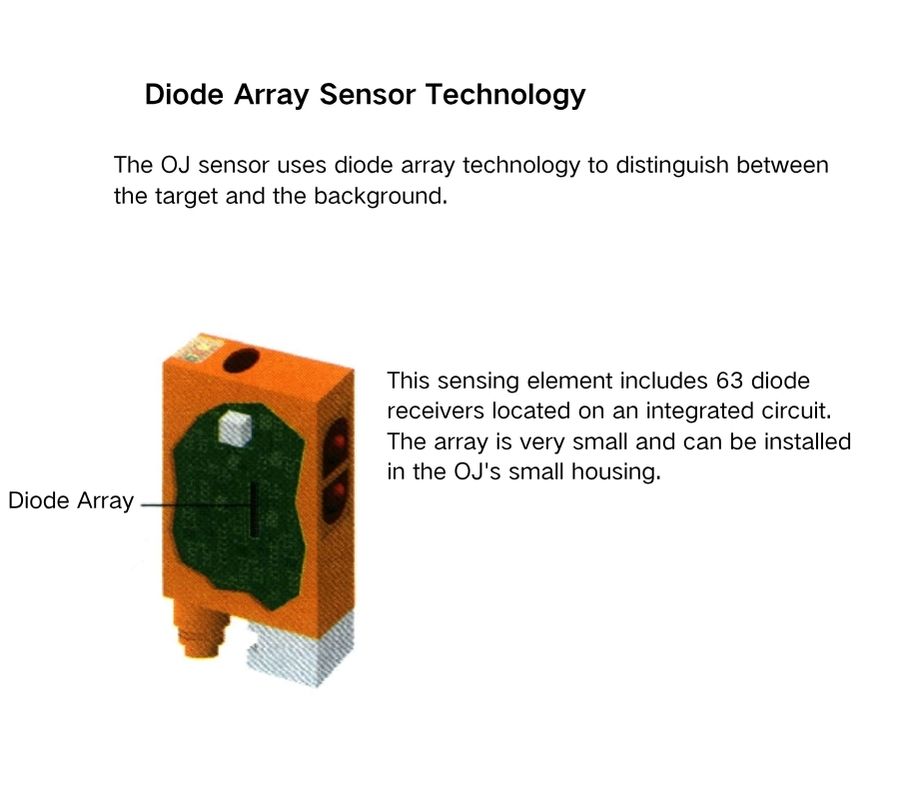

The advanced microprocessor has powerful signal processing and analysis capabilities. This allows the OJ to learn the characteristics of the target and the background in specific applications.

During the initial installation process, an automatic calibration will determine the light conditions when the target is present and when it is not. The OJ’s sensitivity is then automatically adjusted to ensure the highest safety margin under both conditions.
