IFM OPU/OPL Series Photoelectric Sensor

Deal Score0

2025/7/4 Update

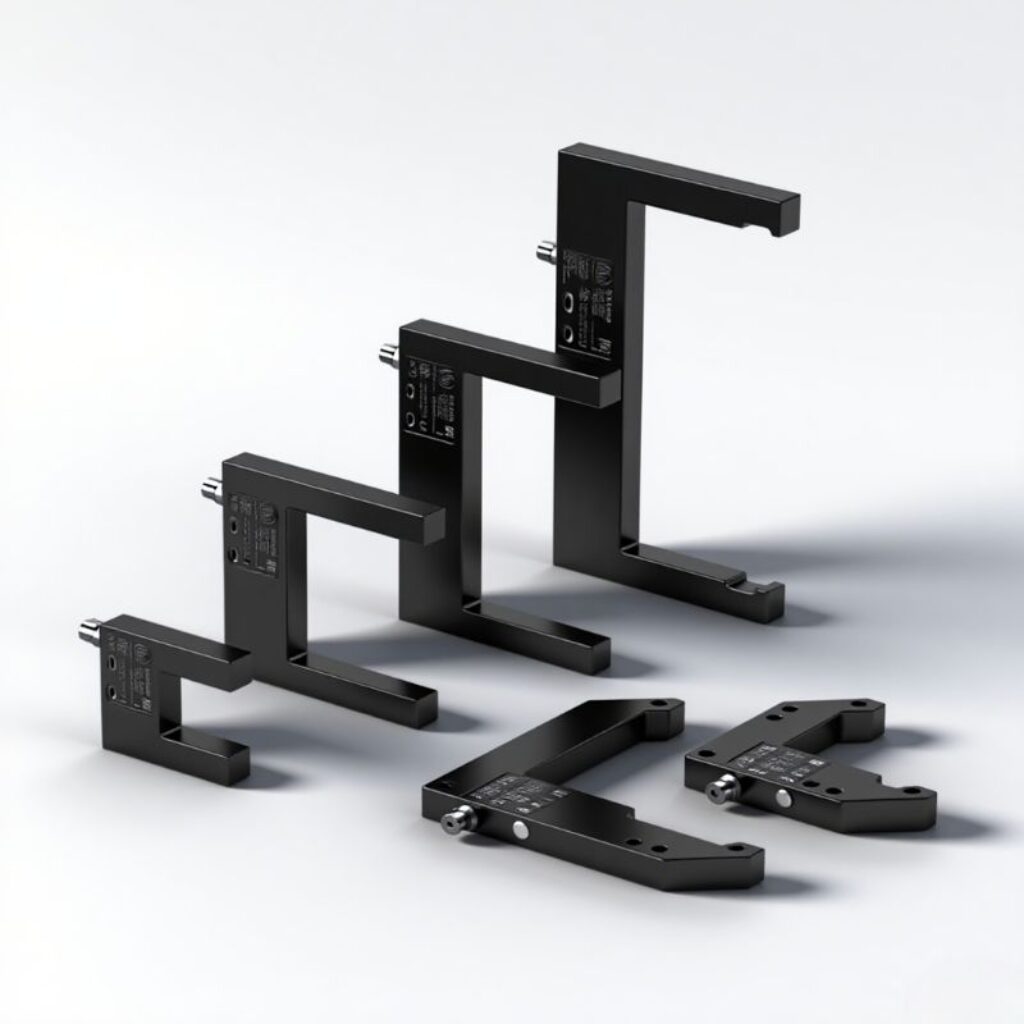

Fork and Angle Type Housings｜ Maximum sensing range 120 mm
— Ifm’s fork and angle type sensors are a flexible solution suitable for a wide range of packaging and material handling applications.

IFM OPU/OPL Series Photoelectric Sensor

Technical Features

Fork and angle type sensors adopt a one-piece housing, saving setup time

Accurate alignment – no need to align emitter and receiver

Rugged metal housing with mounting holes allows for easy installation without brackets

Laser sensor is very suitable for detecting small parts

Selectable Light ON / Dark ON mode via rotary switch for flexible application

Products + Accessories Selection:

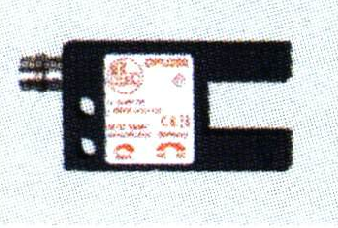

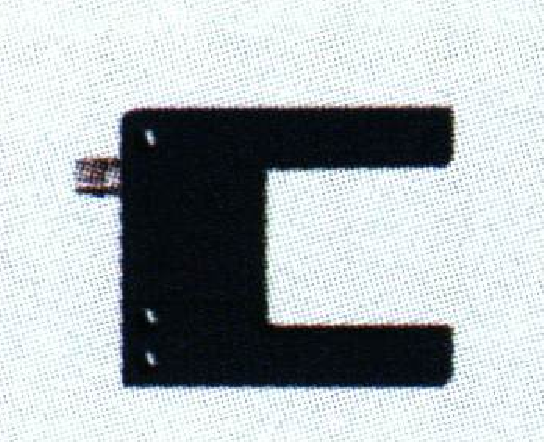

Fork sensor	Fork width (w)	Fork depth (d)	Output	Min. detectable object diameter Ø	Light source	Switching frequency	Order No.
Visible red light and infrared light
	10 mm	17 mm	LO / DO, PNP / NPN	0.2 mm	Infrared light 880 nm	10000 Hz	OPU200
	20 mm	25 mm	LO / DO, PNP	0.3 mm	Red light 660 nm	5000 Hz	OPU201
30 mm	35 mm	LO / DO, PNP	0.3 mm	Red light 660 nm	5000 Hz	OPU202
50 mm	55 mm	LO / DO, PNP	0.3 mm	Red light 660 nm	5000 Hz	OPU203
80 mm	55 mm	LO / DO, PNP	0.3 mm	Red light 660 nm	5000 Hz	OPU204
120 mm	60 mm	LO / DO, PNP	0.5 mm	Red light 660 nm	5000 Hz	OPU205
Class 1 Laser
	30 mm	35 mm	LO / DO, PNP	0.05 mm	Class 1 laser, Red light 655 nm	5000 Hz	OPU700
50 mm	55 mm	LO / DO, PNP	0.05 mm	Class 1 laser, Red light 655 nm	5000 Hz	OPU701
80 mm	55 mm	LO / DO, PNP	0.05 mm	Class 1 laser, Red light 655 nm	5000 Hz	OPU702

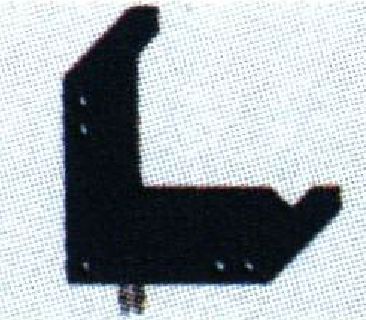

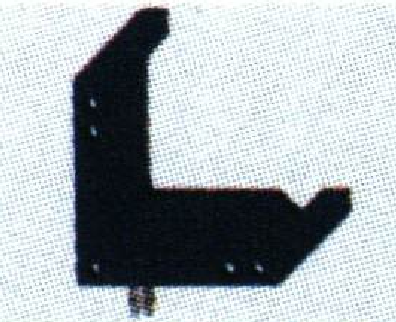

Corner sensor	Side length (x, y)	Sensor width (z)	Output	Min. detectable object diameter Ø	Light source	Switching frequency	Order No.
Visible red light
	50 mm	60 mm	LO / DO, PNP	0.3 mm	Red light	5000 Hz	OPL200
80 mm	100 mm	LO / DO, PNP	0.3 mm	Red light	5000 Hz	OPL201

Connecting Cables:

Type	Description	Order no.
	M8 Pico (3-pin) 2 m, PUR cable	EVC141
M8 Pico (3-pin) 5 m, PUR cable	EVC142
	M8 Pico (3-pin) 2 m, PUR cable	EVC144
M8 Pico (3-pin) 5 m, PUR cable	EVC145

Specifications:

Operating voltage:
- 10…35 VDC
- Laser: 10…30 VDC
Short-circuit protection, pulse: Yes
Reverse polarity/overload protection: Yes/Yes
Operating temperature:
- -25…60 °C
- Laser: 5…45 °C
Rated current: 200 mA
Protection class: IP67
Housing material: Die-cast zinc
CLASS 1 Laser Product
IEC60825-1:2007
IEC60825-1:2014
21CFR PART1040
Class 1 Laser

What’s More:

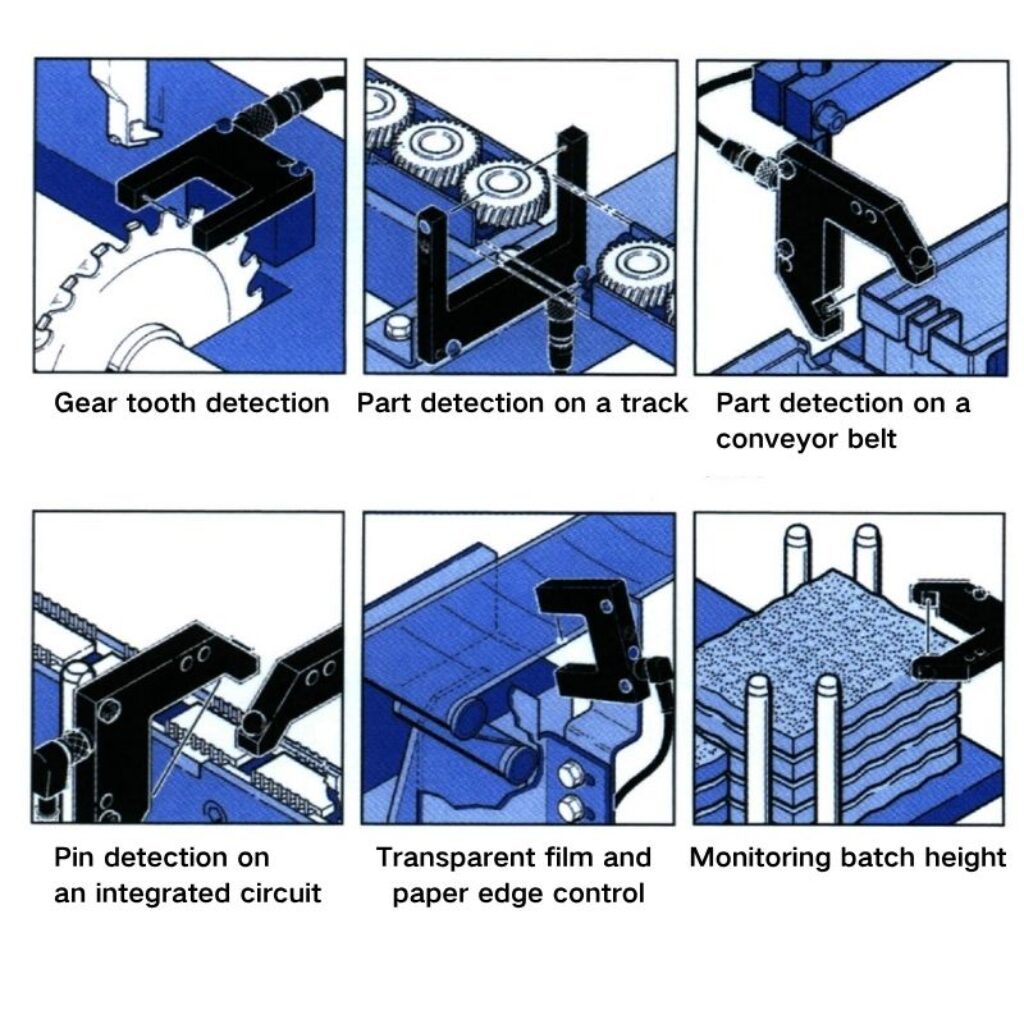

Gear tooth detection Part detection on a track Part detection on a conveyor belt Pin detection on an integrated circuit Transparent film and paper edge control Monitoring batch height

Benefits Introduce In Detail

Fork and Angle Type Photoelectric Sensors Use a Rugged Metal Housing for Simple Setup and Accurate Alignment

Ifm’s fork and angle type sensors are a flexible solution suitable for a wide range of packaging and material handling applications. Unlike traditional through-beam photoelectric sensors, ifm’s fork and angle type sensors use a one-piece design with a fixed distance between the emitter and receiver. This avoids time-consuming emitter and receiver alignment operations.

Due to the rugged metal housing, these sensors do not warp or deform as often as traditional plastic fork sensors. A visible red light beam covers the entire width, assisting with setup. Sensitivity can be easily adjusted via a potentiometer. Integrated mounting holes allow for easy installation without brackets.

Fork type housings are available with slot widths from 10 mm to 120 mm. Angle type sensors are available with a width range from 60 mm to 100 mm.
