IFM PA 3000 Series Pressure Transmitter

Pressure Sensor Switch, Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Analog output｜Pressure range 0…345 bar｜DC
— The PA compact pressure transmitter provides an analog output and can indicate pressure. Output options include 4…20 mA and 0…10 V.

IFM PA 3000 Series Pressure Transmitter

Technical Features

4…20 mA fixed range output – plug and play.

IP69K small housing – only 19mm in diameter, easy to install in tight spaces.

Stainless steel measuring element with thin-film technology – can measure high-pressure gases and provides better chemical compatibility; using ceramic technology yields a better bursting pressure rating.

G1/4″ integrated process connection – can be installed in common applications without extra adapters.

Laser-etched label – readable even in harsh environments.

Products + Accessories Selection:

Fixed analog output	Measuring range (bar)	Overpressure (bar)	Bursting pressure (bar)	Port size	Order no.
4…20 mA	0-6	15	200	G 1/4 external thread	PT5415
4…20 mA	0-10	25	300	G 1/4 external thread	PT5404
4…20 mA	0-16	40	450	G 1/4 external thread	PT5414
4…20 mA	0-25	65	600	G 1/4 external thread	PT5403
4…20 mA	0-30	65	600	G 1/4 external thread	PT5453
4…20 mA	0-60	150	900	G 1/4 external thread	PT5423
4…20 mA	0-100	250	1000	G 1/4 external thread	PT5402
4…20 mA	0-250	625	1200	G 1/4 external thread	PT5401
4…20 mA	0-160	400	1100	G 1/4 external thread	PT5412
4…20 mA	0-400	1000	1700	G 1/4 external thread	PT5400
4…20 mA	0-600	1500	2500	G 1/4 external thread	PT5460

Optional Accessories

Type	Description	Order No.

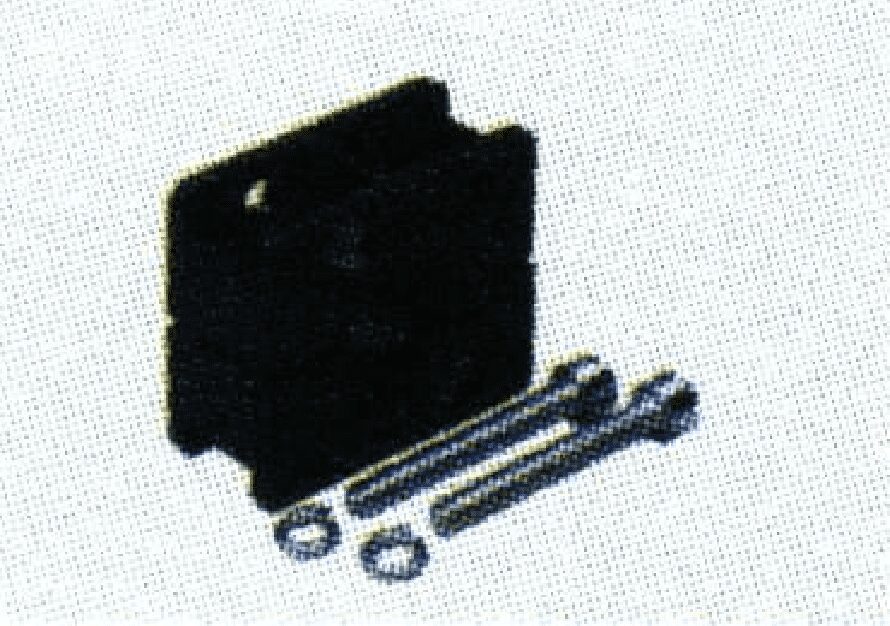

	Mounting clamp	E10077
	Stainless steel (1.4404 / 316L), seal: FKM, G 1/4 external thread	E30143
	Steel (1.0345), G 1/4	E30140

Connecting tables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Power supply voltage: PX3: 9.6…32 VDC; PX9: 16…32 VDC
PX3 maximum load: [ (Power supply voltage – 9.6) x 50]; 720 at 24 VDC
PX9 minimum load: 2000 Ω
Medium temperature range: -25…90 °C
Accuracy: < ± 0.75% of full scale
Repeat accuracy: < ± 0.15% of full scale
Wetted parts: 303 stainless steel, ceramic, FPM
Protection class: IP68 / IP69K (25 bar range or lower: IP65)

What’s More:

Benefits Introduce In Detail

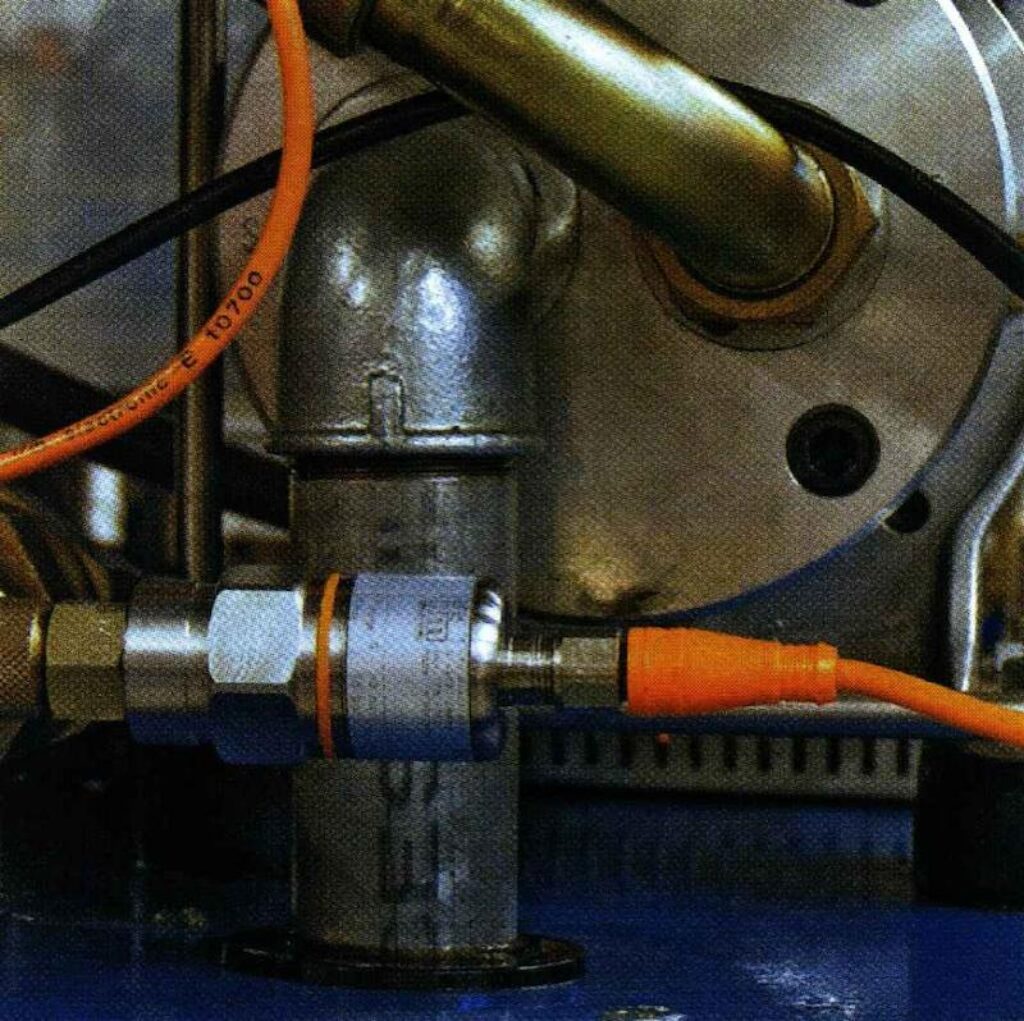

Compact design for applications with limited installation space

The PA compact pressure transmitter provides an analog output and can indicate pressure. Output options include 4…20 mA and 0…10 V.

The PA pressure switch is an ideal alternative to mechanical piston pressure transmitters. It utilizes a ceramic measuring element, allowing it to reliably monitor pipe pressure and withstand certain corrosive media.

Capacitive sensing technology using ceramic-capacitive measuring elements

The most important component of capacitive sensing technology is the ceramic pressure-sensing element made of aluminum oxide (Al₂O₃).

After assembly, the ceramic pressure-sensing element resembles a capacitor plate, with a reference electrode and a measuring electrode spaced 10 µm apart by a diaphragm. The capacitance is inversely proportional to the distance between the two electrodes. When pressure is applied to the measuring element, the distance decreases slightly, causing the capacitance to change proportionally. The signal is then processed by a microcontroller on a flexible circuit board.
