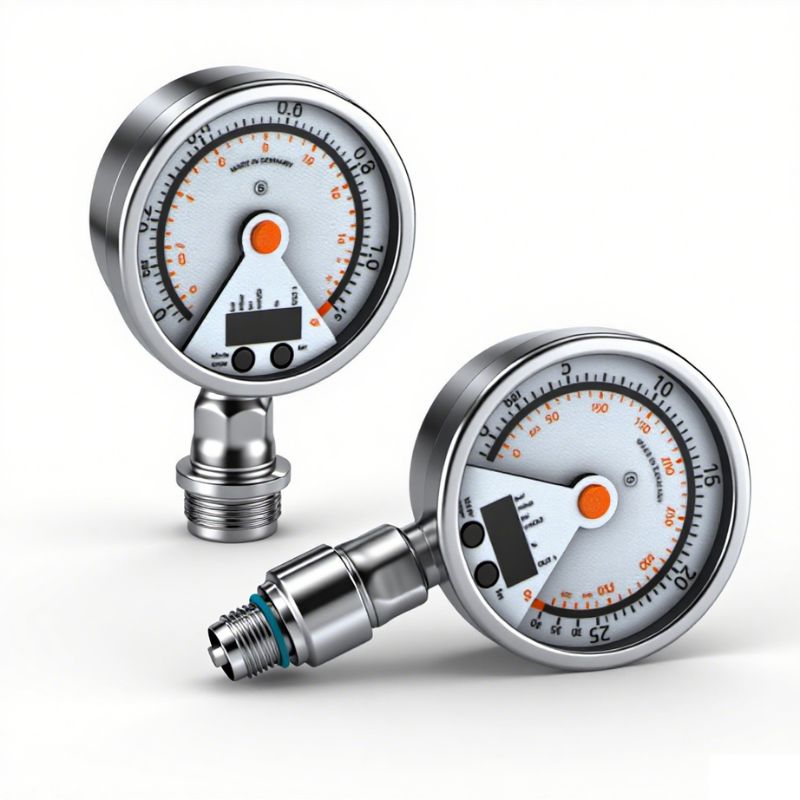

IFM PG 2000 Series Pressure Transmitter
Deal Score0
2025/7/4 Update
Analog and switch output, with gauge display｜Pressure range: -1…400 bar
— ifm’s PG series pressure transmitter provides a 3-in-1 solution for pressure applications. The PG uses a lightweight stainless steel housing and can function as a transmitter, switch, and pressure gauge.
— ifm’s PG series pressure transmitter provides a 3-in-1 solution for pressure applications. The PG uses a lightweight stainless steel housing and can function as a transmitter, switch, and pressure gauge.
IFM PG 2000 Series Pressure Transmitter
Technical Features
Products + Accessories Selection:
| Measuring Range | Extended Display | Overpressure | Adjustable Start Point | Adjustable End Point | Set Point | Port Size | Order No. |
|---|---|---|---|---|---|---|---|
| Vacuum Transmitter • 4-20 mA and PNP / NPN • N.O. / N.C. | |||||||
| -1…1 bar | 1.6 bar | 30 bar | -1…1.1 bar | -0.5…1.6 bar | -0.992…1.6 bar | G 1/2 external thread | PG2409 |
| -1…4 bar | 6.4 bar | 30 bar | -1…5.4 bar | 0…6.4 bar | -0.98…6.4 bar | G 1/2 external thread | PG2455 |
| -1…10 bar | 16 bar | 50 bar | -1…13.5 bar | 1.5…16 bar | -0.96…16 bar | G 1/2 external thread | PG2454 |
| -1…25 bar | 40 bar | 100 bar | -1…33.75 bar | 5.25…40 bar | -0.9…40 bar | G 1/2 external thread | PG2453 |
| Pressure Transmitter • 4-20 mA and PNP / NPN • N.O. / N.C. | |||||||
| -5…100 mbar | 160 mbar | 4 bar | -5…135 mbar | 20…160 mbar | -4.6…160 mbar | G 1/2 external thread | PG2489 |
| -12.5…250 mbar | 400 mbar | 6 bar | -12.5…337.5 mbar | 50…400 mbar | -11.5…400 mbar | G 1/2 external thread | PG2458 |
| -0.05…1 bar | 1.6 bar | 10 bar | -0.05…1.34 bar | 0.2…1.6 bar | -0.046…1.6 bar | G 1/2 external thread | PG2457 |
| -0.125…2.5 bar | 4 bar | 20 bar | -0.125…3.35 bar | 0.525…4 bar | -0.115…4 bar | G 1/2 external thread | PG2456 |
| -1…4 bar | 6.4 bar | 30 bar | -1…5.4 bar | 0…6.4 bar | -0.98…6.4 bar | G 1/2 external thread | PG2455 |
| -1…10 bar | 16 bar | 50 bar | -1…13.5 bar | 1.5…16 bar | -0.96…16 bar | G 1/2 external thread | PG2454 |
| -1…25 bar | 40 bar | 100 bar | -1…33.75 bar | 5.25…40 bar | -0.9…40 bar | G 1/2 external thread | PG2453 |
| 0…100 bar | 160 bar | 300 bar | 0…135 bar | 25…160 bar | 0.4…160 bar | G 1/2 external thread | PG2452 |
| 0…250 bar | 400 bar | 600 bar | 0…350 bar | 50…400 bar | 1…400 bar | G 1/2 external thread | PG2451 |
| 0…400 bar | 600 bar | 800 bar | 0…500 bar | 100…600 bar | 2…600 bar | G 1/2 external thread | PG2450 |
Optional Accessories
| Type | Description | Order No. |
|---|---|---|
 | For pressure sensors with M5 female thread | E30057 |
 | Steel (1.0345), G 1/2 | E30141 |
Connecting tables
| Type | Description | Order No. |
|---|---|---|
 | M12 Micro DC (4-pin) 2 m, PUR | EVC001 |
| M12 Micro DC (4-pin) 5 m, PUR | EVC002 | |
| M12 Micro DC (4-pin) 10 m, PUR | EVC003 | |
 | M12 Micro DC (4-pin) 2 m, PUR | EVC004 |
| M12 Micro DC (4-pin) 5 m, PUR | EVC005 | |
| M12 Micro DC (4-pin) 10 m, PUR | EVC006 |
Specifications:
- Operating voltage: 18…32 VDC
- Max. load current: 250 mA
- Switch point accuracy: <± 0.6%
- Switch point accuracy of extended display range: 0.5%
- Repeatability: <± 0.1%
- Characteristic curve deviation: < ± 0.25 (BFSL) / < ± 0.5 (LS)
- Medium temperature: -25…80 °C
- Wetted parts: 316L stainless steel, ceramic, FPM
- Analog range adjustment ratio: 4:1
- Protection class: IP67 / IP69K
What’s More:

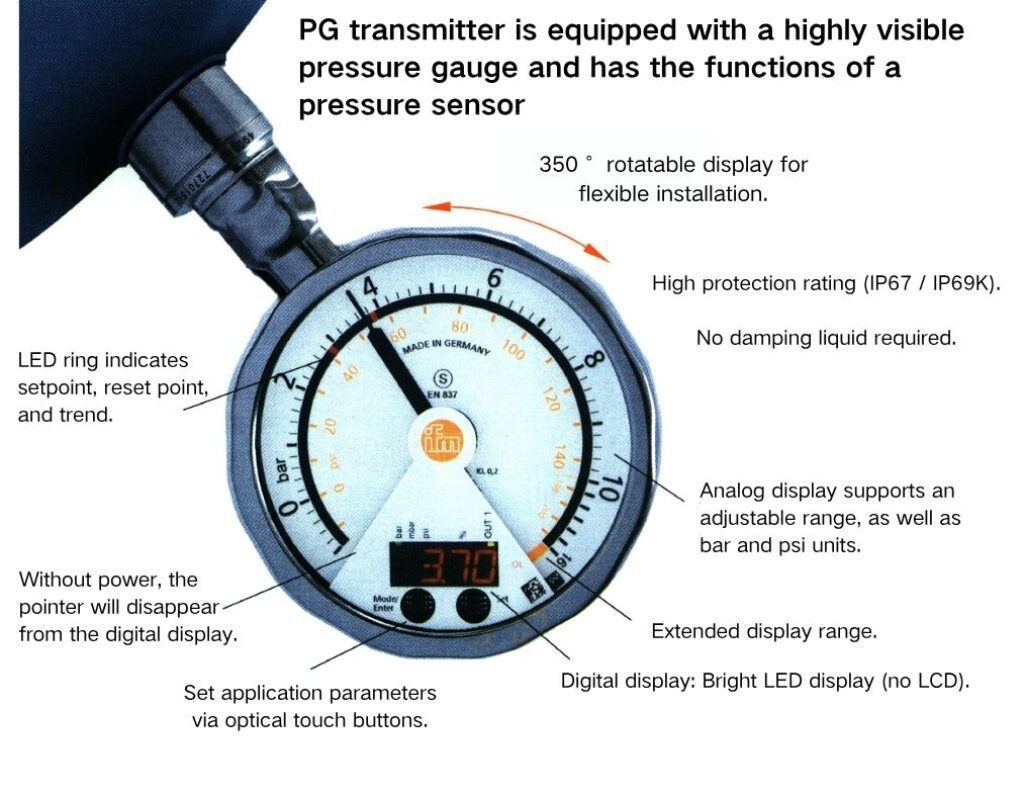

High-precision measurement
Benefits Introduce In Detail
