IFM PG/PM/PI Type Pressure Sensor

Deal Score+1

Contact Pressure Continuous Level Detection
— Suitable for industrial and sanitary applications in storage tanks and free-flowing waterways.

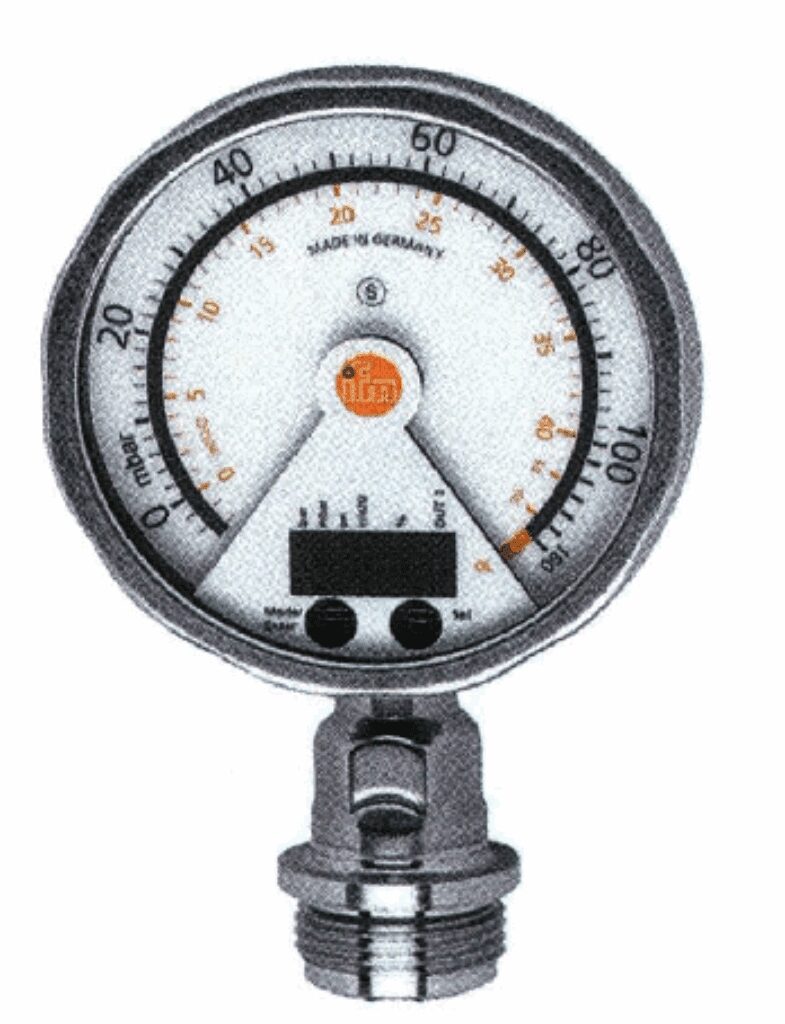

PG Type Pressure Sensor Switch Features&Spec

Optimal readability due to electronic pointer display.

Rotatable display.

Displays trends or minimum and maximum values.

Factory setting Measuring range relative pressure [mbar]	Process connection
Factory setting Measuring range relative pressure [mbar]	G1 male connector, Aseptoflex Vario Order No.	G1 male connector, sealing face Order No.
1 switching output and 1 analog output, 4…20 mA / 20…4 mA, adjustable
0…100	PG2789	PG2889
0…250	PG2798	PG2898
0…1000	PG2797	PG2897
-1000…1000	PG2799	PG2899

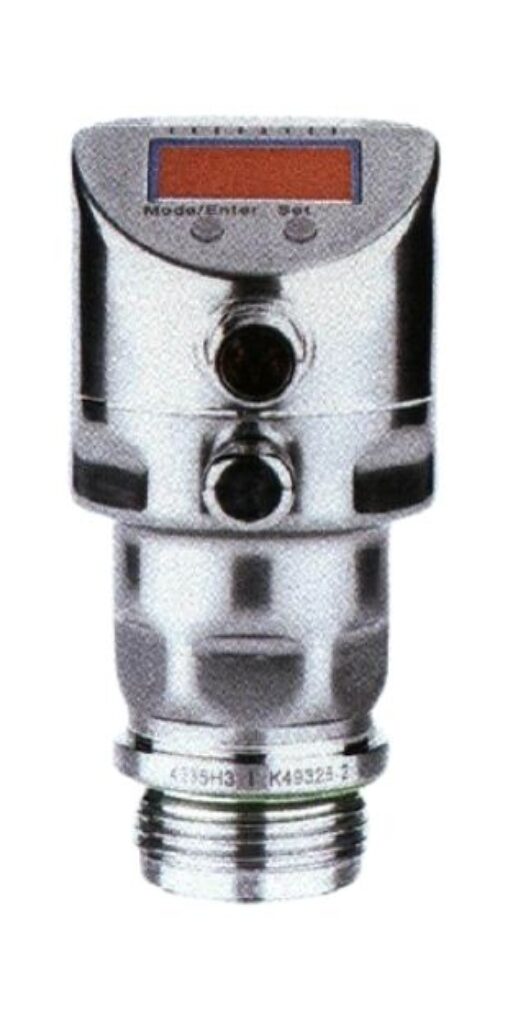

Programmable analog output.

Accuracy 0.2%.

With IO-Link function.

Factory setting Measuring range relative pressure [mbar]	Process connection
Factory setting Measuring range relative pressure [mbar]	G1 male connector Aseptoflex Vario Order No.	G1 male connector sealing face Order No.
Analog output, 4…20 mA, adjustable
0…1600	PM1717	PM1617
-1000…1000	PM1709	PM1609
0…1000	PM1707	PM1607
0…250	PM1708	PM1608
0…100	PM1789	PM1689

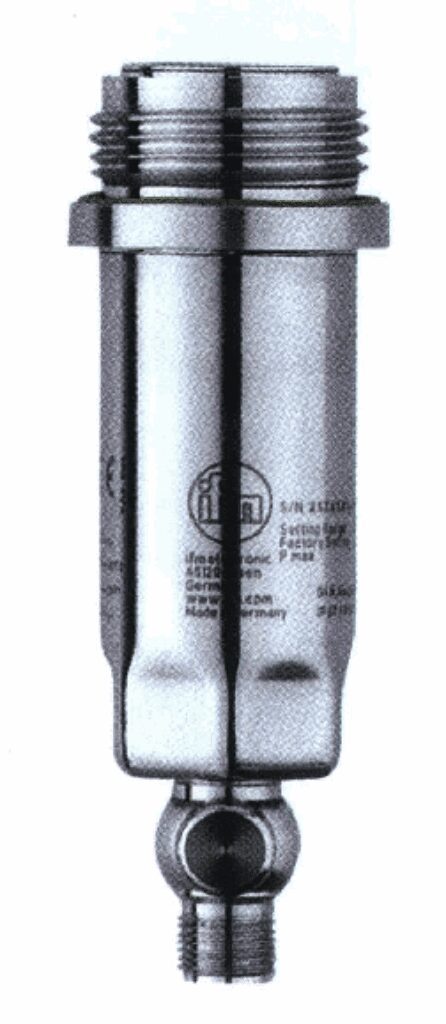

2-wire programmable analog output.

Additional 3/4-wire switching output.

With IO-Link function.

Factory setting Measuring range relative pressure [mbar]	Process connection
Factory setting Measuring range relative pressure [mbar]	G1 male connector Aseptoflex Vario Order No.	G1 male connector sealing face Order No.
1 switching output and 1 analog output, 4…20 mA / 20…4 mA
0…100	PI2789	PI2889
0…250	PI2798	PI2898
0…1000	PI2797	PI2897
-1000…1000	PI2799	PI2899
0…1600	PI2717	PI2817

Hygienic: High protection rating; materials and certifications meet hygienic requirements.
Rugged: High overload-resistant ceramic-capacitive measuring element, with long-term stability.
Wide Application: Multiple process connections available.
Precise: High accuracy (0.2%).
Suitable for CIP / SIP: High temperature resistance and electronic temperature compensation.

IFM Water Level Sensor Switches – Complete Model Overview

Sensor Model	Maximum Measurement Range [cm]	Analog Output	Switch Output	Certifications
LMT, LMC	–	–	✔	EHEDG, 3A, FDA EC 1935, WHG+ ATEX
LI	–	–	✔	WHG*
KG, KI, KQ	–	–	✔	–
LK, LT	73	✔	✔	WHG*
LR	200	✔	✔	EHEDG, 3A, FDA EC 1935, WHG+
PG, PI, PA, PN	–	✔	✔	EHEDG, 3A, FDA EC 1935, ATEX
UGT	220	✔	✔	–
