IFM PN 2000 Series Pressure Sensor Switch

Technical Features

With multiple outputs, including an adjustable-range analog output, for high flexibility.

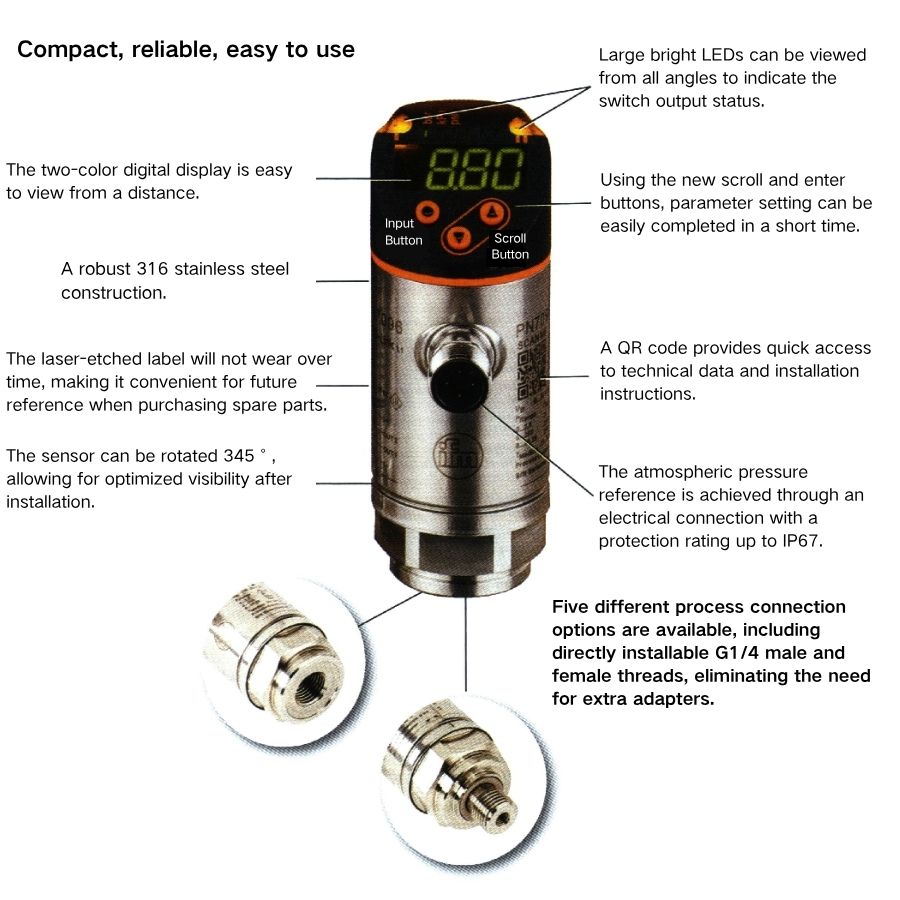

Integrated built-in display, no reference pressure gauge needed; the value can be set to green or red, making the status indication clear at a glance.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Two large, bright LEDs for output indication can be easily seen from all angles.

Stainless steel construction designed for durable use in harsh environments.

Products + Accessories Selection:

2 x PNP / NPN • N.O. / N.C.

Measuring range (bar)	Overpressure/Burst pressure (bar)	Order no. G 1/4 female thread port size	Order no. G1/4 male thread port size
Vacuum transmitter • 4…20 mA / 0…10 V and PNP / NPN or 2 x PNP / NPN switch
-1…1	10 / 30	PN2099 ⓒ	PN2599 ⓒ
-1…10	75 / 150	PN2094 ⓒ	PN2594 ⓒ
-1…25	150 / 350	PN2093 ⓒ	PN2593 ⓒ
Pressure transmitter • 4…20 mA / 0…10 V and PNP / NPN or 2 x PNP / NPN switch
-0.0125…0.25	6 / 30	PN2098 ⓒ	PN2598 ⓒ
-0.05…1	10 / 30	PN2097 ⓒ	PN2597 ⓒ
-0.125…2.5	20 / 50	PN2096 ⓒ	PN2596 ⓒ
-1…10	75 / 150	PN2094 ⓒ	PN2594 ⓒ
-1…25	150 / 350	PN2093 ⓒ	PN2593 ⓒ
0…100	300 / 650	PN2092 ⓒ	PN2592 ⓒ
0…250	500 / 1200	PN2071 ⓒ	PN2571 ⓒ
0…400	800 / 1700	PN2070 ⓒ	PN2570 ⓒ
0…600	800 / 2500	PN2160 ⓒ	PN2560 ⓒ

Optional Accessories

Type	Description	Order No.
	Universal angle bracket	E30421
	Damping screw for external thread G1/4, prevents pressure peaks and overpressure shocks	E30419
	Damping screw for internal thread G1/4, prevents pressure peaks and overpressure	E30057
	Siphon tube, for cooling and preventing pressure shocks, G1/4 external thread	E30140
	Breather-hole protection, prevents zero point drift caused by condensation and dusty environments	E30432
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, convenient for easily copying sensor parameters without a computer	E30398

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Power supply voltage: 18…30 VDC
Maximum load current: 150 mA per output
Medium temperature range: -25…80 °C
Switch point accuracy: < ± 0.5% of full scale
Wetted parts:
- 316 stainless steel, ceramic, FKM
- PN7x71, PN7x70, PN7160, PN7560: 630 stainless steel (1.4542)
Protection class: IP67

What’s More:

Benefits Introduce In Detail

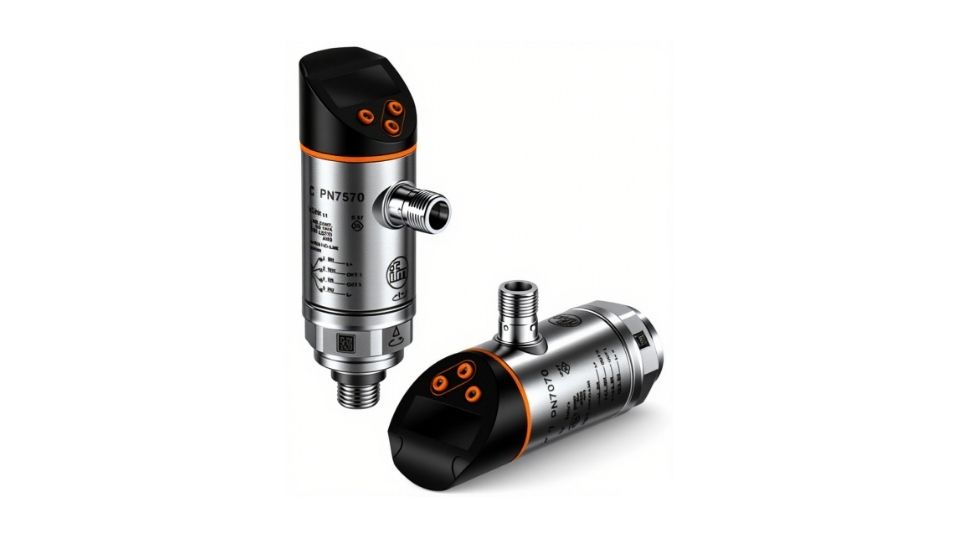

New Generation Pressure Switch

For over 20 years, ifm has provided reliable pressure monitoring products for pneumatic and hydraulic applications.

Now, ifm has launched the next-generation PN2 series of pressure transmitters. This product series offers more powerful functions and can adapt more flexibly to various pressure applications.

Currently, every measuring range of the PN2 series possesses the optimal combination of overpressure, burst pressure, and long-term stability. This technology supports use in high-pressure gases as well as liquid applications. These transmitters use a stainless steel housing, can withstand extreme shock and vibration, and have high accuracy and reliability in most applications.

Now, ifm has launched the next-generation PN2 series of pressure transmitters. This product series offers more powerful functions and can adapt more flexibly to various pressure applications.

Currently, every measuring range of the PN2 series possesses the optimal combination of overpressure, burst pressure, and long-term stability. This technology supports use in high-pressure gases as well as liquid applications. These transmitters use a stainless steel housing, can withstand extreme shock and vibration, and have high accuracy and reliability in most applications.

By adopting innovative design technologies and features to achieve easier application, ifm has once again set a new benchmark for price-performance ratio.
