IFM PN 7000 Series Pressure Sensor Switch

Sensor Switch, Pressure Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Dual switch output, with digital display｜Pressure range -1…600 bar｜DC
— The ifm pressure switch is a solid-state solution that can replace mechanical pressure switches. By having no moving parts that could potentially jam or break, the ifm pressure switch avoids the maintenance problems faced by mechanical switches.

IFM PN 7000 Series Pressure Sensor Switch

Technical Features

Ceramic-capacitive principle solid-state electronic pressure sensor, resistant to aging, more reliable than mechanical switches.

Two solutions: Continuous transmission of process values via IO-Link and 2 switch outputs.

Integrated digital display, clearly visible even in the dark, no longer requires a pressure gauge; values can be set to green or red, making the status indicator clear at a glance.

The bright LEDs of the 2 switch output indicators can be easily seen from a long distance and from all angles.

Stainless steel housing is designed for durable use in harsh environments.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Products + Accessories Selection:

2 x PNP / NPN • N.O. / N.C.

Measuring range (bar)	Overpressure/Burst pressure (bar)	Order no. G 1/4 female thread	Order no. G 1/4 male thread	Order no. 7/16 – 20 female thread
Vacuum switch • 2 x PNP / NPN • N.O. / N.C.
-1…1	10 / 30	PN7099 ⓒ	PN7599 ⓒ	–
-1…10	75 / 150	PN7094 ⓒ	PN7594 ⓒ	–
Pressure switch • 2 x PNP / NPN • N.O. / N.C.
0…1	10 / 30	PN7097 ⓒ	PN7597 ⓒ	–
0…2.5	20 / 50	PN7096 ⓒ	PN7596 ⓒ	–
-1…10	75 / 150	PN7094 ⓒ	PN7594 ⓒ	–
0…25	150 / 350	PN7093 ⓒ	PN7593 ⓒ	–
0…100	300 / 650	PN7092 ⓒ	PN7592 ⓒ	PN7392 ⓒ
0…250	500 / 1100	PN7071 ⓒ	PN7571 ⓒ	–
0…400	800 / 1700	PN7070 ⓒ	PN7570 ⓒ	PN7370 ⓒ
0…600	800 / 2500	PN7160 ⓒ	PN7560 ⓒ	–

Optional Accessories

Type	Description	Order No.

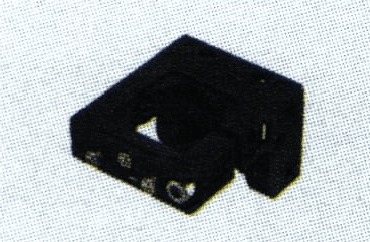

	Universal angle bracket	E30421

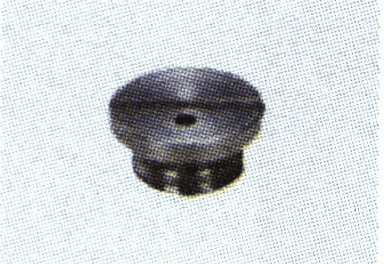

	Damping screw for external thread G1/4, prevents pressure peaks and overpressure shocks	E30419

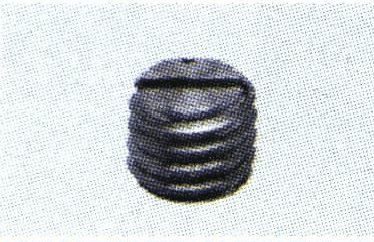

	Damping screw for internal thread G1/4, prevents pressure peaks and overpressure	E30057

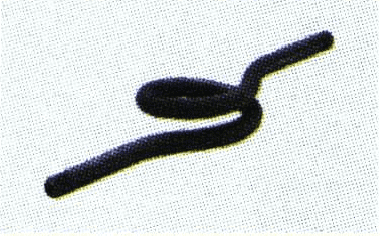

	Siphon tube, for cooling and preventing pressure shocks, G1/4 external thread	E30140
	Breather-hole protection, prevents zero point drift caused by condensation and dusty environments	E30432
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, convenient for easily copying sensor parameters without a computer	E30398

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Specifications:

Power supply voltage: 18…30 VDC
Maximum load current: 150 mA per output
Medium temperature range: -25…80 °C
Switch point accuracy: < ± 0.5% of full scale
Wetted parts:
- 316 stainless steel, ceramic, FKM
- PN7x71, PN7x70, PN7160, PN7560: 630 stainless steel (1.4542)
Protection class: IP67

What’s More:

Benefits Introduce In Detail

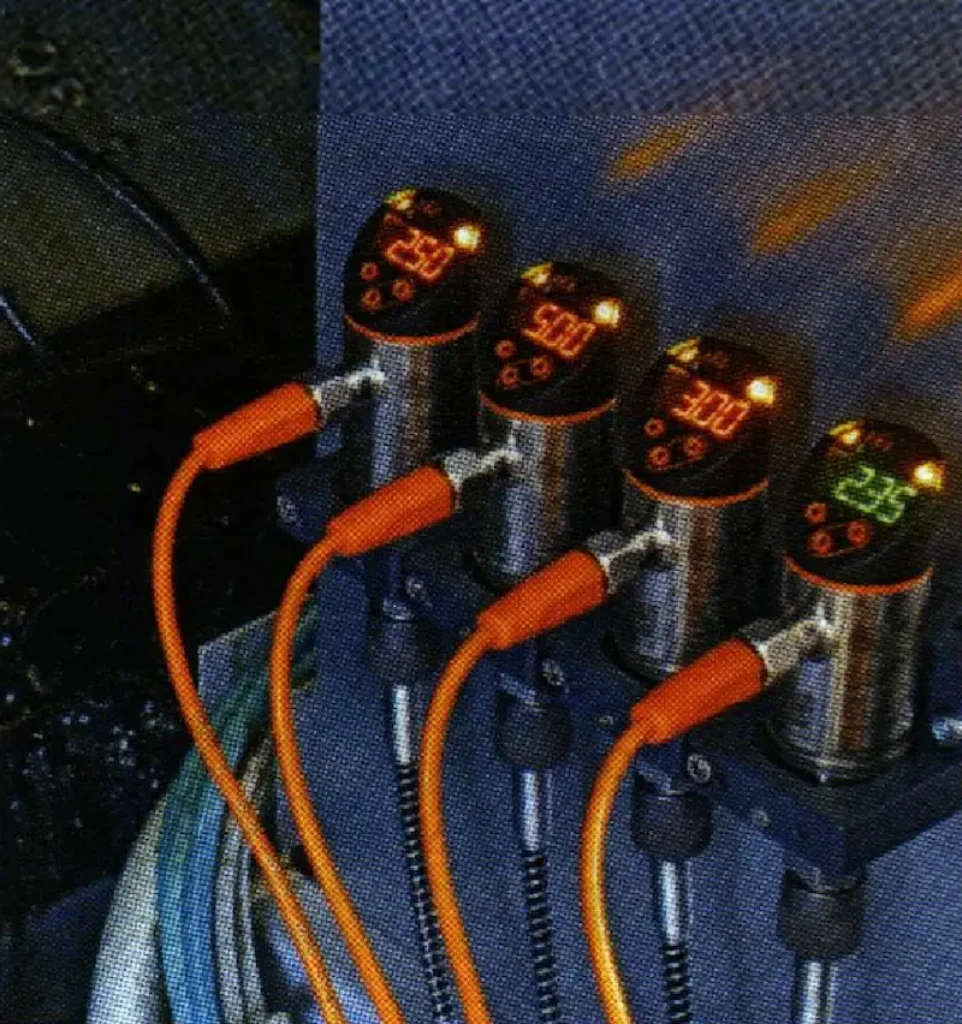

New Generation Pressure Switch

For over 20 years, ifm has provided reliable pressure monitoring products for pneumatic and hydraulic applications.

Now, ifm has launched the next-generation PN7 series of pressure sensors. This product series offers more powerful functions and can adapt more flexibly to various pressure applications.

The ifm pressure switch is a solid-state solution that can replace mechanical pressure switches. By having no moving parts that could potentially jam or break, the ifm pressure switch avoids the maintenance problems faced by mechanical switches.

Currently, every measuring range of the PN7 series possesses the optimal combination of overpressure, burst pressure, and long-term stability, supporting use in high-pressure gases (<25bar) as well as liquid applications. These switches use a stainless steel housing, can withstand extreme shock and vibration, and have high accuracy and reliability in most applications.

By adopting innovative design technologies and features to achieve easier application, ifm has once again set a new benchmark for price-performance ratio.
