IFM PQ 7000/3000 Series Pressure Sensor Switch

Sensor Switch, Pressure Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Switch and analog output for pneumatic applications｜DC Pressure range -1…10 bar
— ifm’s PQ series pressure switches are designed for pneumatic applications in robotics and material handling, and can accurately measure the typical vacuum and pressure ranges in these applications.

IFM PQ 7000/3000 Series Pressure Sensor Switch

Technical Features

Compact design, suitable for pneumatic applications.

Other features include plug-and-play replacement, real-time profile changes, and diagnostic feedback.

Easy installation via integrated mounting holes and accessories.

Flexible output options: dual PNP, dual NPN, analog / PNP.

Dual-color 4-digit alphanumeric display provides visual indication of operating status.

Products + Accessories Selection:

2 x PNP / NPN • N.O. / N.C.

Output	Measuring range	Set point range	Reset point range	Fixed analog start point	Fixed analog end point	Supported display units	Port size	Order No.
2 x PNP, N.O./N.C.	-1…1 bar	-0.98…1 bar	-0.99…0.99 bar	–	–	bar, psi, kPa, inHg	G 1/8 female thread	PQ7809
2 x PNP, N.O./N.C.	-1…10 bar	-0.9…10 bar	-0.95…9.95 bar	–	–	bar, psi, kPa, inHg	G 1/8 female thread	PQ7834
4…20 mA and 1 x PNP, N.O./N.C.	-1…1 bar	-0.98…1 bar	-0.99…0.99 bar	-1 bar	1 bar	bar, psi, kPa, inHg	G 1/8 female thread	PQ3809
4…20 mA and 1 x PNP, N.O./N.C.	-1…10 bar	-0.9…10 bar	-0.95…9.95 bar	-1 bar	10 bar	bar, psi, kPa, inHg	G 1/8 female thread	PQ3834

Required Accessories

Type	Description	Order No.

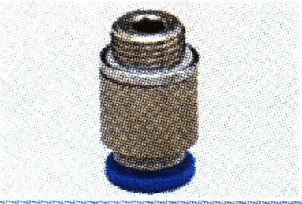

	6 mm Ø tube adapter	E30076
8 mm Ø tube adapter	E30077

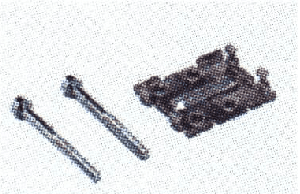

	DIN rail mounting bracket	E37340

Optional Accessories

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Operating voltage: 18…32 VDC
Maximum load current: 100 mA
Current consumption: < 50 mA
Switching point accuracy: < ± 0.5 % of full scale
Repeat accuracy: < ± 0.1 % of full scale
Medium temperature: 0…60 °C
Wetted parts: Brass, FPM, Silicone (with coating), PBT
Protection class: IP65

Benefits Introduce In Detail

Compact pressure switch for robotics and material handling applications

ifm’s PQ series pressure switches are designed for pneumatic applications in robotics and material handling, and can accurately measure the typical vacuum and pressure ranges in these applications.

The PQ series pressure switches have been expanded and now include models with analog output that support IO-Link (Order Nos. PQ3809 and PQ3834).

The PQ series is mainly based on piezoresistive measuring elements. This is a silicon measuring element that is not affected by possible liquids (such as condensed water) and deposits in the system. The silicon measuring element ensures high overload performance and an accuracy of up to ± 0.5%.

Application parameters are established using 2 pushbuttons. A dual-color 4-digit display provides system pressure visibility from a distance.

Rich mounting options

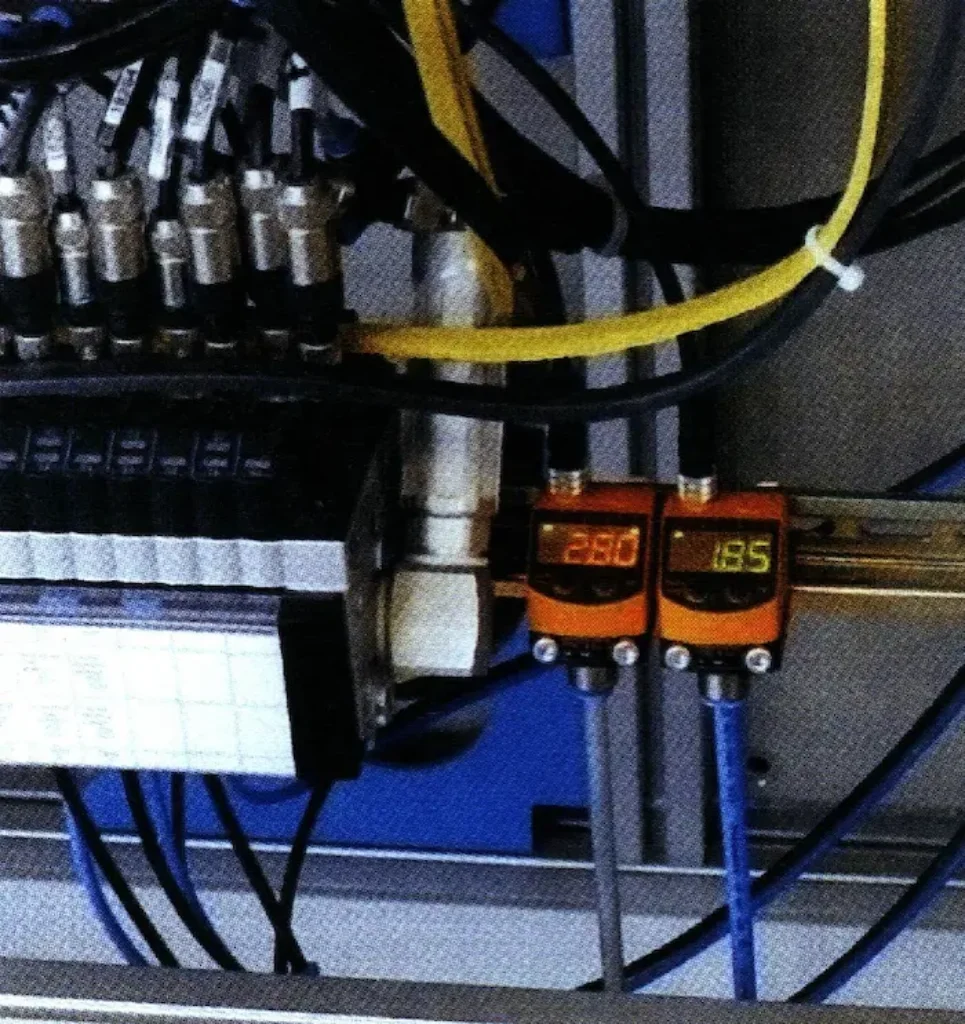

Can use the 2 M4 drill holes on the front for mounting on flat surfaces and profiles.
Can use a robust DIN rail clip for fixing on a DIN rail.
Can be fixed on pipes or ventilation duct panels.
