Analog output, for submersible liquid applications
— Submersible transmitter, suitable for tanks or cisterns up to 1 bar / 10 m, and well level detection applications.

IFM PS 3000/PS 4000 Series Pressure Transmitter

Technical Features

Pressure compensation via internal vented cable.

2-wire connection technology, provides 4…20 mA analog output.

Stainless steel housing with IP68 protection rating, durable and can be permanently submerged in water.

Models with measuring ranges of 0.25, 0.6, and 1 bar are available.

High accuracy and long-term stability.

Products + Accessories Selection:

Fixed Output	Measuring Range	Overpressure	Connection	Operating Voltage	Order No.
4…20 mA	0…2.5 m water column	2 bar	PUR cable 5 m	10…30 VDC	PS3208
4…20 mA	0…2.5 m water column	2 bar	FEP cable 5 m	10…30 VDC	PS4208
4…20 mA	0…2.5 m water column	2 bar	FEP cable 10 m	10…30 VDC	PS4408
4…20 mA	0…6 m water column	3 bar	FEP cable 5 m	10…30 VDC	PS4407
4…20 mA	0…6 m water column	4 bar	PUR cable 10 m	10…30 VDC	PS3407
4…20 mA	0…6 m water column	4 bar	PUR cable 15 m	10…30 VDC	PS3427
4…20 mA	0…6 m water column	3 bar	FEP cable 20 m	10…30 VDC	PS4506
4…20 mA	0…6 m water column	4 bar	PUR cable 30 m	10…30 VDC	PS3607
4…20 mA	0…10 m water column	5 bar	FEP cable 15 m	10…30 VDC	PS4417
4…20 mA	0…10 m water column	5 bar	PUR cable 15 m	10…30 VDC	PS3417
4…20 mA	0…10 m water column	5 bar	PUR cable 30 m	10…30 VDC	PS3617
4…20 mA	0…10 m water column	5 bar	FEP cable 30 m	10…30 VDC	PS4607

* FEP is a Teflon material cable, corrosion-resistant.

Optional Accessories

Type	Description	Order No.

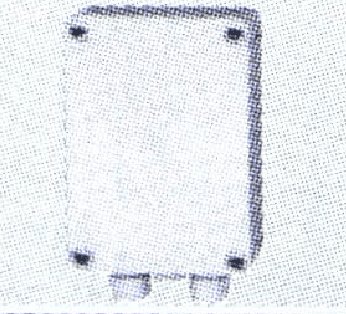

	Junction box with vent	E30401

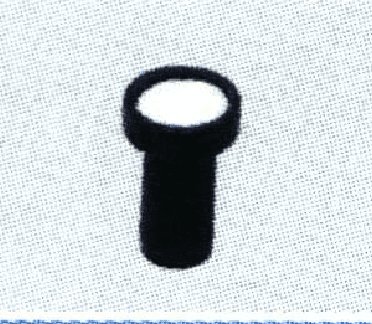

	Filter element for protecting the cable vent tube	E30400

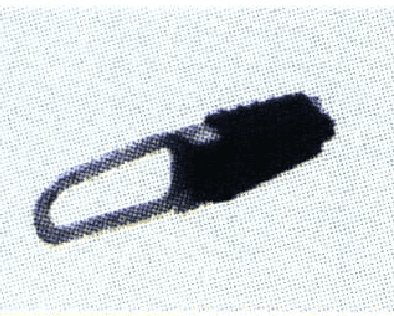

	Cable clamp	E30399

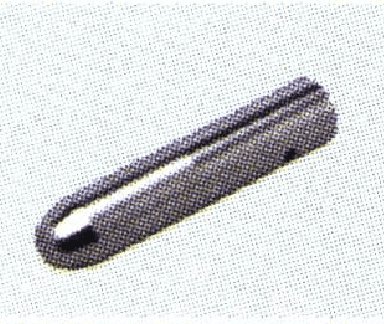

	Counterweight for stabilizing the transmitter	E30402

Specifications:

Maximum load: [ (Power supply voltage – 10) x 50] Ω; 700 Ω at 24 VDC
Medium temperature range: -10…50 °C
Accuracy: < ± 0.5% of full scale
Repeat accuracy: < ± 0.1% of full scale
Wetted parts: 316 stainless steel
Protection class: IP68

Benefits Introduce In Detail

Hydrostatic pressure transmitter for level detection applications

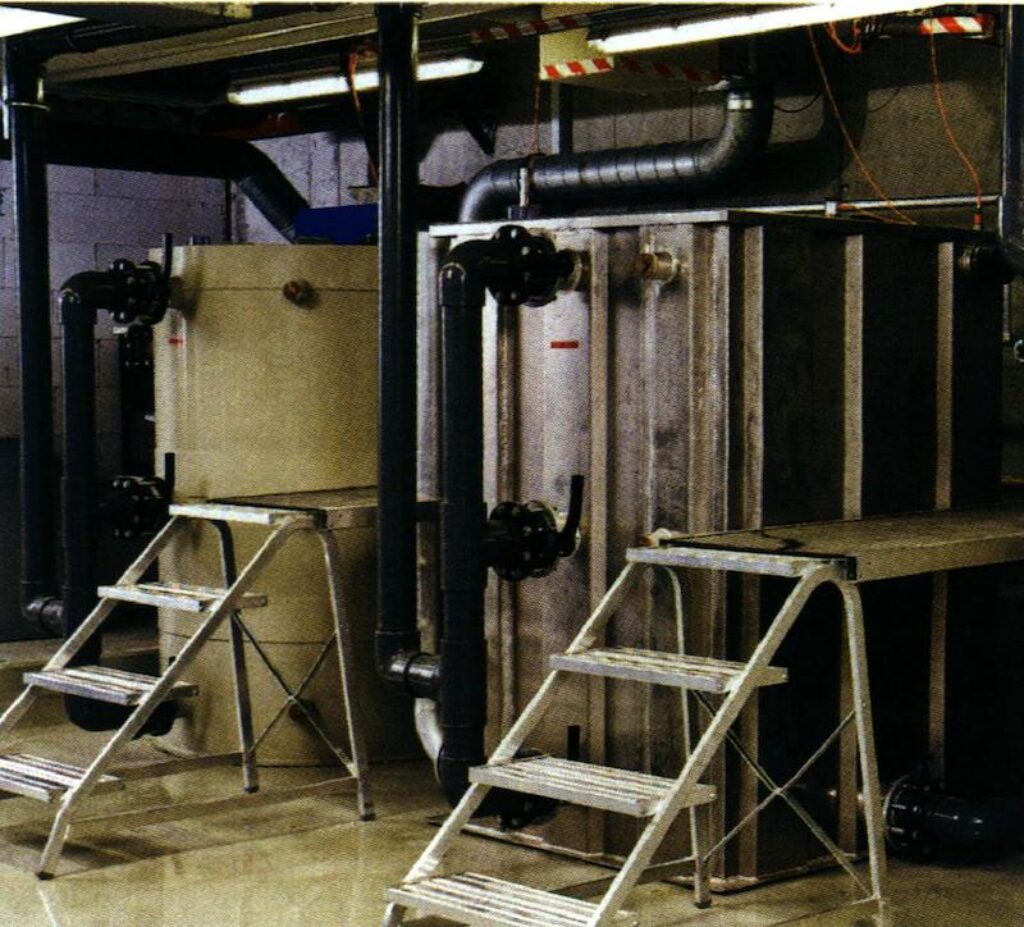

The ifm PS3 series hydrostatic pressure transmitter can indicate the liquid level pressure in tanks, containers, pits, and wells.

This 2-wire stainless steel transmitter can be directly immersed into the medium to provide a 4…20 mA analog signal. Its polyurethane waterproof vent tube cable can withstand over 220 newtons of force. The transmitter measures the liquid level through the principle of static pressure. The weight of the liquid applies pressure to the transmitter’s measuring element. As the liquid level changes, the output also changes. The transmitter’s accuracy reaches 0.5% of the full scale, and its repeatability is 0.1%, ensuring very high operational reliability.

Models with selectable measuring ranges of 0.25 bar, 0.6 bar, and 1 bar are available, as well as various cable lengths.

Leveraging analog output signals, 2-wire technology, and a wealth of accessories, it can be easily integrated into existing applications.
