IFM PT 5000 Series Pressure Transmitter

Sensor Switch, Pressure Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Analog output｜Pressure range 0…345 bar｜DC
— The all-new compact PT pressure transmitter is the ideal choice for monitoring pressure in space-constrained hydraulic and pneumatic applications, as well as for inert gases.

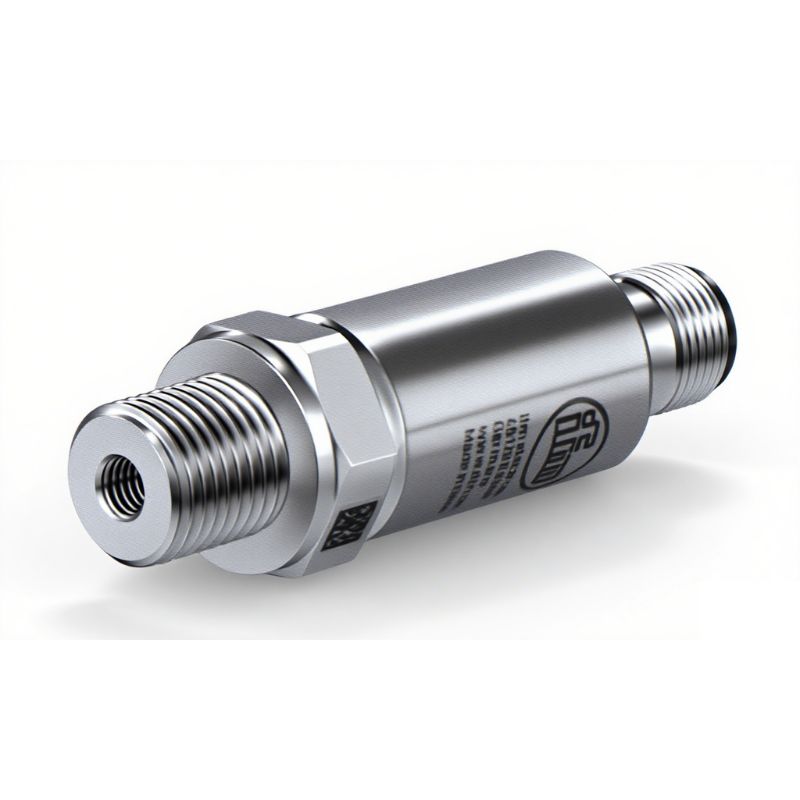

IFM PT 5000 Series Pressure Transmitter

Technical Features

4…20 mA fixed range output – plug and play.

IP69K small housing – only 19mm in diameter, easy to install in tight spaces.

Stainless steel measuring element with thin-film technology – can measure high-pressure gases and provides better chemical compatibility; using ceramic technology yields a better bursting pressure rating.

G1/4″ integrated process connection – can be installed in common applications without extra adapters.

Laser-etched label – readable even in harsh environments.

Products + Accessories Selection:

Fixed analog output	Measuring range (bar)	Overpressure (bar)	Bursting pressure (bar)	Port size	Order no.
4…20 mA	0-6	15	200	G 1/4 external thread	PT5415
4…20 mA	0-10	25	300	G 1/4 external thread	PT5404
4…20 mA	0-16	40	450	G 1/4 external thread	PT5414
4…20 mA	0-25	65	600	G 1/4 external thread	PT5403
4…20 mA	0-30	65	600	G 1/4 external thread	PT5453
4…20 mA	0-60	150	900	G 1/4 external thread	PT5423
4…20 mA	0-100	250	1000	G 1/4 external thread	PT5402
4…20 mA	0-250	625	1200	G 1/4 external thread	PT5401
4…20 mA	0-160	400	1100	G 1/4 external thread	PT5412
4…20 mA	0-400	1000	1700	G 1/4 external thread	PT5400
4…20 mA	0-600	1500	2500	G 1/4 external thread	PT5460

*For other PT pressure transmitters with 0-10V output, DEUTSCH, AMP, DIN bayonet connectors, and for mobile industry applications.Optional Accessories

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Type	Description	Order No.
	Stainless steel (1.4404 / 316L), Seal: FKM, G 1/4 external thread	E30143
	Steel (1.0345), G 1/4	E30140

Specifications:

Power supply voltage: 8.5…36 V DC
Maximum load: [ ( Power supply voltage – 8.5) ÷ 21.5 ] Ω; 720 Ω at 24 V DC
Medium temperature range: -40…90 °C
Characteristic curve accuracy: <0.8%
Repeatability: < ± 0.05 % of full scale
Wetted parts: 630 stainless steel
Protection class: IP 67 / IP 69K

Benefits Introduce In Detail

Compact integrated design, fast response

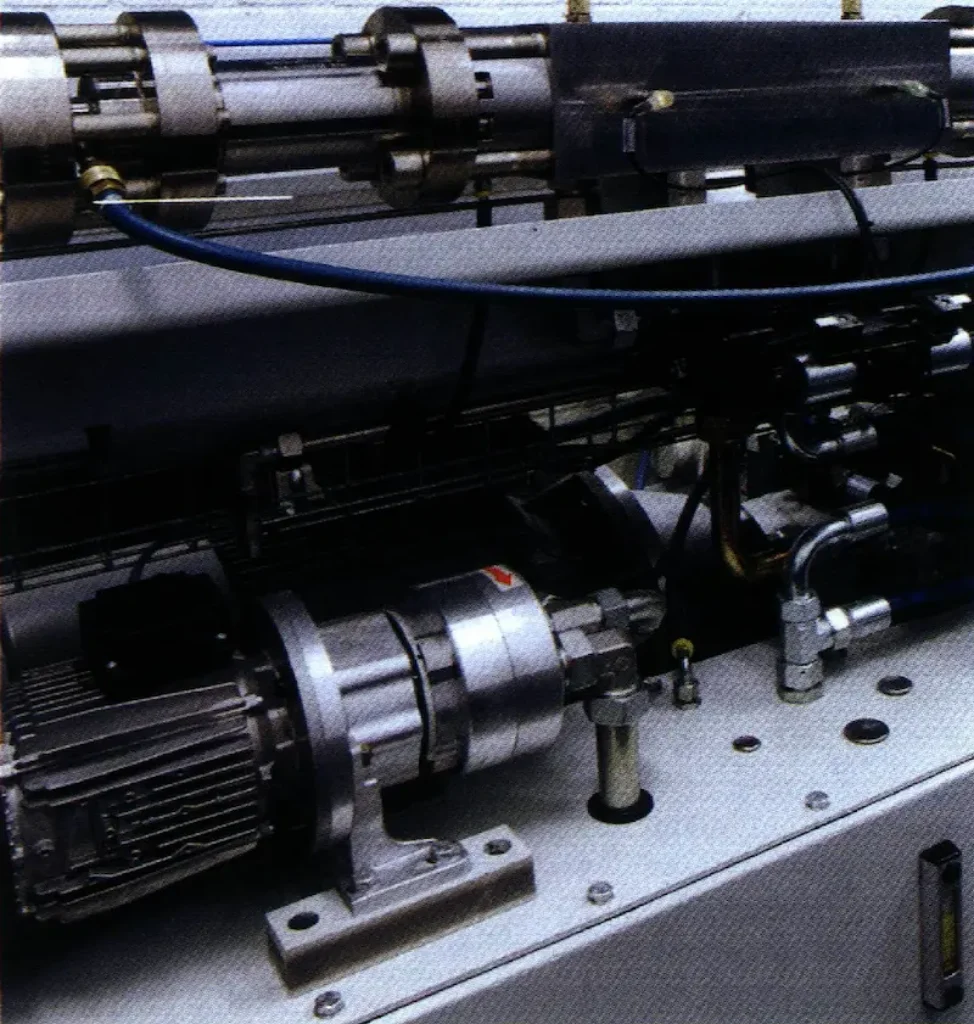

New! The all-new compact PT pressure transmitter is the ideal choice for monitoring pressure in space-constrained hydraulic and pneumatic applications, as well as for inert gases.

These pressure sensors use a thin-film measuring element that can be welded directly to the process connection. No additional seals are required. This innovative design technology ensures a compact shape and high precision.

The robust PT pressure sensors feature a stainless steel construction, specially designed to withstand extreme shock and vibration in harsh environments. The integrated, fully-welded housing prevents moisture ingress, with a protection rating up to IP 67 / IP 69K.

The transmitter provides an analog output, with a response time of 1 millisecond and a repeat accuracy of < 0.05 %.

With its robust housing, fast response, and low cost, the PT series transmitter offers an extremely high price-performance ratio.
