IFM PV 7000 Series Pressure Sensor Switch

Sensor Switch, Pressure Sensor SwitchIFM

Deal Score0

2025/7/4 Update

Dual switching output｜DC Pressure range 0…400 bar
— ifm efector’s inspection sensor, the efector dualis, can monitor a wide range of error-proofing applications, providing 100% inspection testing throughout the entire automated assembly process.

IFM PV 7000 Series Pressure Sensor Switch

Technical Features

Uses a fully welded stainless steel thin-film measuring element and housing.

Other features include plug-and-play replacement, real-time profile changes, and diagnostic feedback.

Two solutions: output a continuously changing process value via IO-Link or 2 switching outputs.

High accuracy (<± 0.5%) and repeatability (<± 0.05% full scale).

Products + Accessories Selection:

2 x PNP / NPN • N.O. / N.C.

Measuring range* (bar)	Factory default PNP N.O. set point 1 / 2 (bar)	Overpressure (bar)	Burst pressure (bar)	Component dimensions	Order No.
0…400	100 / 300	1000	1700	G 1/4 male thread	PV7000
0…250	62.5 / 187.5	625	1200	G 1/4 male thread	PV7001
0…100	25 / 75	250	1000	G 1/4 male thread	PV7002
0…60	15 / 45	150	900	G 1/4 male thread	PV7023
-1…25	6.25 / 18.75	65	600	G 1/4 male thread	PV7003
-1…10	2.5 / 7.5	25	300	G 1/4 male thread	PV7004
*When using IO-Link, the measuring range is increased by 5%.
*Also available in R1/4 male thread, NPT1/4 male thread versions.

Accessories

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Mating cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Specifications:

Supply voltage: 18-30V DC
Max. load: 100 mA
Medium temperature range: -40…90 °C
Accuracy: < ± 0.5 % full scale
Repeatability: < ± 0.05 % full scale
Wetted parts: stainless steel (1.4305/303); 1.4542 (17-4 PH / 630)
Protection class: IP 67 / IP 69K

Benefits Introduce In Detail

PV digital pressure sensor – one sensor, two solutions

The all-new PV pressure sensor features a thin-film stainless steel measuring cell with an integrated, welded process connection. This allows for an all-stainless steel construction, eliminating the need for elastomeric seals. This design also gives the sensor a compact external shape, high precision, and fast dynamic response (<3ms), with excellent vibration resistance and IP67 / IP69K protection ratings, making it suitable for harsh environments. The pressure sensor also uses laser etching for its labels to prevent them from detaching or being damaged over time.

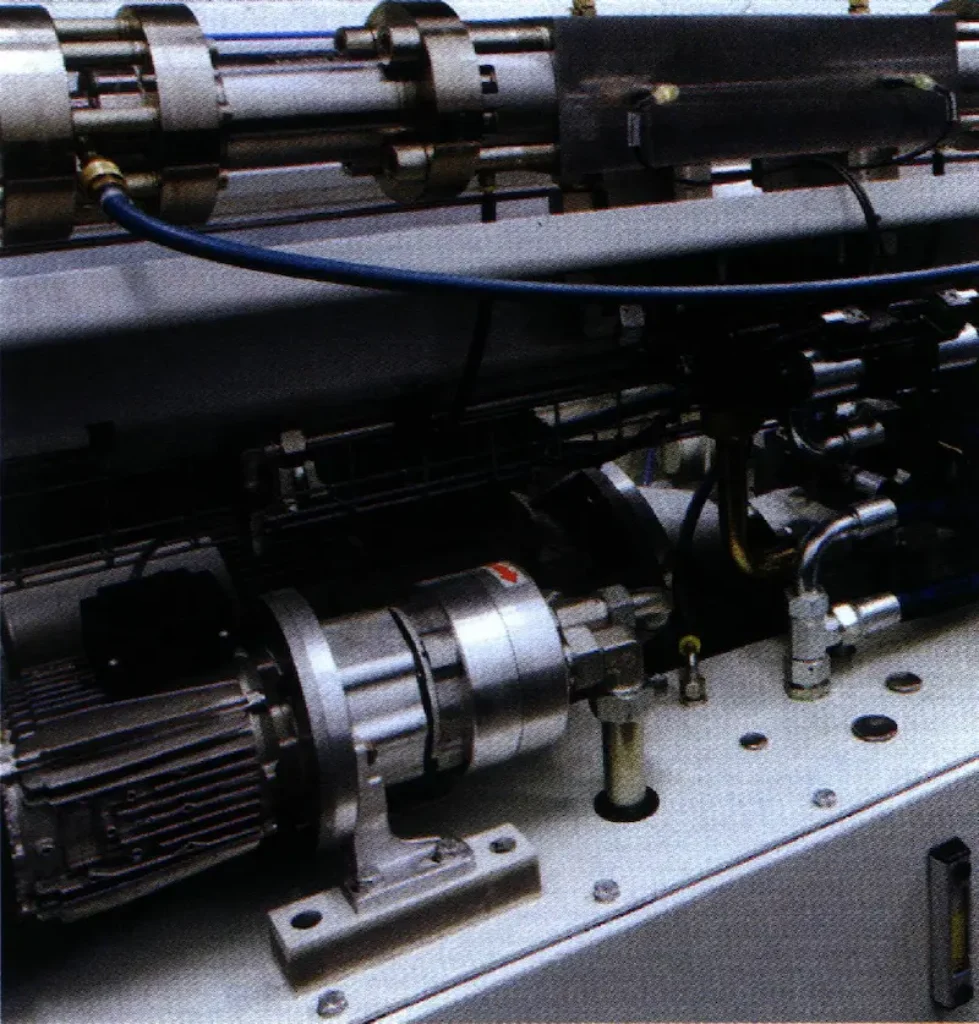

Suitable for hydraulic and inert gas applications

Due to the absence of elastomeric seals within the process connection, the PV becomes an ideal choice for hydraulic and gas applications with no restrictions on use. The all-stainless steel welded parts avoid the chemical compatibility issues found in traditional elastomeric seals and can provide high resistance to overpressure and burst pressure.

The integrated IO-Link communication can send process values via a high-precision digital signal (measurement results are in bar units, not mA). Purely digital communication avoids the effects of A/D conversion and electronic noise. The IO-Link interface can also be used to configure sensor parameters and send diagnostic information, such as peak pressure counts.
