Encoder with IO-Link
— Incremental encoders provide accurate position feedback for rotating machine shafts. ifm now offers a wide range of encoders. These encoders have the ideal functions required for applications in material handling, packaging, automotive, wood, and printing/paper industries.

IFM RA/RO/RB/RU/RV 3000 Series Encoder For I-O Link

Technical Features

Programmable resolution from 1 to 10,000, with optional HTL / TTL output.

Other features include plug-and-play replacement, real-time profile changes, and diagnostic feedback.

Digital transmission of shaft position value (single-turn).

Robust magnetic sensing principle.

Solid or hollow shaft designs with different diameters and flange options.

Industry-standard M12 connector or 2-meter pre-made cable.

Products + Accessories Selection:

	Housing Diameter (mm)	Shaft Diameter	Flange	Resolution (pulses/rev)	Connection	Core Wire Stator	Order No.
	Housing Diameter (mm)	Shaft Diameter	Flange	Resolution (pulses/rev)	Connection	Core Wire Stator	Order No.	Hollow shaft with integrated stator coupling	36.5	6 mm	Direct	Max 10,000 (adj.)	M12 Micro DC	1	RA3100
36.5	6 mm	Direct	Max 10,000 (adj.)	M12 Micro DC	2	RA3101
36.5	6 mm	Direct	Max 10,000 (adj.)	2 m cable	1	RA3500
36.5	6 mm	Direct	Max 10,000 (adj.)	2 m cable	2	RA3501
58	12 mm	Direct	Max 10,000 (adj.)	M12 Micro DC	1	RO3100
58	3/8 in.	Direct	Max 10,000 (adj.)	M12 Micro DC	1	RO3103
58	5/8 in.	Direct	Max 10,000 (adj.)	M12 Micro DC	1	RO3104
58	12 mm	Direct	Max 10,000 (adj.)	M12 Micro DC	2	RO3101
58	12 mm	Direct	Max 10,000 (adj.)	2 m cable	1	RO3500
58	12 mm	Direct	Max 10,000 (adj.)	2 m cable	2	RO3501
Solid shaft	36.5	6 mm	Universal	Max 10,000 (adj.)	M12 Micro DC	N/A	RB3100
	36.5	6 mm	Universal	Max 10,000 (adj.)	2 m cable	N/A	RB3500
	58	6 mm	Servo	Max 10,000 (adj.)	M12 Micro DC	N/A	RU3100
	58	6 mm	Servo	Max 10,000 (adj.)	2 m cable	N/A	RU3500
	58	10 mm	Clamp	Max 10,000 (adj.)	M12 Micro DC	N/A	RV3100
	58	10 mm	Clamp	Max 10,000 (adj.)	2 m cable	N/A	RV3500

Optional Accessories

Type	Description	Order No.
	Disc spring coupling, Ø 6 mm / 10 mm, die-cast zinc; PA	E60117
Disc spring coupling, Ø 10 mm / 10 mm, die-cast zinc; PA	E60118
	Fastening clamp for synchro flange, steel	E60041
	Flexible coupling with clamp connection, Ø 6 mm / 10 mm, aluminum	E60066
Flexible coupling with clamp connection, Ø 10 mm / 10 mm, aluminum	E60067
Flexible coupling with set screw, Ø 10 mm / 10 mm, aluminum	E60022
Flexible coupling with set screw, Ø 6 mm / 10 mm, aluminum	E60028
	Aluminum measuring wheel, 500 mm circumference, 10 mm bore, smooth plastic tread	E60110
Aluminum measuring wheel, 500 mm circumference, 10 mm bore, raised plastic tread	E60076
Aluminum measuring wheel, 200 mm circumference, 10 mm bore, grooved plastic tread	E60138
Aluminum measuring wheel, 200 mm circumference, 10 mm bore, knurled aluminum tread	E60095
Aluminum measuring wheel, 200 mm circumference, 6 mm bore, grooved plastic tread	E60137
Aluminum measuring wheel, 200 mm circumference, 6 mm bore, knurled aluminum tread	E60006
	Right-angle bracket for RUP, aluminum, black anodized	E60033
Right-angle bracket for RVP, aluminum, black anodized	E60035

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master, for parameter setting and device analysis	E30390
	Memory plug for storing sensor parameters, for easy upload without a PC	E30398
	Square flange for RB3xxx encoder	UD0003
Square flange for RU3xxx encoder	UD0004
Square flange for RV3xxx encoder	UD0005

Mating Cables, Shielded type

Type	Description	Order No.
	M12 Micro DC, 2 m, PUR cable	EVC544
M12 Micro DC, 5 m, PUR cable	EVC545
M12 Micro DC, 10 m, PUR cable	EVC546

Specifications:

Operating voltage: 4.75…30 V DC
Current consumption: < 150 mA
Switching frequency: 1000 kHz
Reverse polarity protection: Yes
Short-circuit protection: Yes
Protection class:
- Housing: IP 65, IP 66, IP 67;
- Shaft: IP 64
Connection: M12 connector, 5-pin (rotatable)

What’s More:

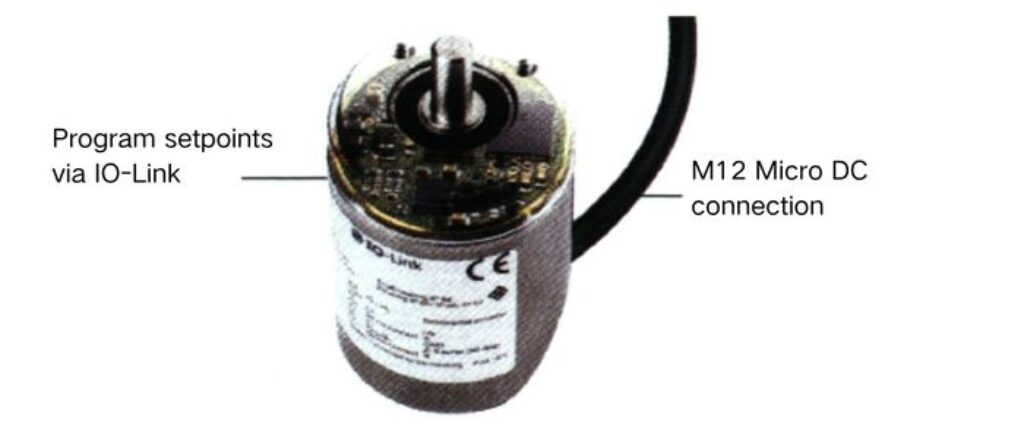

image 2025 07 22T143221.734 — ifm’s programmable incremental encoder supports selecting the
resolution and output type via IO-Link.

Benefits Introduce In Detail

Programmable incremental encoder with IO-Link

Programmable encoder for industrial applications

Incremental encoders provide accurate position feedback for rotating machine shafts. ifm now offers a wide range of encoders. These encoders have the ideal functions required for applications in material handling, packaging, automotive, wood, and printing/paper industries.

Easy setup via IO-Link

Parameters can be set via ifm’s LineRecorder Device software or IO-Link. The resolution is programmable from 1 to 10,000, with optional HTL or TTL output. No need to stock multiple encoders!

Reliable performance and rich options

ifm’s incremental encoders use magnetic technology, providing the accuracy of traditional optical encoders and the robustness of magnetic encoders. They are resistant to shock and vibration, have a high switching frequency, and are available with a 6 mm or 10 mm solid shaft or a 6 or 12 mm diameter hollow shaft. These encoders can use a rotatable, industry-standard M12 connector or a 2-meter cable.
