IFM RFID MN700 Series Safety Sensor

Deal Score+1

2025/7/4 Update

Prevent tampering with machine safety guards｜DC
— Safety sensor with RFID operating principle, prevents tampering with machine safety guards

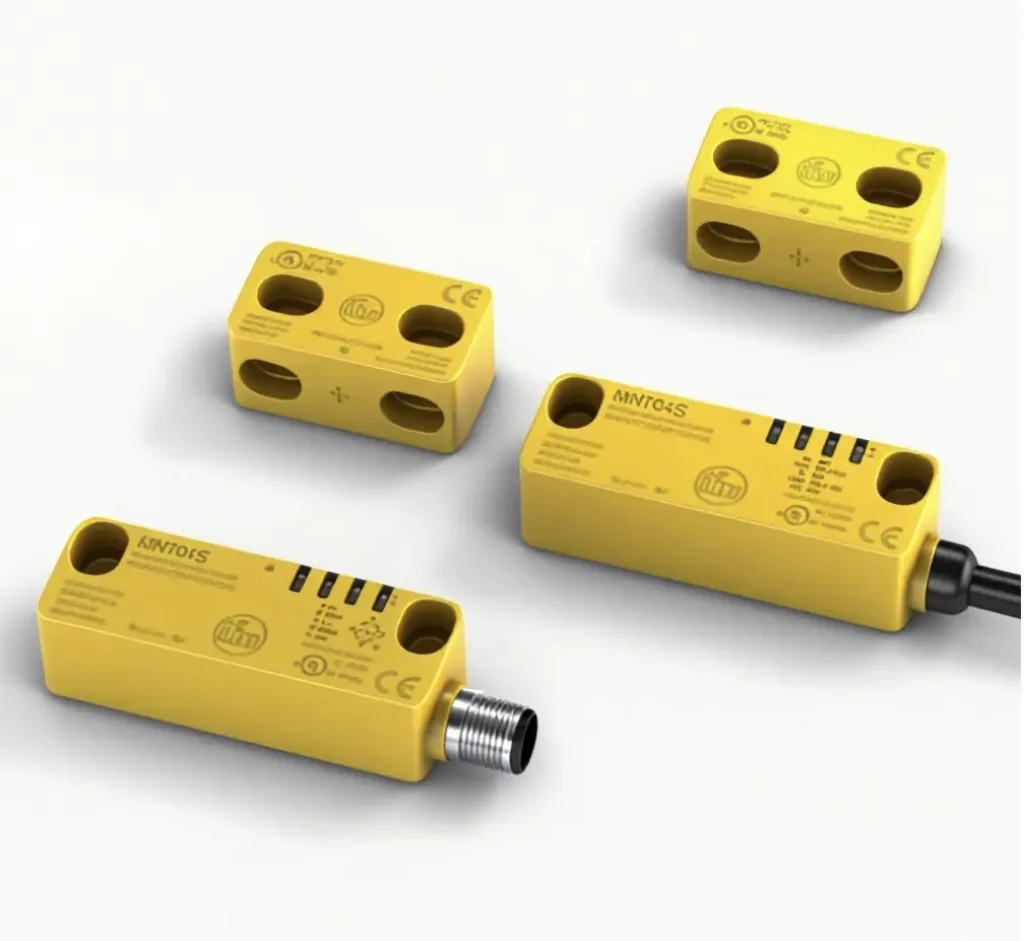

IFM RFID MN700 Series Safety Sensor

Technical Features

Safety sensor with RFID technology prevents tampering with machine safety guards.

Uniquely coded actuator cannot be bypassed during use.

Up to 32 RFID safety sensors can be connected in series.

Safety level up to SIL 3 (in accordance with IEC 62061 standard), and Category 4 PL e (in accordance with ISO 13849-1 standard).

Products + Accessories Selection:

Type	Dimensions [mm]	Detection range [mm]	Connection	Coding	Supports series connection	Order No.
RFID sensor

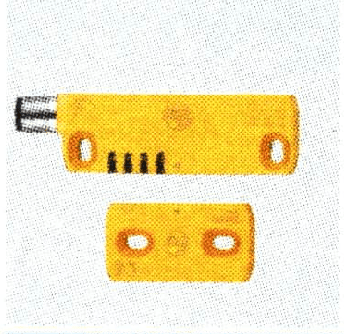

	72 x 25 x 18	12	M12 connector, 8-pin	Unique coding	✓	MN7015

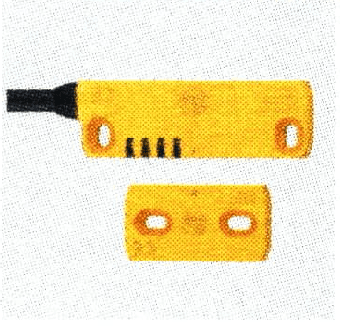

	72 x 25 x 18	12	2 m PVC cable, 8-pin	Unique coding	✓	MN7045

Safety relays

Type	Safety output	Non-safety output	Order No.
	2 x relay (N.O.)	1 x PNP	G15015
2 x PNP	1 x PNP	G15035
	3 x relay (N.O.) 2 x relay (N.O.) with time delay	1 x relay (N.O.) 1 x relay (N.C.) 1 x PNP, with time delay	G15025

Optional accessories

Type	Description	Order No.
	One-way screw M4 x 20, 10 per set	E12584

Mating cables

Type	Description	Order No.
	M12 Micro DC (8-pin) 2 m, PUR	E11950
M12 Micro DC (8-pin) 5 m, PUR	E11807
M12 Micro DC (8-pin) 10 m, PUR	E11311

Specifications:

Operating voltage: 24 (± 10 %) V DC
Detection range: 12 mm
Safe switching distance: 16 mm
Safety output: 2 x OSSD, 1 x PNP
Operating temperature: -25…80 °C
Output characteristics: Interface type C, class 2
Safety category: Coding level (according to EN 14119 standard) – MN701, MN704S are high

Benefits Introduce In Detail

Safety sensor with RFID operating principle, prevents tampering with machine safety guards

New Product! Standard magnetic safety sensors are typically used to ensure machines are in a safe condition, preventing personnel from being injured on the factory floor. However, the possibility still exists for operators to bypass magnetically coded sensors and enter an unsafe environment.

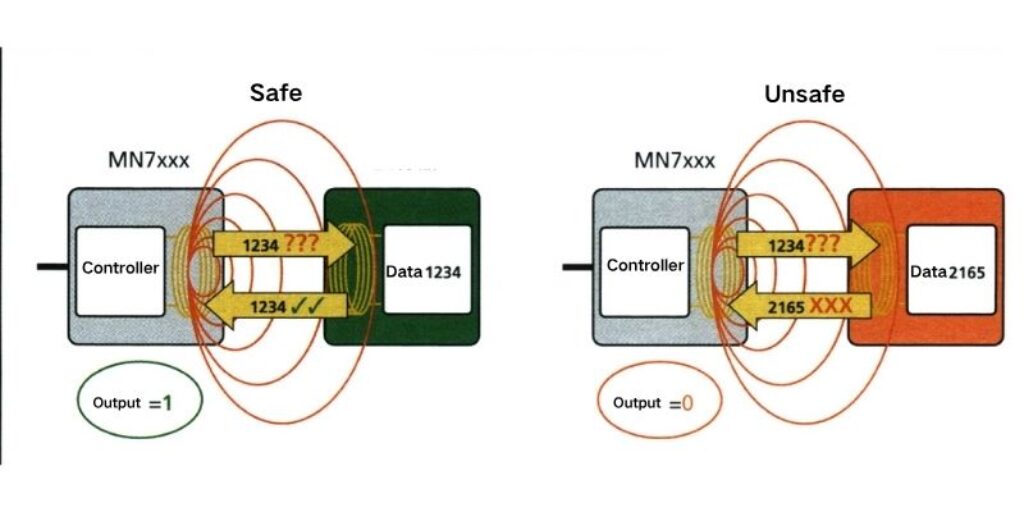

ifm’s MN7 series 2-piece safety sensor uses a solid-state RFID sensing principle. This safety RFID sensor includes an internal reader, and the actuator has a non-changeable, pre-configured embedded code. Because the safety RFID sensor and the actuator are uniquely paired, it is impossible to bypass the safety guard by tampering with its actuator or using a magnet.

A single safety relay can connect up to 32 RFID safety sensors in series. These safety sensors provide 2 OSSD outputs, and also provide one PNP output to indicate which sensor in the series is in an unsafe state.

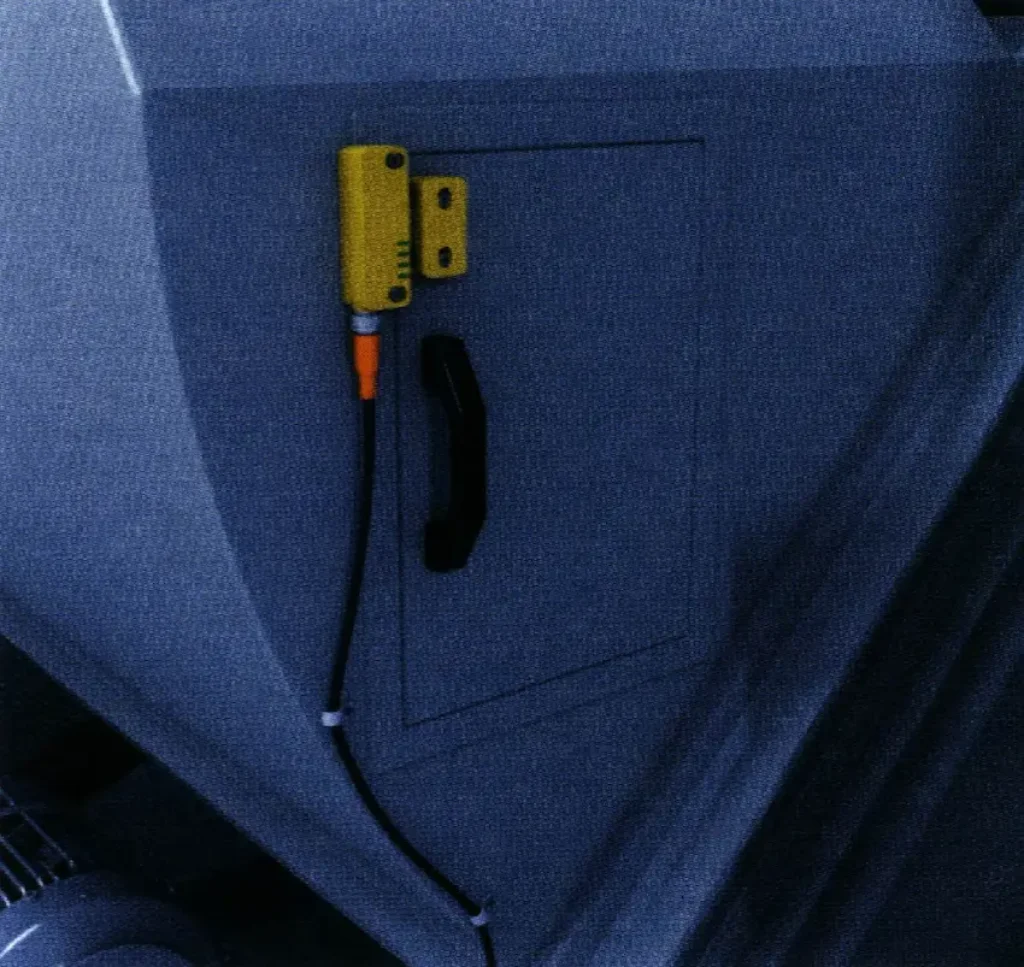

The uniquely coded safety RFID sensor achieves a Safety Integrity Level and Performance Level of SIL 3 and PL e respectively, and can provide the highest level of anti-tampering protection for machine safety guards on doors, covers, and safety gates.
