IFM ROP/RVP/RUP 500 Series Encoder For I-O Link

Deal Score0

2025/7/4 Update

Encoder with display and IO-Link
— Incremental encoders provide accurate position feedback for rotating machine shafts. ifm offers a wide range of intelligent encoders that can be used as encoders, counters, or speed/direction monitors.

IFM ROP/RVP/RUP 500 Series Encoder For I-O Link

Technical Features

Programmable resolution from 1 to 10,000, with optional HTL / TTL output.

Can be used as an encoder, counter, or speed/direction monitor.

Dual-color digital display for easy viewing of monitoring data.

Solid or hollow shaft designs with different diameters and flange options.

Industry-standard M12 connector.

Other features include plug-and-play, simple replacement, real-time profile changes, and diagnostic feedback.

Products + Accessories Selection:

	Housing diameter (mm)	Shaft diameter	Flange	Resolution (pulses/rev)	Connection	Number of stators	Order No.
Hollow shaft with integrated stator coupling
	58	12 mm	Direct	Max 10,000 (adjustable)	M12 Micro DC	1	ROP520
	58	12 mm	Direct	Max 10,000 (adjustable)	M12 Micro DC	2	ROP521
New!	58	3/8 in.	Direct	Max 10,000 (adjustable)	M12 Micro DC	2	ROP523
New!	58	5/8 in.	Direct	Max 10,000 (adjustable)	M12 Micro DC	2	ROP524
Solid shaft
	58	6 mm	Servo	Max 10,000 (adjustable)	M12 Micro DC	N/A	RUP500
	58	10 mm	Clamp	Max 10,000 (adjustable)	M12 Micro DC	N/A	RVP510

Optional Accessories

Type	Description	Order No.
	Disc spring coupling, Ø 6 mm / 10 mm, die-cast zinc; PA	E60117
Disc spring coupling, Ø 10 mm / 10 mm, die-cast zinc; PA	E60118
	Fastening clamp for synchro flange, steel	E60041
	Flexible coupling with clamp connection, Ø 6 mm / 10 mm, aluminum	E60066
Flexible coupling with clamp connection, Ø 10 mm / 10 mm, aluminum	E60067
Flexible coupling with set screw, Ø 10 mm / 10 mm, aluminum	E60022
Flexible coupling with set screw, Ø 6 mm / 10 mm, aluminum	E60028
	Aluminum measuring wheel, 500 mm circumference, 10 mm bore, smooth plastic tread	E60110
Aluminum measuring wheel, 500 mm circumference, 10 mm bore, raised plastic tread	E60076
Aluminum measuring wheel, 200 mm circumference, 10 mm bore, grooved plastic tread	E60138
Aluminum measuring wheel, 200 mm circumference, 10 mm bore, knurled aluminum tread	E60095
Aluminum measuring wheel, 200 mm circumference, 6 mm bore, grooved plastic tread	E60137
Aluminum measuring wheel, 200 mm circumference, 6 mm bore, knurled aluminum tread	E60006
	Right-angle bracket for RUP, aluminum, black anodized	E60033
Right-angle bracket for RVP, aluminum, black anodized	E60035

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master, for parameter setting and device analysis	E30390
	Adapter cable for connecting USB IO-Link master E30390 and encoder	E12432
	Memory plug for storing sensor parameters, convenient for easy upload without a computer	E30398

Mating Cables, Shielded type

Type	Description	Order No.
	M12 Micro DC, 2 m, PUR cable	E12402
M12 Micro DC, 5 m, PUR cable	E12403
M12 Micro DC, 10 m, PUR cable	E12404

Specifications:

Operating voltage: 4.75…30 V DC
Current consumption: < 350 mA
Switching frequency: 1000 kHz
Reverse polarity protection: Yes
Short-circuit protection: Yes
Protection class: Housing: IP 65, IP 67; Shaft: IP 64
Connection: M12 connector, 8-pin (rotatable)

What’s More:

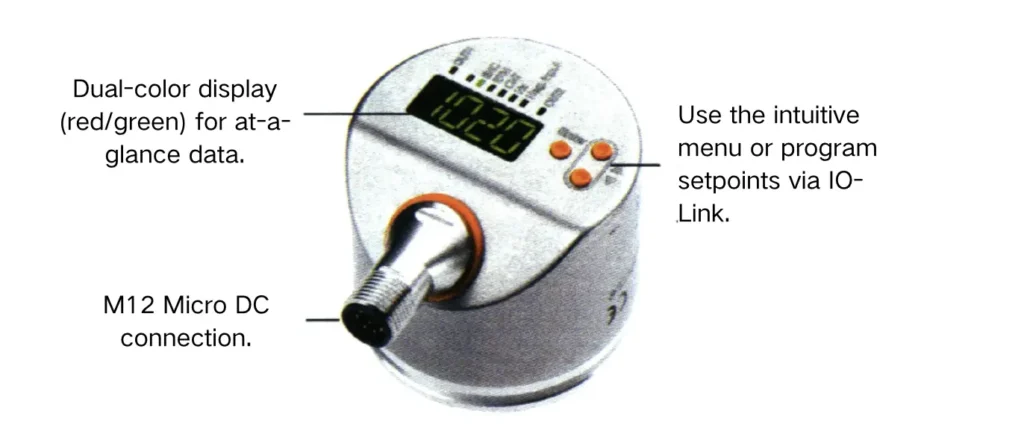

ifm’s smart encoder is equipped with a dual-color (red/green) digital display, which indicates if the process value is within the acceptable range or has exceeded the limit value.

Benefits Introduce In Detail

Intelligent incremental encoder with digital display and IO-Link

Incremental encoders provide accurate position feedback for rotating machine shafts. ifm offers a wide range of intelligent encoders that can be used as encoders, counters, or speed/direction monitors. The encoder’s evaluation pulse can reduce the load on the controller. These encoders have the ideal functions required for applications in material handling, packaging, automotive, wood, and printing/paper industries.

Easy setup via buttons or IO-Link

Using a simple button menu, the resolution can be programmed from 1 to 10,000, with optional HTL or TTL output. Parameters can also be set via ifm’s LineRecorder Device software or IO-Link. No need to stock multiple encoders!

Dual-color digital display for convenient monitoring and troubleshooting

These intelligent encoders are equipped with a dual-color (red/green) integrated digital display, which can indicate whether the process value is within the accepted range or has exceeded the limit. The display value can also be easily set to rotate 180°, increasing installation flexibility.

Reliable performance and rich options

ifm’s incremental encoders use magnetic technology, providing the accuracy of traditional optical encoders and the robustness of magnetic encoders. They are resistant to shock and vibration, have a high switching frequency, and are available with a 6 mm or 10 mm solid shaft or a 12 mm diameter hollow shaft. These encoders use a rotatable, industry-standard M12 connector, which can be placed radially or axially.
