IFM SA Series Flow Sensor

Deal Score0

2025/7/4 Update

Calorimetric Flow Sensor｜DC | Switching output, with bar graph display
— New! The all-new SA series flow sensor is specially designed for detecting and measuring the flow and temperature of oil, water, ethylene glycol, and air in large pipes with diameters up to DN400.

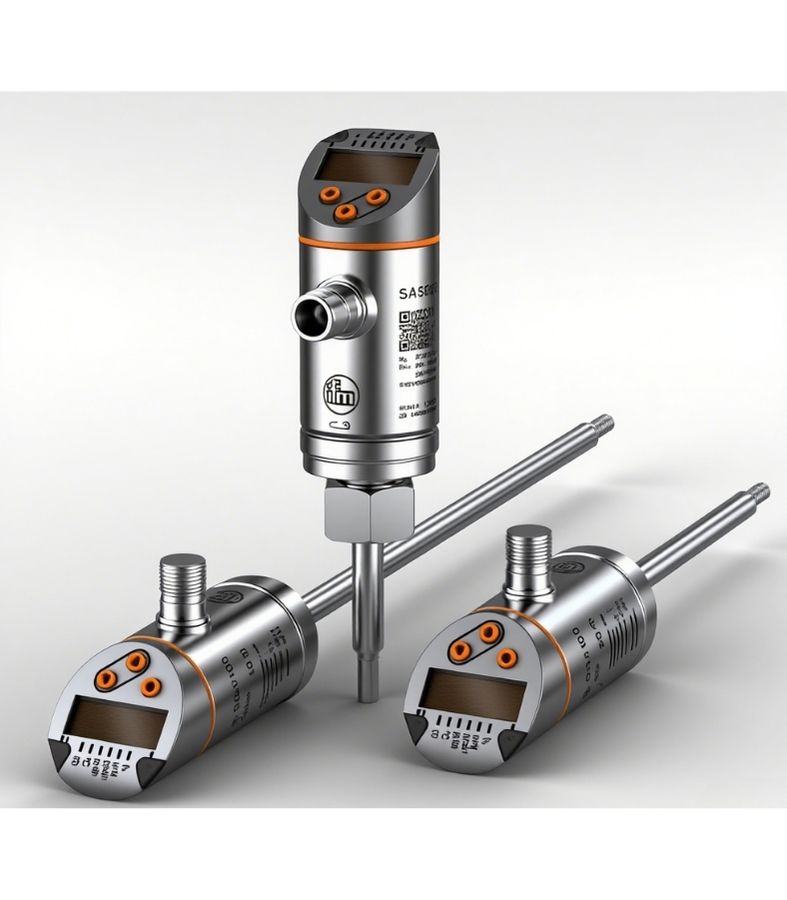

IFM SA Series Flow Sensor

Technical Features

Specifically optimized for water, oil, glycols, and air

Digital transmission of 2 process values: flow and temperature

Fast response and integrated temperature measurement

Red/green digital display for process values and easy status viewing

Internal pipe diameter selectable from DN15 to DN400, with optional switch, frequency, and analog outputs

Other features include plug-and-play, real-time configuration file changes, and diagnostic feedback

Products + Accessories Selection:

Process Connection	Probe Length (mm)	Display Unit	Measuring Range (Water)	Measuring Range (Air)	Output Switch/Frequency and 4…20 mA Analog Order No.	Output Dual 4…20 mA Analog Order No.
M18 x 1.5 female thread	45	%, fps, g/m, cfm, °F	0.15…9.8 ft/s	6.5…328 ft/s	/	SA5014
Diameter Ø 8 mm	100				/	SA4114
Diameter Ø 8 mm	200				/	SA4314
Threaded connection G 1/2	19	%, m/s, l/min, m³/h, °C	0.04…3 m/s	2…100m/s	SA2000	SA2004
M18 x 1.5 female thread	45				SA5000	SA5004
Diameter Ø 8 mm	100				SA4100	SA4104
Diameter Ø 8 mm	200				SA4300	SA4304

Note: EPDM corrosion-resistant seal version and NPT thread version are also available.

Required accessories (for SA4xxx)

Type	Description	Order No.

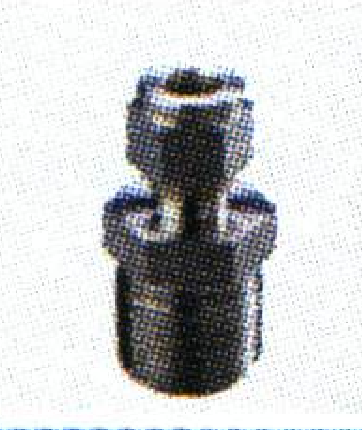

	Compression fitting G 1/2	E40258

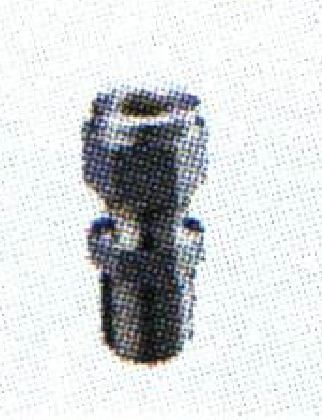

	Compression fitting G 1/4	E40259

Required accessories (for SA5xxx)

Type	Description	Order No.

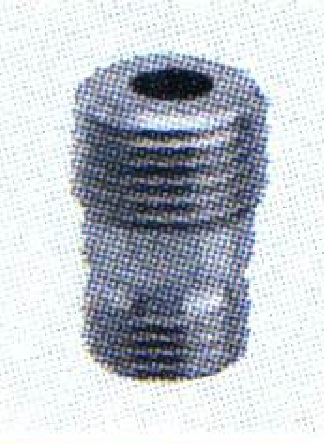

	G 1/4 adapter	E40099
	G 1/2 adapter	E40096

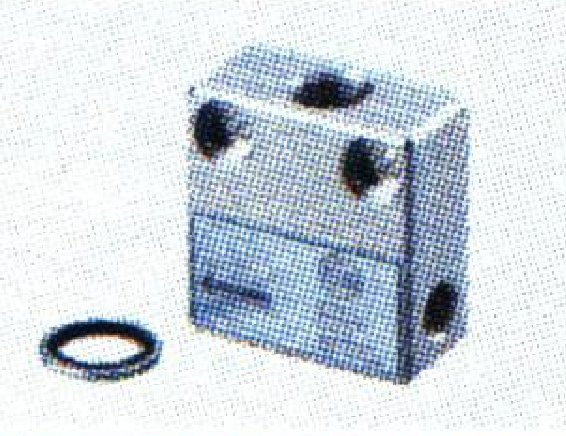

	Adapter for small flow rates, 316 stainless steel, M12	E40434

Connecting Cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

Optional Accessories

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Specifications:

Operating voltage: 18…30 VDC
Current consumption: < 100 mA
Rated current: 250 mA
Flow measurement accuracy: 7% of measured value + 2% of full scale (for water)
Temperature measurement accuracy: 1 °C
Protection class: IP65 / IP67
Housing material: 316L stainless steel, PBT
Response time: 0.5 s; (T09; water: 0.8 s; glycol: 7 s; air: 1.8 s; oil: each T09), for SA5000

What’s More:

Component Guide

Select the control monitor based on the application. Then, determine the electrical connection, flow probe, and process connection.

Benefits Introduce In Detail

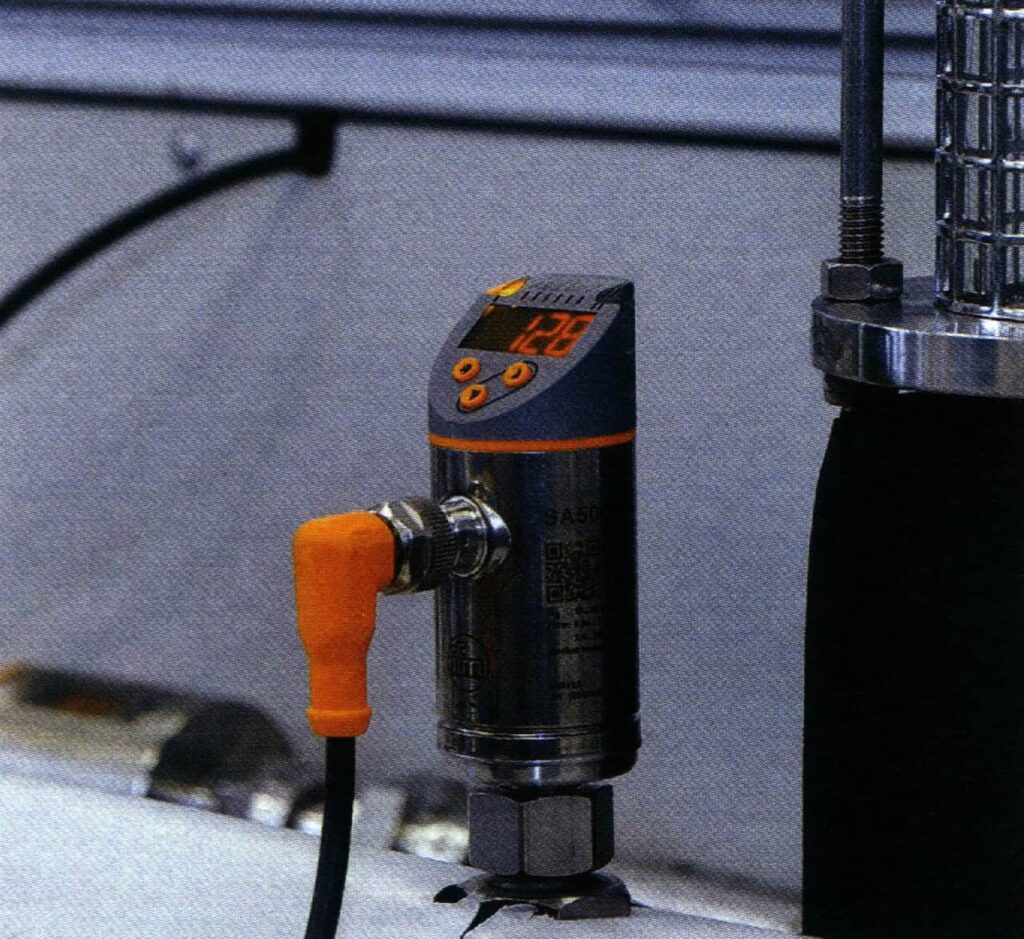

Calorimetric flow sensor with digital display, suitable for liquids and gases

New! The all-new SA series flow sensor is specially designed for detecting and measuring the flow and temperature of oil, water, ethylene glycol, and air in large pipes with diameters up to DN400.

These volumetric flow sensors use the calorimetric principle. The sensor tip includes 2 RTD elements and a heating source. When power is applied, the heating source at the sensor tip heats up. The RTD then transfers the heat from the sensor tip to the physical properties of the flowing substance to determine the flow rate. This temperature principle enables reliable detection of the flow of almost any liquid or gas.

Quick setup

Use the simple button menu to program the sensor to meet the setpoint requirements of the application. Switch, frequency, or analog outputs are available. It is designed with an integrated digital display that can set the value to green or red to indicate whether the process value is within range or has exceeded the limit. Parameters can also be set via ifm’s LineRecorder software or IO-Link.
