IFM SBG200/SBY200 Series Flow Sensor

Deal Score0

2025/7/4 Update

Mechatronic flow sensor｜DC｜Analog and switch output or dual switch output, with display
— The ifm SB series mechatronic flow sensor monitors water-based and oil-based media, achieving reliable flow control in various flow applications.

IFM SBG200/SBY200 Series Flow Sensor

Technical Features

Monitors the flow and temperature of water-based or oil-based media.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Digital transmission of 2 process values: flow and temperature.

Response time of only 10 ms: very suitable for continuous cycle applications.

Two-color digital display, status indication is clear at a glance.

Ideal choice for applications with rapid changes in media temperature, such as lubrication systems.

Products + Accessories Selection:

Measuring range (flow)	Measuring range (temperature)	Output 1	Output 2	Process connection	Order no.
0.3…15 l/min	-10…100 °C	PNP/NPN switch or frequency (flow or temperature)	PNP/NPN switch or 4…20 mA analog (flow or temperature)	G 1/2	SBG232 ⓒ
0.5…25 l/min	-10…100 °C			G 1/2	SBG233 ⓒ
1.0…50 l/min	-10…100 °C			G 1/2	SBG234 ⓒ
2.0…100 l/min	-10…100 °C			G 3/4	SBG246 ⓒ
4.0…200 l/min	-10…100 °C			G 1-1/4	SBG257 ⓒ
0.3…15 l/min	-10…100 °C	PNP/NPN switch or frequency (flow or temperature)	PNP/NPN switch or 4…20 mA analog (flow or temperature)	Rp 3/4 female thread	SBY232 ⓒ
0.5…25 l/min	-10…100 °C			Rp 3/4 female thread	SBY233 ⓒ
1.0…50 l/min	-10…100 °C			Rp 3/4 female thread	SBY234 ⓒ
2.0…100 l/min	-10…100 °C			R 1 female thread	SBY246 ⓒ
4.0…200 l/min	-10…100 °C			R 1-1/2 female thread	SBY257 ⓒ

*To improve the measurement accuracy for various lubricating and hydraulic oils, product models with different oil viscosity grades can be customized for customers.

Connecting Cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Optional Accessories

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Specifications:

Operating voltage: 18…30 VDC
Current consumption: < 50 mA
Flow measurement accuracy: ± (4% of reading + 1% of full scale)
Temperature measurement accuracy: 3 °C
Protection class: IP65 / IP67
Wetted parts: 316L stainless steel, brass, nickel-plated brass, PPS, FKM

Benefits Introduce In Detail

Ifm Mechatronic Flow Sensor

The ifm SB series mechatronic flow sensor monitors water-based and oil-based media, achieving reliable flow control in various flow applications.

The sensing principle of this mechatronic flow sensor ensures an extremely short response time, is completely unaffected by air bubbles, can be installed in almost any position, and can be easily set up via pushbuttons or IO-Link.

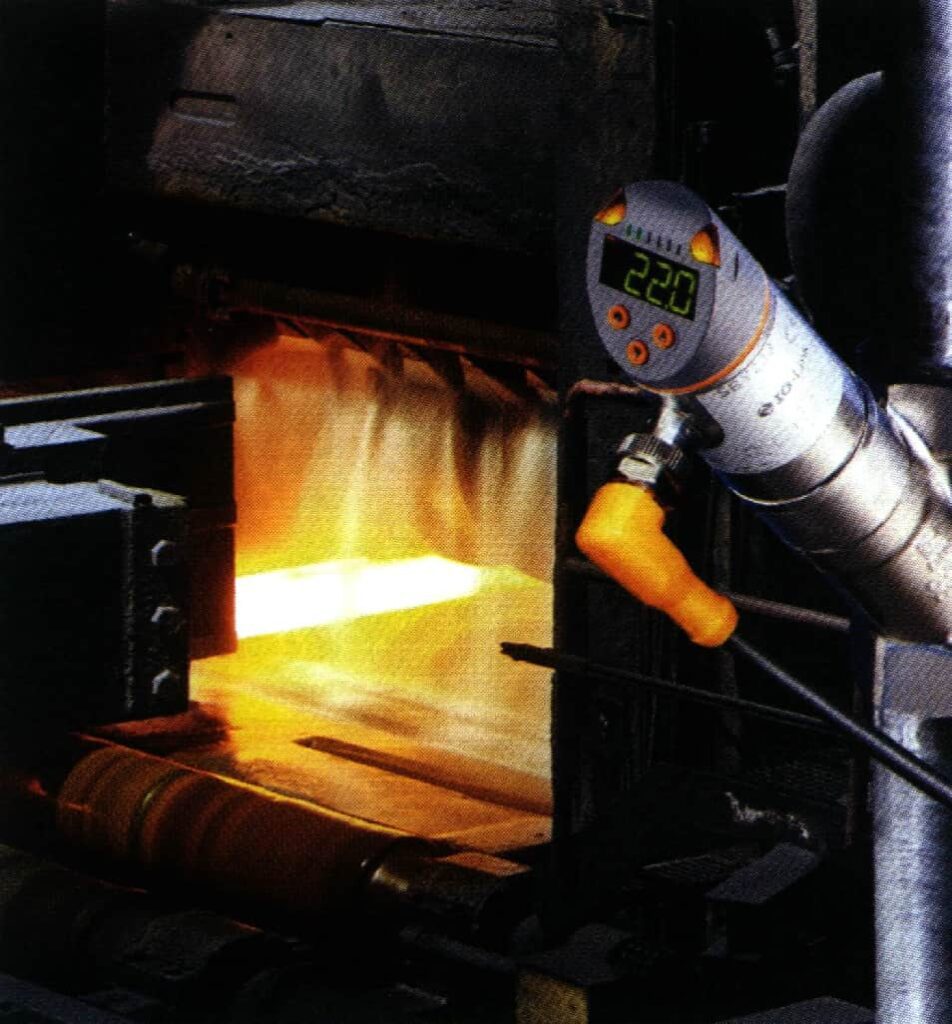

The SB series mechatronic flow sensor is the ideal choice for applications involving rapid temperature changes or requiring a fast response, including:

Coolant flow monitoring for spindle bores in machine tool applications
Flow detection of cooling water for various furnaces
Circulating coolant flow monitoring in metalworking applications

SB Operating Principle

This flow sensor uses a spring-supported piston that is lifted by the flowing medium. The piston’s position is detected by a magnetic sensor and output as a binary or analog signal. When the flow decreases, the spring resets the piston to its initial position. This allows the sensor to be installed in any position (horizontal or vertical) and to be used as a check valve.
