IFM SV4000/SV5000/SV7000 Series Inline Vortex Flow Sensor

Deal Score0

2025/7/4 Update

Inline vortex flow sensor for measuring water-based media｜DC Configurable flow and temperature output up to 100 l/min
— New Product! The ifm SV series immersion vortex flow sensor is specially designed for monitoring the flow and temperature of circulating water in industrial applications.

IFM SV4000/SV5000/SV7000 Series Inline Vortex Flow Sensor

Technical Features

Simultaneously monitors flow up to 100 L/min and fluid temperature up to 90°C.

Digital transmission of 2 process values: flow and temperature.

Two-color TFT digital display rotates, making status indication clear at a glance.

Inline installation with rotatable process connection for quick installation.

Optional switch and frequency or dual analog outputs.

The most economical solution for measuring deionized water.

Other features include plug-and-play replacement, real-time configuration file changes, and diagnostic feedback.

Products + Accessories Selection:

Measuring range (flow)	Measuring range (temperature)	Output 1	Output 2	Process connection	Order no.
1…20 l/min	-10…90 °C	PNP/NPN switch or frequency (flow)	PNP/NPN switch or frequency (flow or temperature)	G 1/2 DN8	SV4200
2…40 l/min				G 1/2 DN10	SV5200
5…100 l/min				G 3/4 DN20	SV7200
1…20 l/min	-10…90 °C	4…20 mA adjustable analog (temperature)	4…20 mA adjustable analog (flow)	G 1/2 DN8	SV4204
2…40 l/min				G 1/2 DN10	SV5204
5…100 l/min				G 3/4 DN20	SV7204
1…20 l/min	-10…90 °C	PNP/NPN switch or frequency (flow)	PNP/NPN switch or frequency (flow or temperature)	R 1/2 DN8	SV4500
2…40 l/min				R 1/2 DN10	SV5500
5…100 l/min				R 3/4 DN20	SV7500
1…20 l/min	-10…90 °C	4…20 mA adjustable analog (temperature)	4…20 mA adjustable analog (flow)	R 1/2 DN8	SV4504
2…40 l/min				R 1/2 DN10	SV5504
5…100 l/min				R 3/4 DN20	SV7504

Connecting Cables

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005

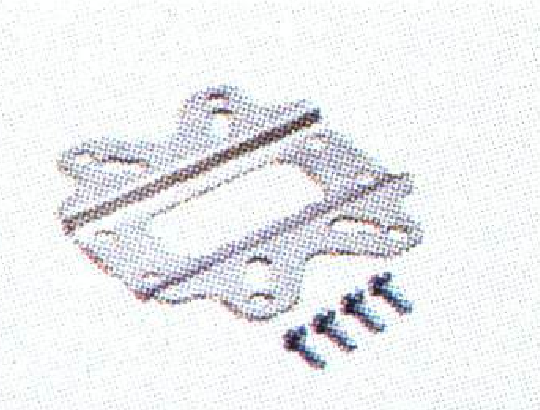

Optional Accessories

Type	Description	Order No.

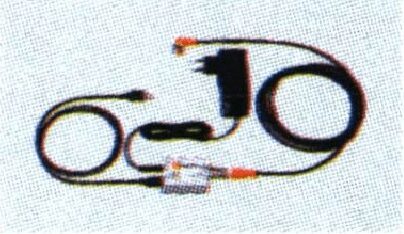

	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390

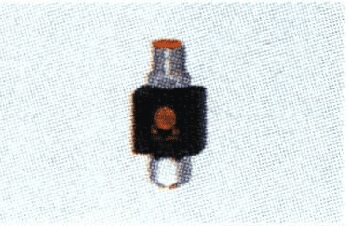

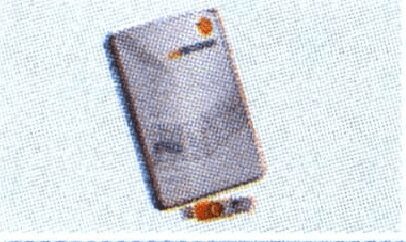

	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Specifications:

Operating voltage: 18…30 V DC
Current consumption: Typical value 25mA
Flow measurement accuracy: 2% of full scale
Temperature monitoring accuracy: 1 °C
Medium temperature: -10…90 °C
Protection class: IP 65 / IP 67
Maximum pressure: 12 bar
Wetted parts: 316L stainless steel, PTFE, PA6T, PPS, FKM

Benefits Introduce In Detail

Vortex Flow Sensor for Water-Based Media Applications

New Product! The ifm SV series immersion vortex flow sensor is specially designed for monitoring the flow and temperature of circulating water in industrial applications.

This flow sensor’s housing is made of durable solid metal and is based on the vortex flow measurement principle. According to the flow velocity, the medium forms vortices on a bluff body (or shedder) integrated into the measuring tube. A piezoceramic element detects these vortices. Since the cross-section of the pipe is known, the vortex parameters can be used to determine the flow rate, unaffected by pressure and temperature fluctuations of the medium. Vortex technology enables a simple sensor design that can be easily manufactured.

At-a-glance Display and Installation Completed in Minutes

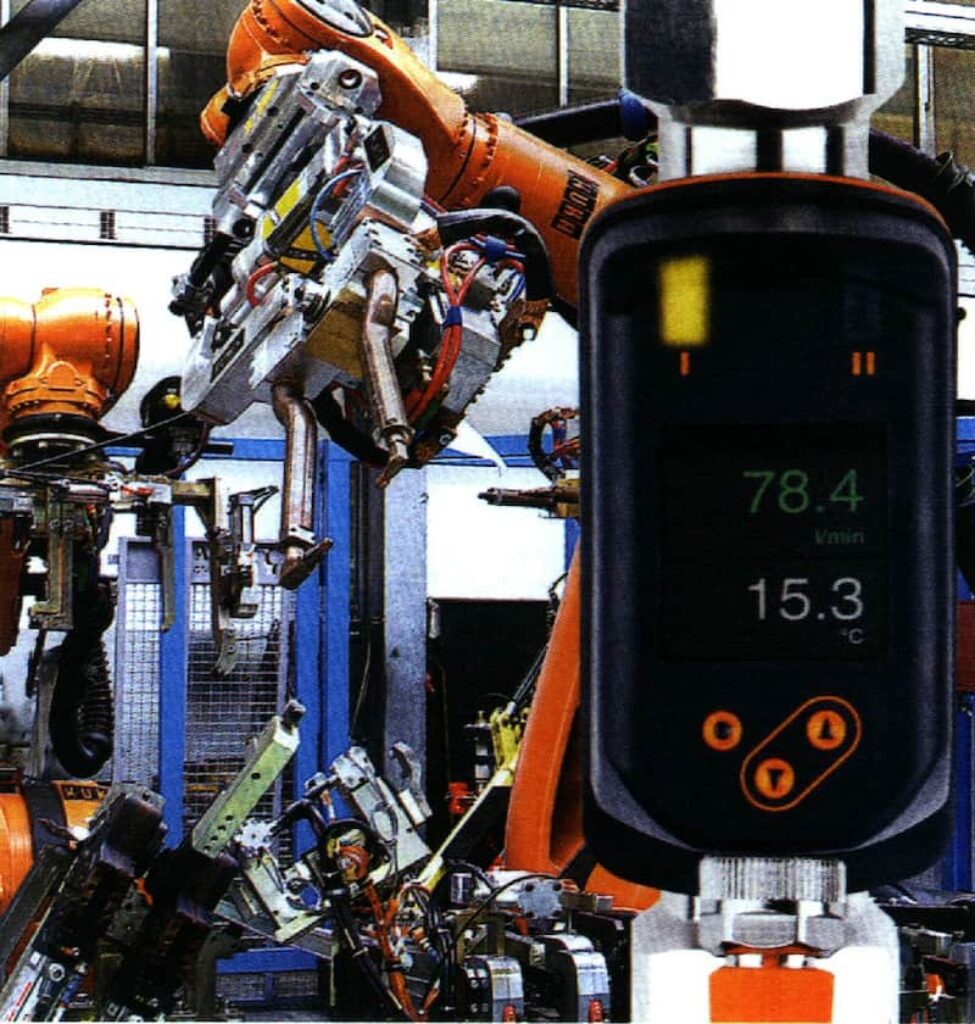

The flow sensor is equipped with a high-contrast customizable TFT LCD display. Setpoints can be easily established through the button menu using scroll and enter keys. The flow sensor can be programmed to provide a switching output (flow and/or temperature), a flow frequency output, or an analog output (flow or temperature).

Combining features that ensure reliability and convenience, the ifm SV series immersion vortex flow sensor offers an excellent price-performance ratio.
