IFM TN Series Temperature Sensor

Deal Score+1

2025/7/4 Update

Independent housing, with display and integrated RTD｜DC Analog and switch output, up to 150 °C
— ifm’s TN series compact process temperature sensors can accurately indicate process temperature.

IFM TN Series Temperature Sensor

RFQ Now For 10% Off!

Technical Features

Easily and quickly set the setpoint and reset point by rotating the adjustment dial.

Uses a space-saving design, with no moving parts that could wear or break.

Bright LEDs indicate switch status and power.

Response time less than 3 seconds.

1 TK switch can be used to replace 2 mechanical switches.

Products + Accessories Selection:

Output	Probe length (mm)	Setpoint range	Adjustable start point	Adjustable end point	Pressure rating (bar)	Process connection	Order no.
4-20 mA / 0-10 V and PNP / NPN N.O. / N.C.	45	-50…150°C	-50…145°C	-45…150°C	300	See required accessories	TN2511
PNP / NPN N.O. / N.C.	45	-50…150°C	–	–	300	See required accessories	TN7511

Required Accessories

Type	Description	Order No.

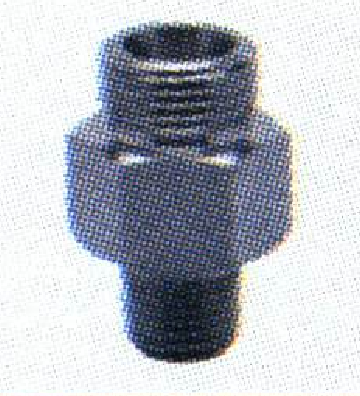

	G1/4 BSPP adapter	E40099
G1/2 BSPP adapter	E40096

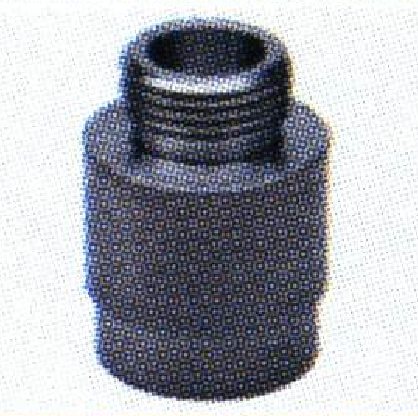

	Welding adapter, carbon steel	E40113
Welding adapter, 316 stainless steel	E40124

Connecting Cables And Optional Accessories

Type	Description	Order No.
	M12 Micro DC (4-pin) 2 m, PUR	EVC001
M12 Micro DC (4-pin) 5 m, PUR	EVC002
M12 Micro DC (4-pin) 10 m, PUR	EVC003
	M12 Micro DC (4-pin) 2 m, PUR	EVC004
M12 Micro DC (4-pin) 5 m, PUR	EVC005
M12 Micro DC (4-pin) 10 m, PUR	EVC006

Optional Accessories

Type	Description	Order No.
	LineRecorder Device, parameter setting software (requires E30390 cable)	QA0011
	USB IO-Link master cable, for parameter setting	E30390
	Memory plug for storing sensor parameters, for easy upload without a computer	E30398

Specifications:

Measuring element: Pt1000, Class A
Response time T05/T09: 1/3 sec
Power supply voltage: 18…32 VDC
Maximum load current: 250 mA
Analog signal accuracy: ± 0.3 °C
Switch point accuracy: ± 0.3 °C
Ambient temperature: -25…80 °C
Wetted parts: 316 stainless steel; FKM O-ring
Protection class: IP67

What‘s More:

Versatile Installation

image 2025 07 28T095004.610 — The rotatable display supports viewing the process temperature from all angles.

Benefits Introduce In Detail

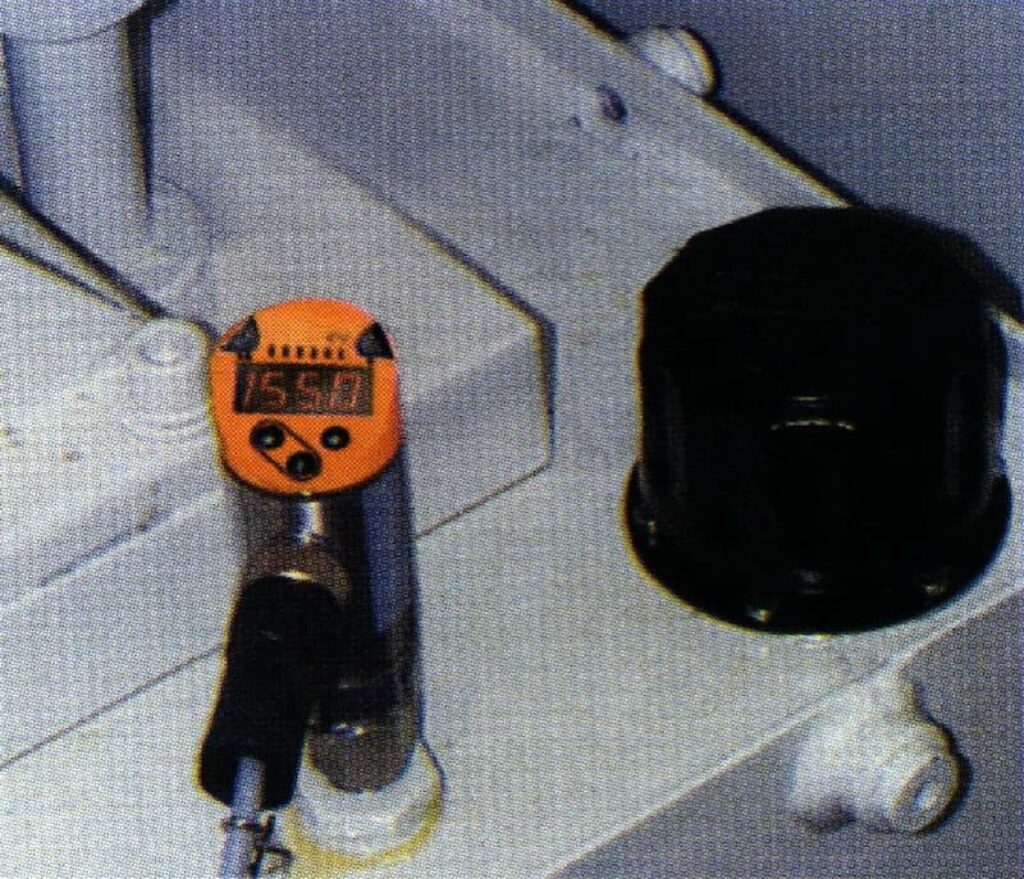

No special accessories needed, in-place installation

ifm’s TN series compact process temperature sensors can accurately indicate process temperature. These sensors are stand-alone devices with integrated control monitors and probes. The robust stainless steel probe is resistant to corrosive media and withstands shock and vibration. It is also equipped with a rotatable display that shows the system temperature.

These models simplify installation on small pipelines that require local temperature indication. The integrated display of the monitor allows the user to view the temperature directly in the process. The robust stainless steel housing can withstand harsh environmental conditions, and installation can be done without an extra housing or control cabinet. With its flexible design, this temperature system can be adapted to most application requirements.

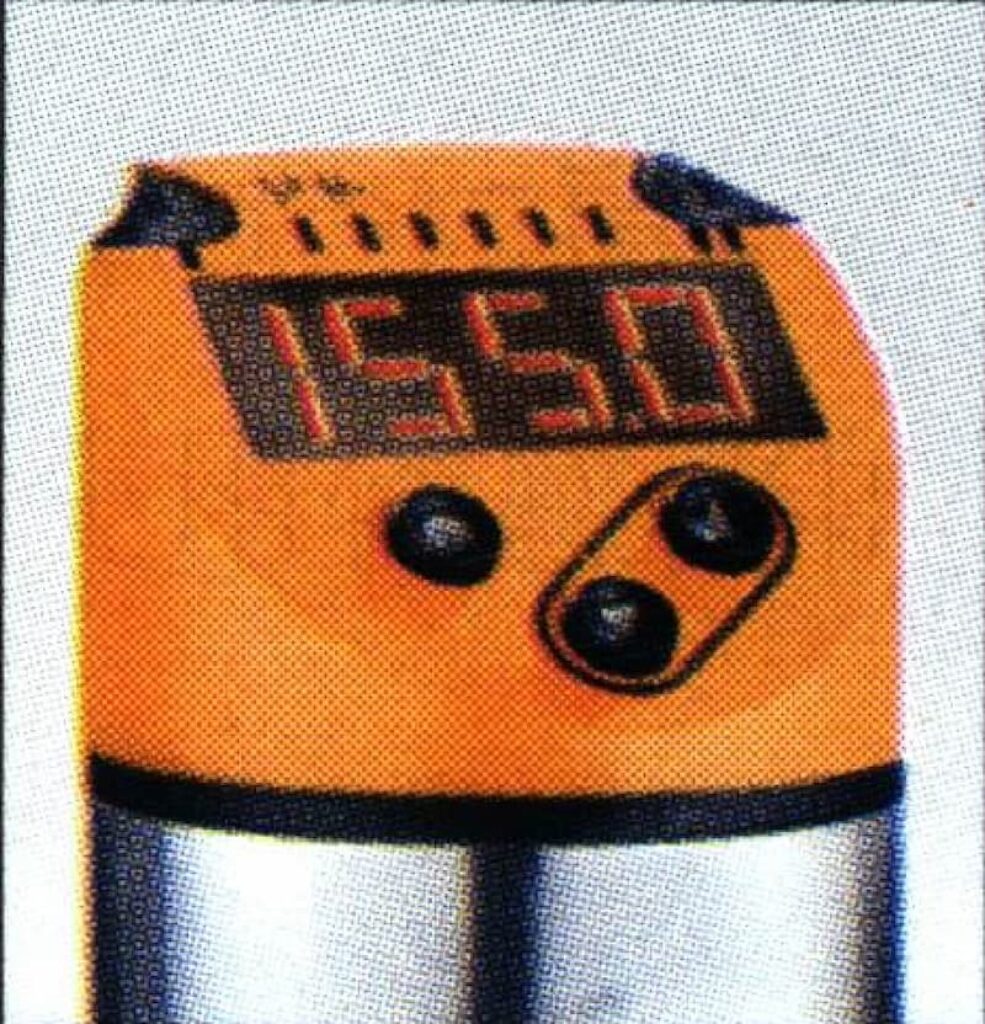

Button programming

By using the microprocessor-based setting buttons, users can access many menus. Two output options are available: models with adjustable analog and switch outputs, and models with dual PNP/NPN outputs. The switch output has an independent setpoint and reset point and can be programmed as normally open or normally closed.
